| Product Capacity: | |
|---|---|
| Application: | |
| Mold Material: | |
| Insert Material: | |
| Mold Cavity: | |
| Cooling System: | |
| Machine Matching: | |
| Quantity: | |
dawson
Cooling performance is one of the most important factors in 20–60L extrusion blow molding because larger containers retain more heat and normally require longer cooling than small bottles. A well-designed mold should not only form the product shape correctly, but also remove heat efficiently and evenly during every production cycle.

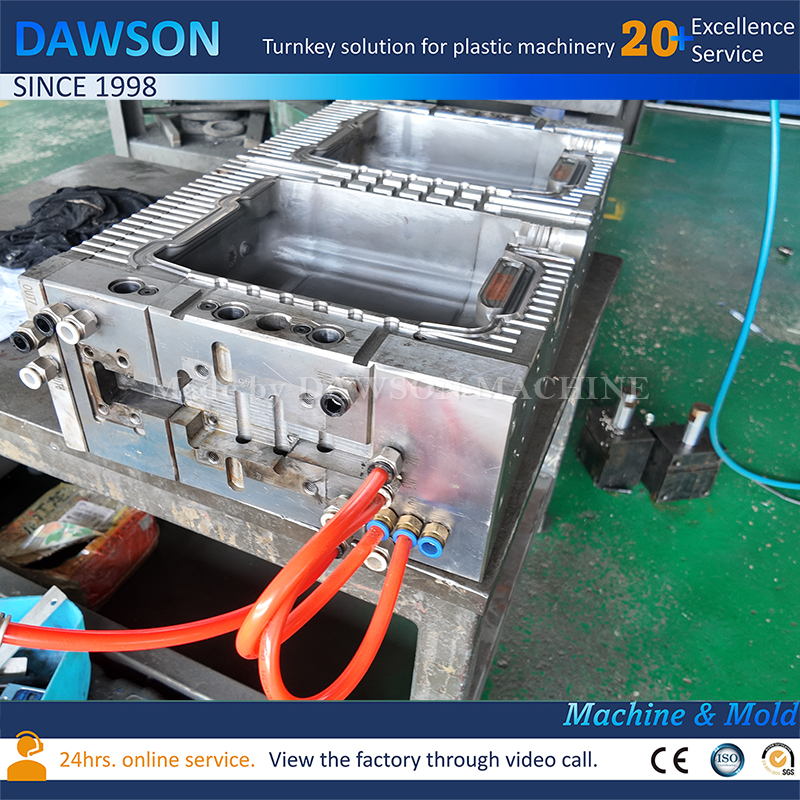

Our custom blow molding molds are designed with cooling channel layout based on product geometry, wall thickness, handle structure, bottom area and other heat-concentrated sections. Balanced cooling helps reduce deformation, improve dimensional stability and support more consistent container quality during continuous production. For projects requiring higher cooling efficiency, 7075 aluminum can be selected because of its strong thermal conductivity. Beryllium copper inserts may also be added in specific areas where faster heat transfer is needed.
Cooling design must also match the customer’s machine, water supply, target cycle time and production output. An aggressive cooling design that does not match the factory conditions may not deliver the expected result, so we evaluate the complete production environment before finalizing the mold structure.

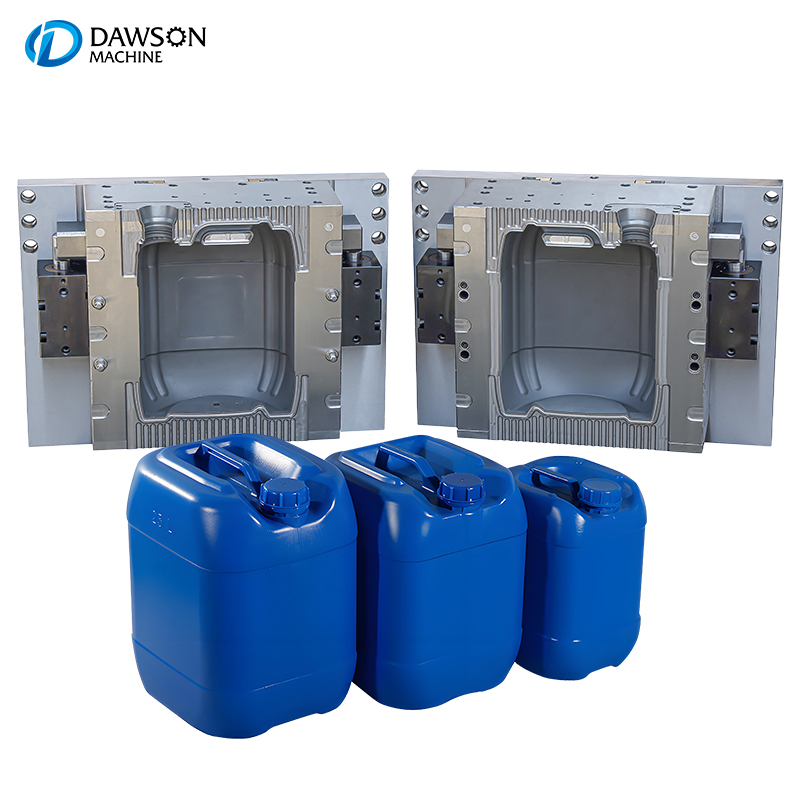

For 20–60L jerry cans, chemical containers, oil containers and large storage packaging, proper cooling can help support shorter cycle time, stable forming and more predictable mass production. Send us your product drawing and target output, and we can recommend a mold and cooling solution for your project.
CUSTOM MOLD FOR YOUR PRODUCT
Engineered for 20-60L jerry cans and drums, combining durable construction with stable molding performance for continuous production.
Send Us Your Bottle Sample or Drawing for a Custom Solution.
About mould material:
Steel S50C#: Basic material for blowing moulds, competitive price
Steel P20#: Common blow moulding mould material, medium quality
2316 stainless steel: High quality mould material stainless steel.
S136H : High quality blow molding steel, very durable and strong.

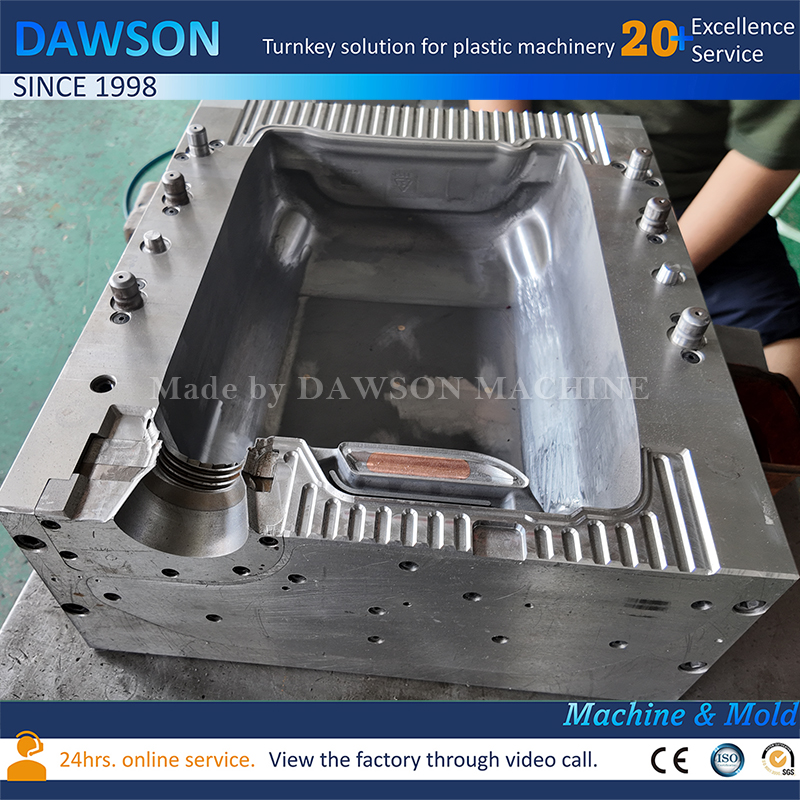

Aluminium 7075# inserted beryllium copper: the best blow molding mould material, aluminium mould has good cooling, and beryllium copper is very durable as well.
