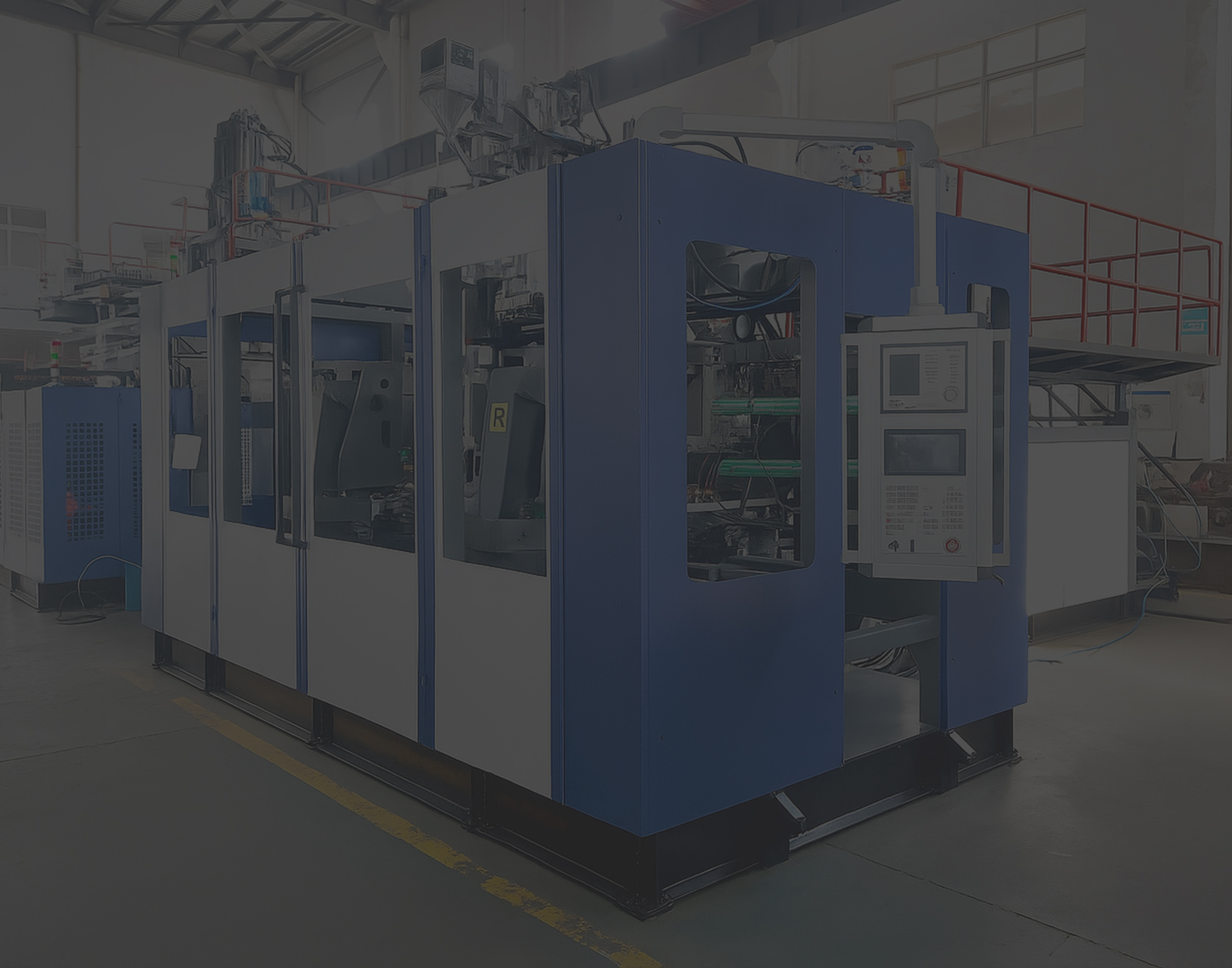

Our HDPE Extrusion Blow Molding Machine is designed for producing plastic bottles, jars, small containers, and jerrycans from 50ml to 5 liters. It features advanced extrusion technology and precision craftsmanship to ensure consistent quality across various applications. The bilingual operation panel allows easy control without language barriers, while automatic configurations from renowned brands guarantee stability and reliability. With simple settings, users can achieve high automation, reduce labor costs, and boost production efficiency. Ideal for packaging needs in food, cosmetics, pharmaceuticals, and chemical industries, it’s a versatile solution for seamless container manufacturing.

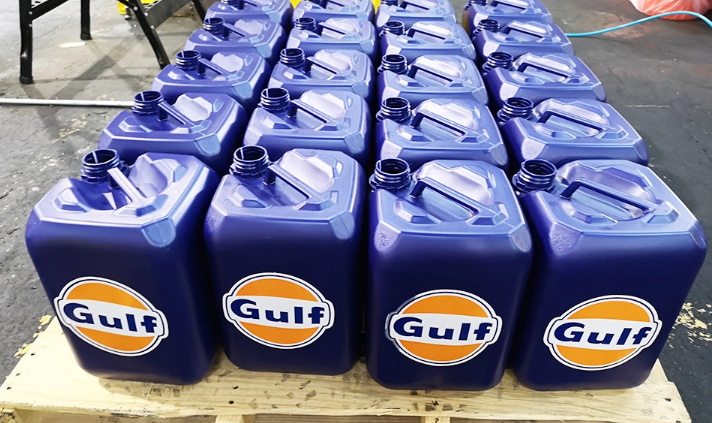

Lube Oil Jerry Can

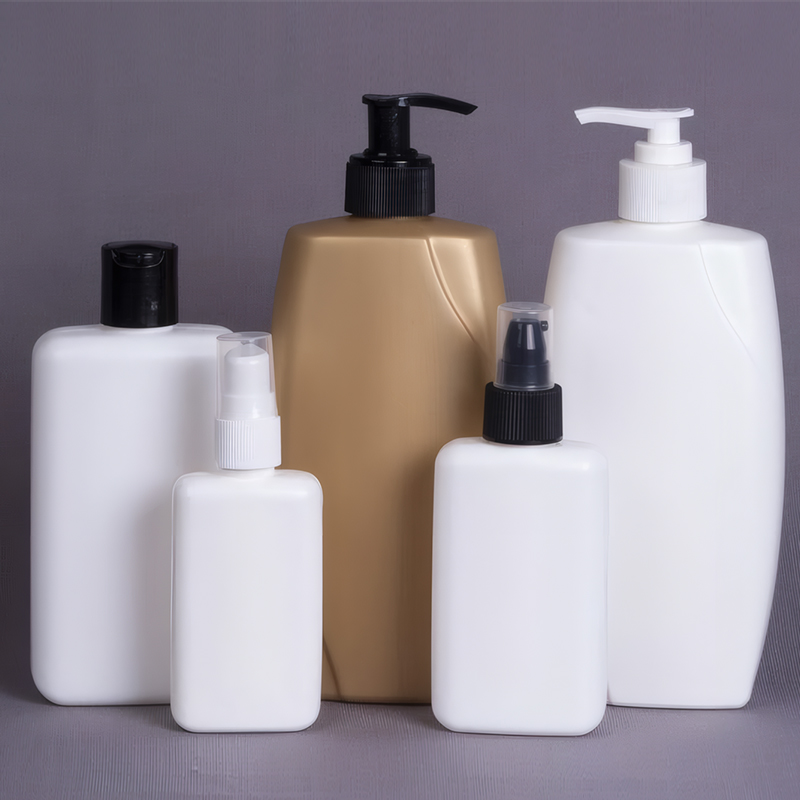

Daily chemical packaging

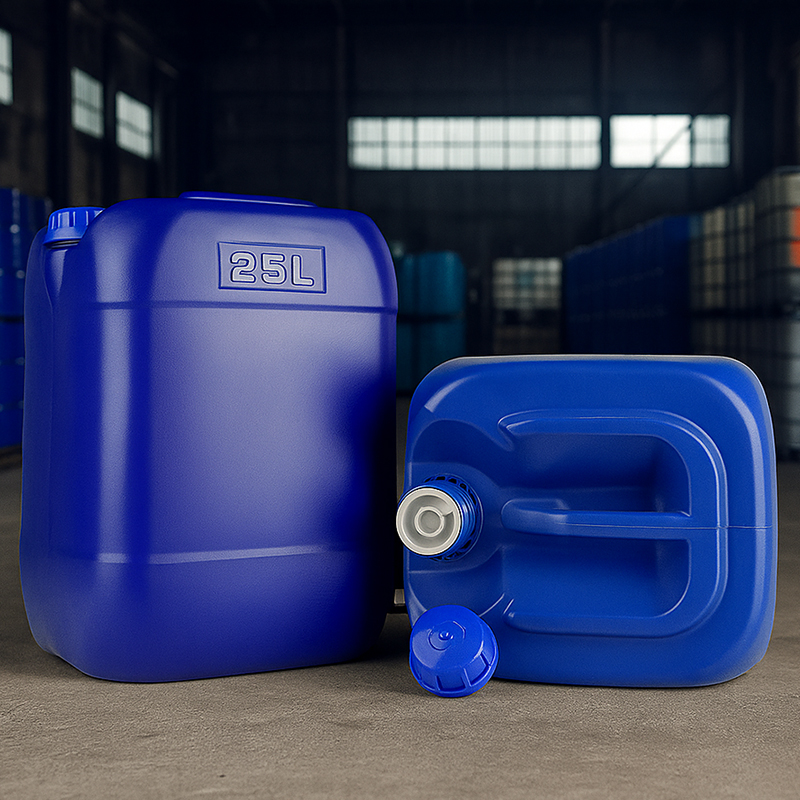

Jerry can
Sea Ball
Hot Product
Specification
| Name | Units | ABLB65II | ABLB75II | Name | Units | ABLB65II | ABLB75II | Name |
| Max.product volume | L | 3.5 | 8 | Max.product volume | L | 3.5 | 8 | Max.product volume |
| Screw diameter | MM | 65 | 75 | Screw diameter | MM | 65 | 75 | Screw diameter |
| Screw drive power | KW | 18.5 | 22 | Screw drive power | KW | 18.5 | 22 | Screw drive power |
| Output of HDPE | KG/H | 75 | 100 | Output of HDPE | KG/H | 75 | 100 | Output of HDPE |
| Oil pump drive power | KW | 7.5 | 7.5 | Oil pump drive power | KW | 7.5 | 7.5 | Oil pump drive power |
| Clamping force | KN | 65 | 80 | Clamping force | KN | 65 | 80 | Clamping force |
| Max.size of mold | MM | 320×350 | 400×430 | Max.size of mold | MM | 320×350 | 400×430 | Max.size of mold |
| Template size | MM | 290×320 | 380×420 | Template size | MM | 290×320 | 380×420 | Template size |
| Mold stroke | MM | 150-500 | 170-520 | Mold stroke | MM | 150-500 | 170-520 | Mold stroke |
| Max.die diameter | MM | 170 | 170 | Max.die diameter | MM | 170 | 170 | Max.die diameter |
| Size of machine | L×W×H | 3.9×2.2×2.6 | 4.2×2.2×2.7 | Size of machine | L×W×H | 3.9×2.2×2.6 | 4.2×2.2×2.7 | Size of machine |
| Weight of machine | TON | 6.5 | 7.5 | Weight of machine | TON | 6.5 | 7.5 | Weight of machine |
