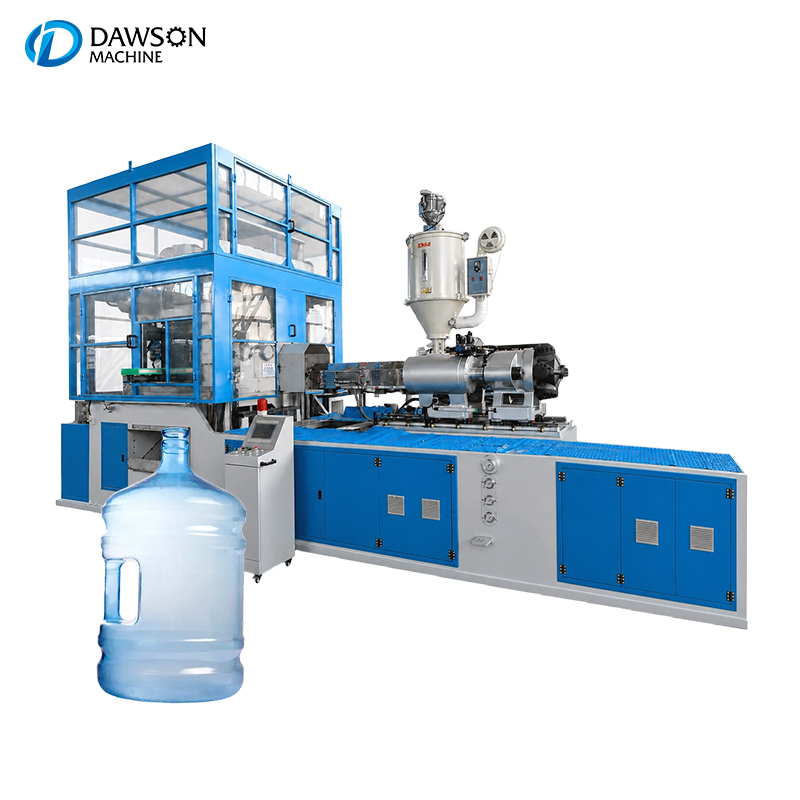

High Clarity and Stable Performance One Step Injection Stretch Blow Molding Machine for 5 Gallon PC Bottles

SCREW DIAMETER:	50 MM
SCREW L/D RATIO:	20.5:1
SCREW SPEED:	0-150 R/MIN
THEORETICAL INJECTION WEIGHT:	481 G
INJECTION PRESSURE:	176 Mpa
MAX. HYDRAULIC PRESSURE:	140 Mpa
BLOW CLAMPING FORCE:	150 KN
Availability:

Quantity:



Inquire Add to Basket

Brand:
DAWSON

Product Description

Established factories looking to upgrade to the latest technology for better process control.

The future of 5-gallon PC bottle manufacturing lies in precision engineering and intelligent process control. Our One-Step ISBM system represents the pinnacle of injection stretch blow molding technology, featuring a highly synchronized three-station or four-station configuration. The process begins with the molten PC material being injected into a precision-engineered mold cavity to form a preform with micron-level accuracy. This preform then moves immediately to a temperature-conditioning station, where specialized heating elements balance the thermal profile of each section to ensure optimal stretching characteristics. The final stage utilizes high-pressure air and mechanical stretching rods to expand the preform into its final shape with perfect symmetry and structural integrity. This closed-loop control system ensures that every bottle produced meets the highest standards of consistency, significantly reducing reject rates and material waste. By adopting our state-of-the-art ISBM technology, you are not just buying a machine; you are integrating an advanced manufacturing platform that ensures long-term stability and technological leadership in the plastic packaging sector.

	Parameter	Unit	Data
Basic Specifications	Material Used	PC	PC
	Max. Product Volume	L	18.9
	Machine Dimensions (LWH)	m	7.52.44.0
	Machine Weight	t	22
Injection System	Screw Diameter	mm	75
	Screw L/D Ratio	-	22:1
	Screw Speed	rev/min	0-80
	Plasticizing Capacity	kg/h	80
	Number of Heating Zones	-	4
	Barrel Heating Power	KW	23.6
Clamping Unit	Effective Platen Size (W*H)	mm	760*610
	Mold Height	mm	340-828
	Clamping Force	KN	340
HydraulicSystem	Hydraulic Pump Motor Power	KW	47.2*3
Water Suppl	Water Pressure	MPa	0.3-0.5
PowerSupply	Voltage	V	AC380V
	Frequency	Hz	50Hz
	Phase	-	3 Phase 5 Wire
	Total Installed Powe	KW	160
	Average Energy Consumption	KWH	60
Air System	Air Source Pressure	MPa	1.0-1.2
	Working Air Pressure	MPa	7-9
	Air Consumption	m³/min	0.8
