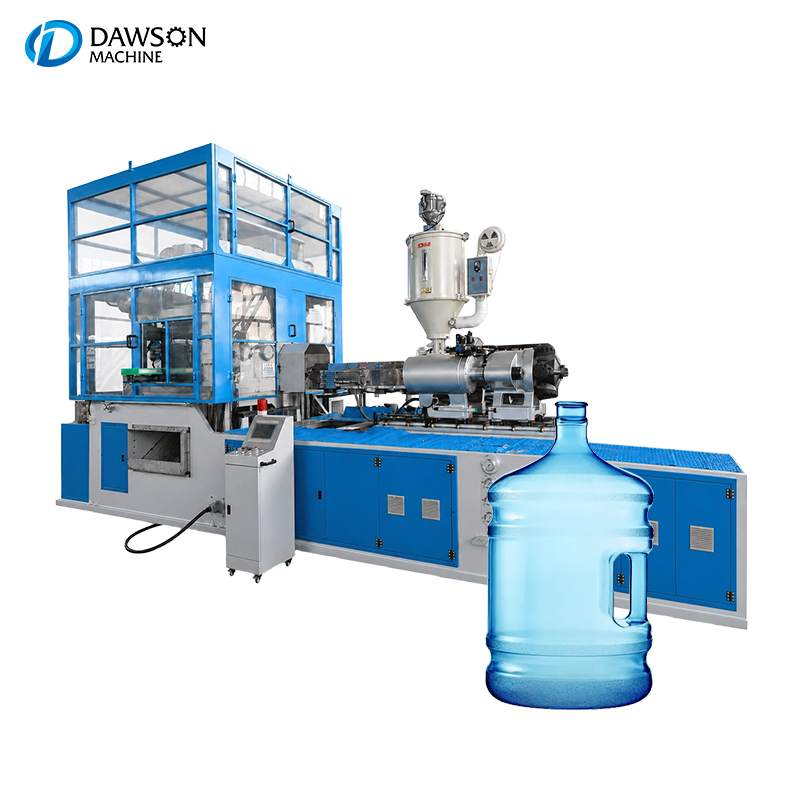

Full Automatic 5 Gallon PC Bottle Machine Injection Stretch Blow Molding Machine for Refillable 5 Gallon Bottle Plant

This machine has three stations, injection preform, blowing & stretch and product release.

SCREW DIAMETER:	50 MM
SCREW L/D RATIO:	20.5:1
SCREW SPEED:	0-150 R/MIN
THEORETICAL INJECTION WEIGHT:	481 G
INJECTION PRESSURE:	176 Mpa
MAX. HYDRAULIC PRESSURE:	140 Mpa
BLOW CLAMPING FORCE:	150 KN
Availability:

Quantity:



Inquire Add to Basket

Product Description

Manufacturers looking to reduce overhead and improve their bottom line through operational efficiency

Maximizing profitability in the large-volume water industry requires a strategic focus on reducing production costs without compromising on output quality. Our One-Step ISBM machine for 5-gallon PC bottles is designed with a core philosophy of energy efficiency and resource optimization. By utilizing the residual heat from the injection molding stage for the subsequent stretch-blowing process, the system significantly reduces the electricity consumption required for secondary reheating. This integrated thermal management, combined with high-performance servo-driven motors, allows manufacturers to achieve up to 30% energy savings compared to conventional systems. Furthermore, the one-step process minimizes labor costs and factory floor space requirements by consolidating multiple production stages into a single, compact footprint. With lower maintenance needs and a high-speed production cycle, our solution provides a rapid return on investment (ROI), enabling you to maintain a competitive edge in the market by delivering high-quality 5-gallon bottles at a significantly lower cost per unit.

	Parameter	Unit	Data
Basic Specifications	Material Used	PC	PC
	Max. Product Volume	L	18.9
	Machine Dimensions (LWH)	m	7.52.44.0
	Machine Weight	t	22
Injection System	Screw Diameter	mm	75
	Screw L/D Ratio	-	22:1
	Screw Speed	rev/min	0-80
	Plasticizing Capacity	kg/h	80
	Number of Heating Zones	-	4
	Barrel Heating Power	KW	23.6
Clamping Unit	Effective Platen Size (W*H)	mm	760*610
	Mold Height	mm	340-828
	Clamping Force	KN	340
HydraulicSystem	Hydraulic Pump Motor Power	KW	47.2*3
Water Suppl	Water Pressure	MPa	0.3-0.5
PowerSupply	Voltage	V	AC380V
	Frequency	Hz	50Hz
	Phase	-	3 Phase 5 Wire
	Total Installed Powe	KW	160
	Average Energy Consumption	KWH	60
Air System	Air Source Pressure	MPa	1.0-1.2
	Working Air Pressure	MPa	7-9
	Air Consumption	m³/min	0.8
