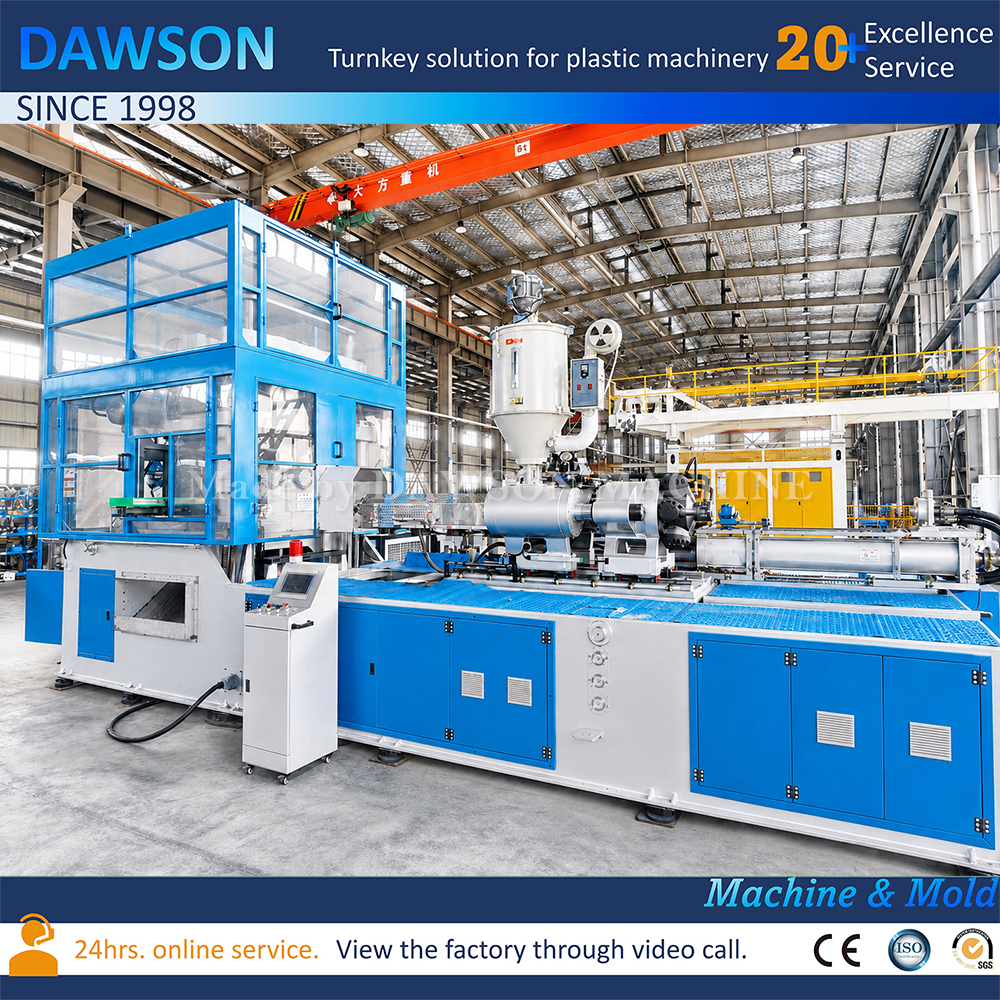

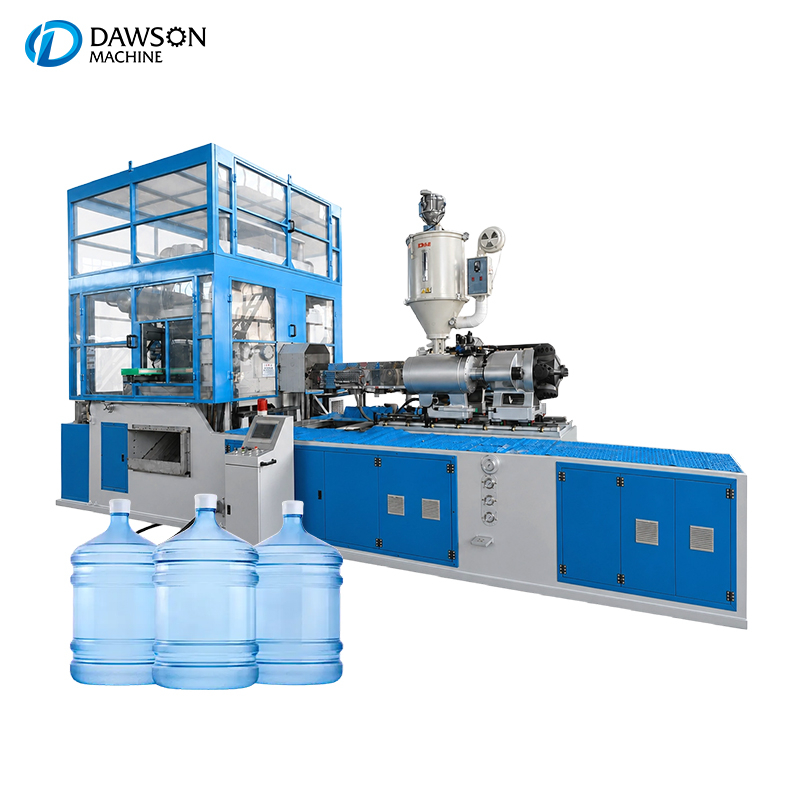

Customized 5 Gallon Bottles Blow Molding Machines PC Bottle Machine Injection Stretch Blow Molding Machines for PC Container ISBM Solution

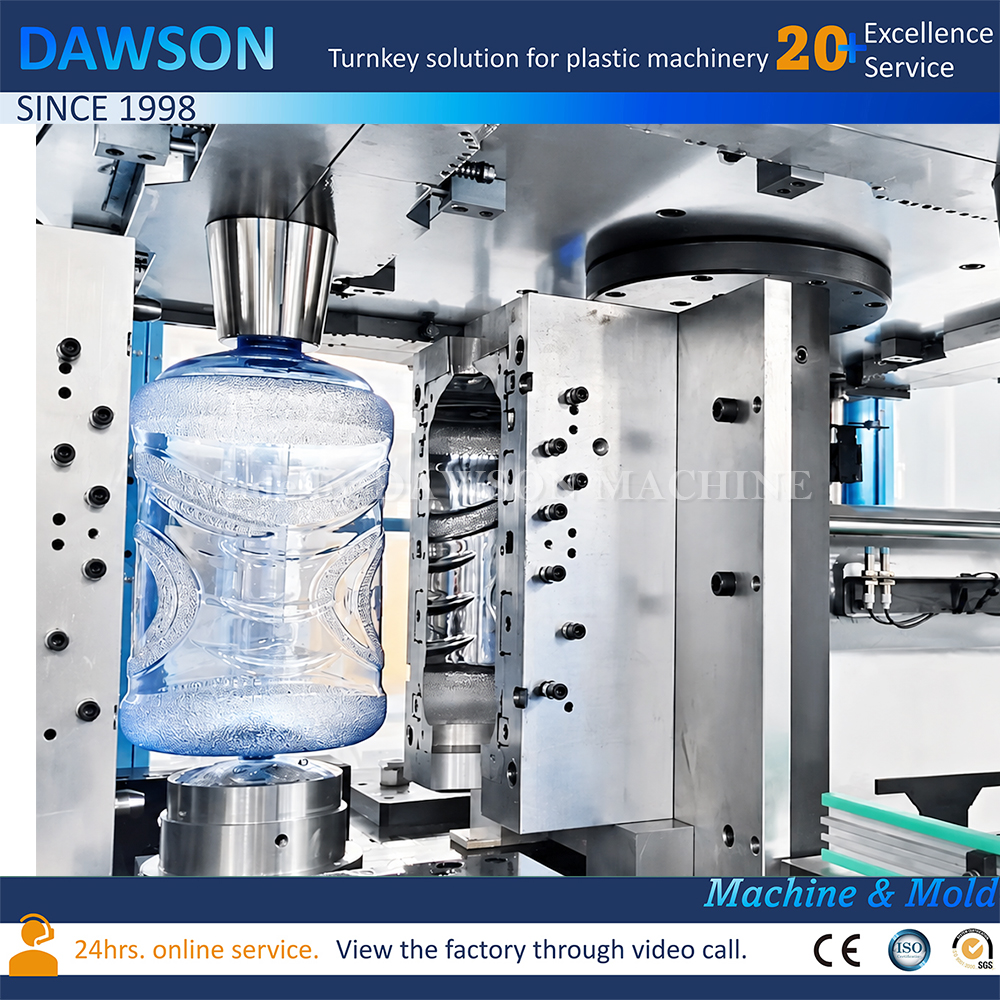

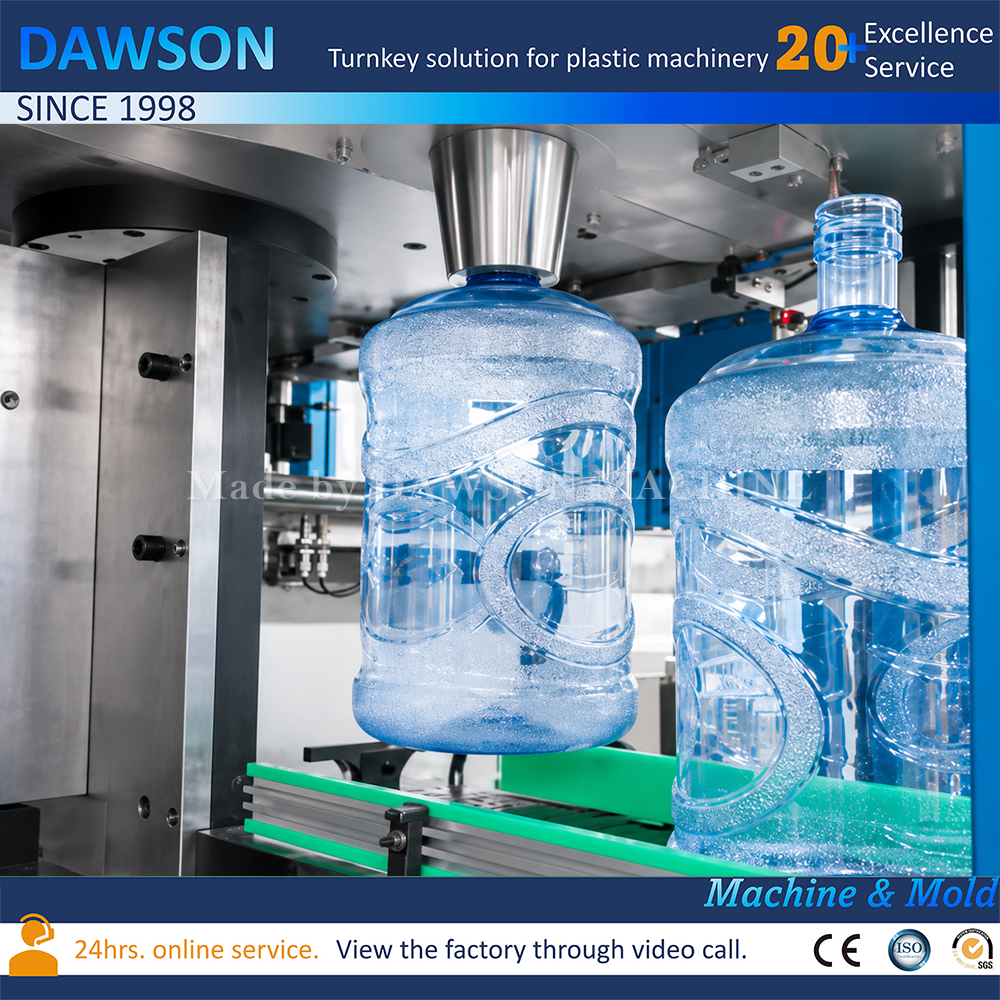

This machine has three stations, injection preform, blowing & stretch and product release.

SCREW DIAMETER:	50 MM
SCREW L/D RATIO:	20.5:1
SCREW SPEED:	0-150 R/MIN
THEORETICAL INJECTION WEIGHT:	481 G
INJECTION PRESSURE:	176 Mpa
MAX. HYDRAULIC PRESSURE:	140 Mpa
BLOW CLAMPING FORCE:	150 KN
Availability:

Quantity:



Inquire Add to Basket

Product Description

High-end water brands that prioritize the visual appeal and transparency of their bottles.

In the competitive bottled water market, the visual presentation of your 5-gallon PC containers can be the deciding factor for consumer trust. Our advanced One-Step Injection Stretch Blow Molding (ISBM) technology is specifically engineered to deliver unparalleled clarity and a glass-like finish that traditional two-step processes simply cannot match. By integrating the injection of the preform and the stretch-blowing process into a single, continuous cycle, we eliminate the need for preform storage and manual handling. This critical innovation prevents surface scratches, dust contamination, and moisture absorption that typically occur during transport, ensuring every bottle emerges with a flawless, crystal-clear surface. Beyond aesthetics, the precision of our one-step mold cavity ensures uniform wall thickness and a robust structure, providing the high-strength durability required for repeated refills. Invest in a solution that reflects the purity of your water through the premium quality of your packaging, setting a new standard for excellence in the 5-gallon industry.

	Parameter	Unit	Data
Basic Specifications	Material Used	PC	PC
	Max. Product Volume	L	18.9
	Machine Dimensions (LWH)	m	7.52.44.0
	Machine Weight	t	22
Injection System	Screw Diameter	mm	75
	Screw L/D Ratio	-	22:1
	Screw Speed	rev/min	0-80
	Plasticizing Capacity	kg/h	80
	Number of Heating Zones	-	4
	Barrel Heating Power	KW	23.6
Clamping Unit	Effective Platen Size (W*H)	mm	760*610
	Mold Height	mm	340-828
	Clamping Force	KN	340
HydraulicSystem	Hydraulic Pump Motor Power	KW	47.2*3
Water Suppl	Water Pressure	MPa	0.3-0.5
PowerSupply	Voltage	V	AC380V
	Frequency	Hz	50Hz
	Phase	-	3 Phase 5 Wire
	Total Installed Powe	KW	160
	Average Energy Consumption	KWH	60
Air System	Air Source Pressure	MPa	1.0-1.2
	Working Air Pressure	MPa	7-9
	Air Consumption	m³/min	0.8
