| Maximum Application Size: | |
|---|---|
| Output capacity: | |
| Plasticization: | |
| Weigh: | |
| Labor demand: | |
| Heatingpower: | |
| HeatingZone: | |
| Quantity: | |

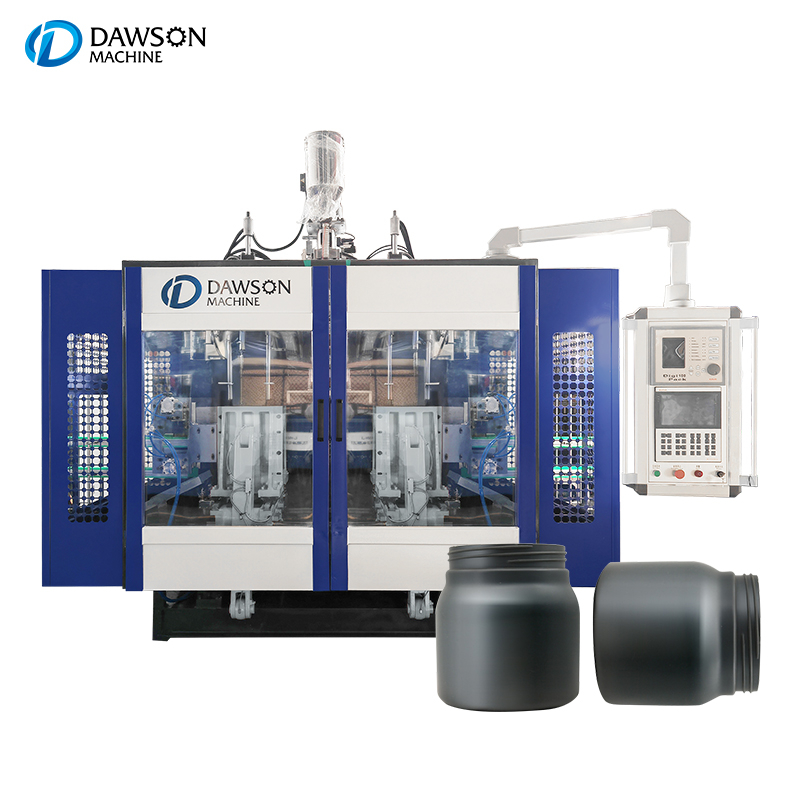

DSB70-II
DAWSON
| Basic parameters | Maxvolume | 1L-5L(Single head) |
| Output capacity | 200~250pcs/h | |
| Size | 3.8×2.3×2.5(M) | |
| Weigh | 6.5T |
| Plasticizion system | Summarize | High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature | |
| Reducer | Material of Gear box body: HT200 Material of gear: ZG35CrMo Material of bearing: 42CrMo Heat treatment of Gear: Quenching | Brand:GUOMAO (ThebestGearbox supplierinChina) | |
| Screw | ∮70mm,L/D ratio 25/1, Material: 38CrMoALA Nitriding heat-treatment Cooling by cooling Fan | Cooling system available | |
| Plasticization | 70~90Kg/H | HDPE | |
| HeatingZone | 3-4 Aluminum Heater | Automatic heating | |
| Heatingpower | 13.5KW/H | ||
| ExtrusionMotor | Three phasea synchronous motor (380V,50HZ)22KW | Brand: W&N | |
| CoolingFan | 3-4zone | Automatic cooling | |
| Basic parameters | Maxvolume | 1L-5L(Single head) |
| Output capacity | 200~250pcs/h | |
| Size | 3.8×2.3×2.5(M) | |
| Weigh | 6.5T |
| Plasticizion system | Summarize | High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature | |
| Reducer | Material of Gear box body: HT200 Material of gear: ZG35CrMo Material of bearing: 42CrMo Heat treatment of Gear: Quenching | Brand:GUOMAO (ThebestGearbox supplierinChina) | |
| Screw | ∮70mm,L/D ratio 25/1, Material: 38CrMoALA Nitriding heat-treatment Cooling by cooling Fan | Cooling system available | |
| Plasticization | 70~90Kg/H | HDPE | |
| HeatingZone | 3-4 Aluminum Heater | Automatic heating | |
| Heatingpower | 13.5KW/H | ||
| ExtrusionMotor | Three phasea synchronous motor (380V,50HZ)22KW | Brand: W&N | |
| CoolingFan | 3-4zone | Automatic cooling | |
