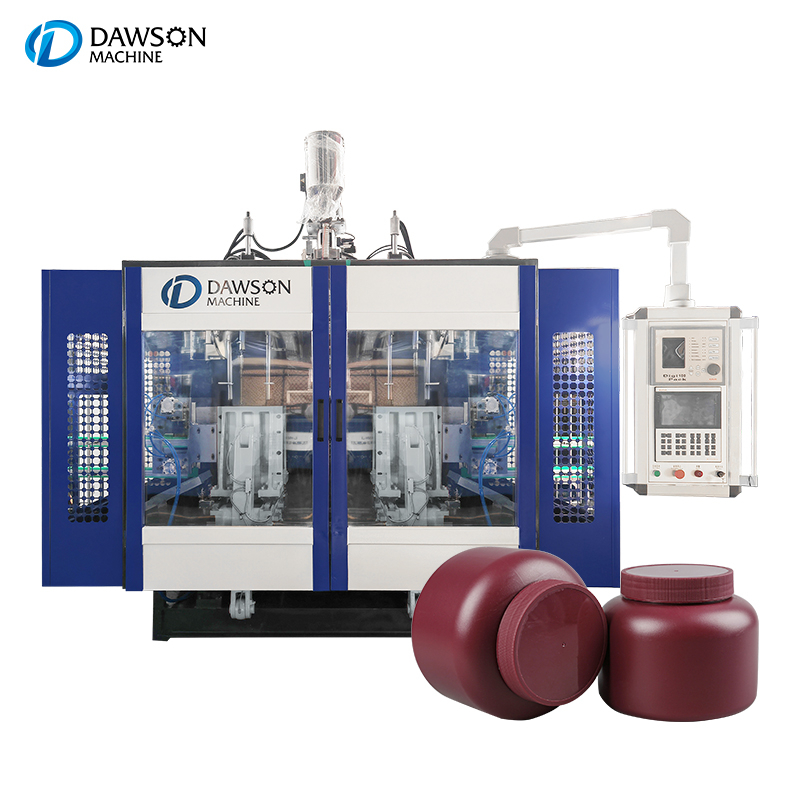

DSB70-II
DAWSON
| Plasticizion system | Summarize | High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature | |
| Reducer | Material of Gear box body: HT200 Material of gear: ZG35CrMo Material of bearing: 42CrMo Heat treatment of Gear: Quenching | Brand:GUOMAO (ThebestGearbox supplierinChina) | |
| Screw | ∮70mm,L/D ratio 25/1, Material: 38CrMoALA Nitriding heat-treatment Cooling by cooling Fan | Cooling system available | |
| Plasticization | 70~90Kg/H | HDPE | |
| HeatingZone | 3-4 Aluminum Heater | Automatic heating | |
| Heatingpower | 13.5KW/H | ||
| ExtrusionMotor | Three phasea synchronous motor (380V,50HZ)22KW | Brand: W&N | |
| CoolingFan | 3-4zone | Automatic cooling | |
With the upgrading of the plastic packaging industry, the demand for high-quality, multi-specification wide mouth containers is increasing. The DSB70-II, developed with advanced extrusion blow molding technology, provides integrated production support, solves traditional pain points (difficult molding, high defect rate, poor adaptability), and becomes a reliable partner for enterprise upgrading.

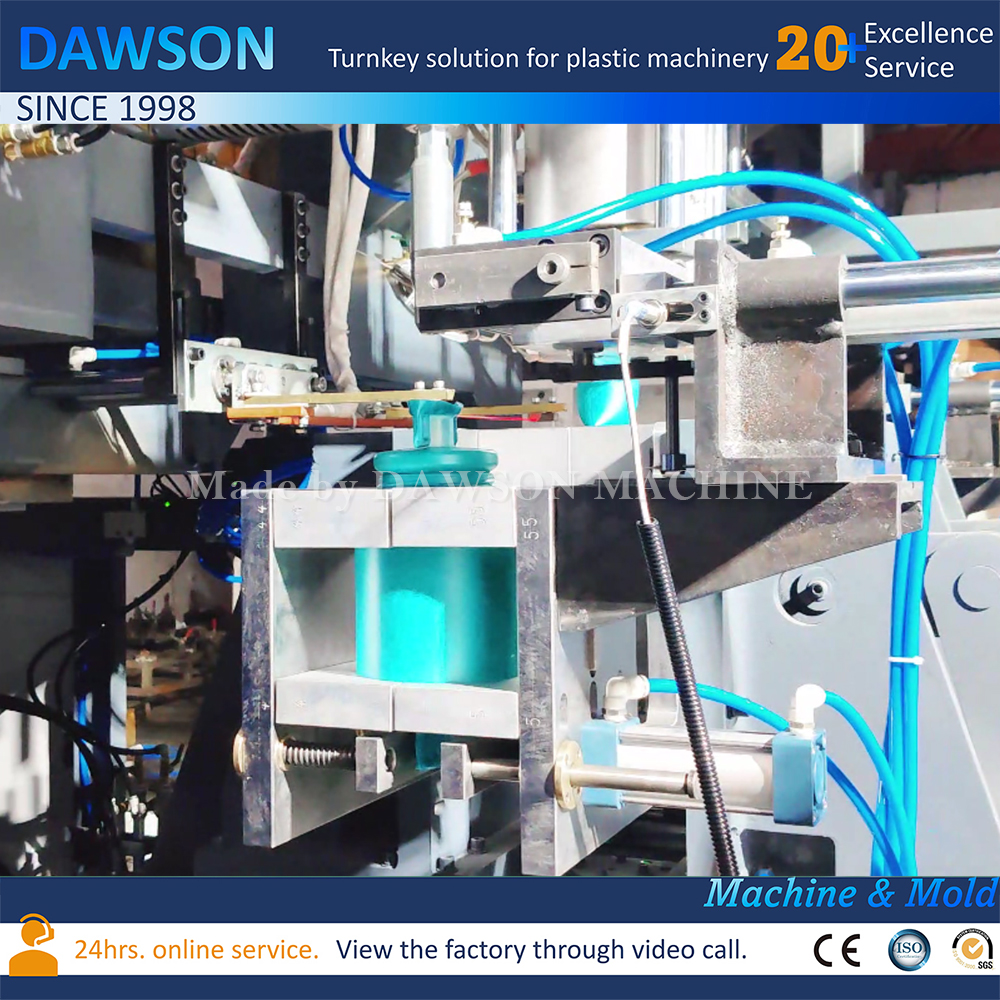

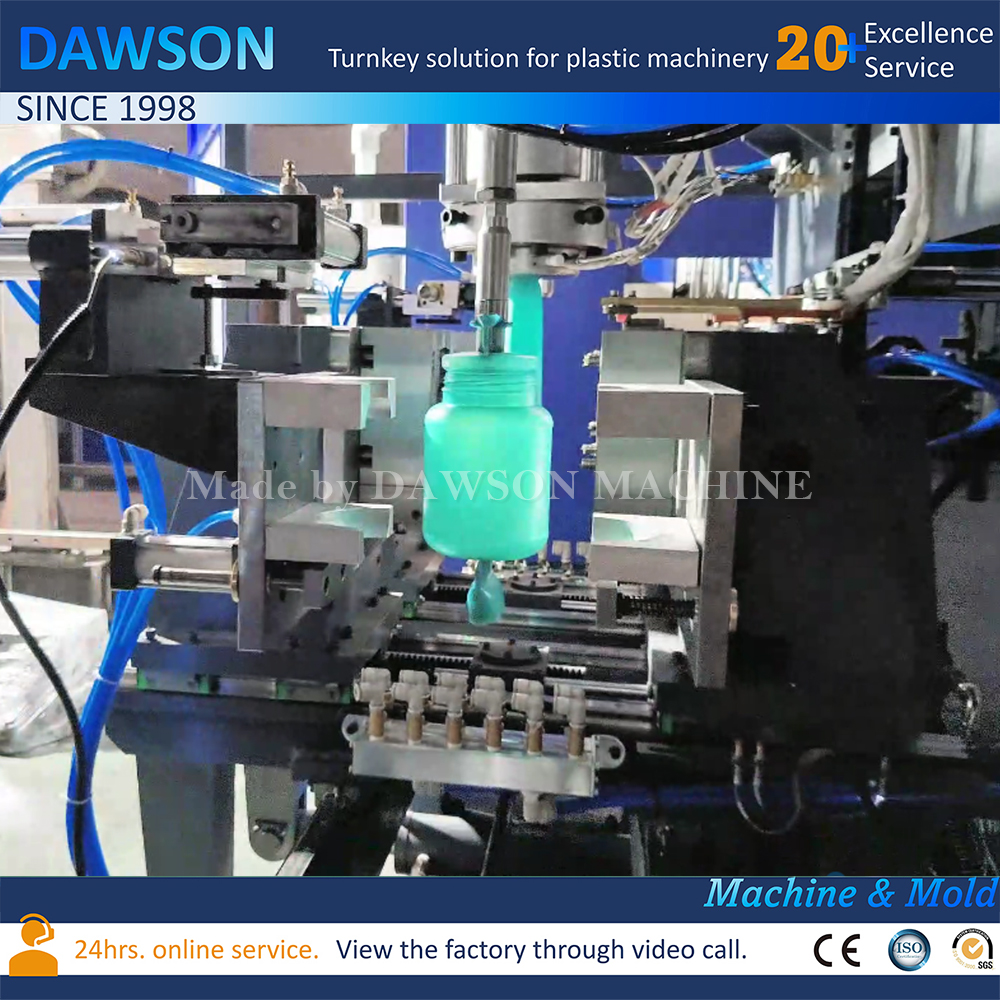

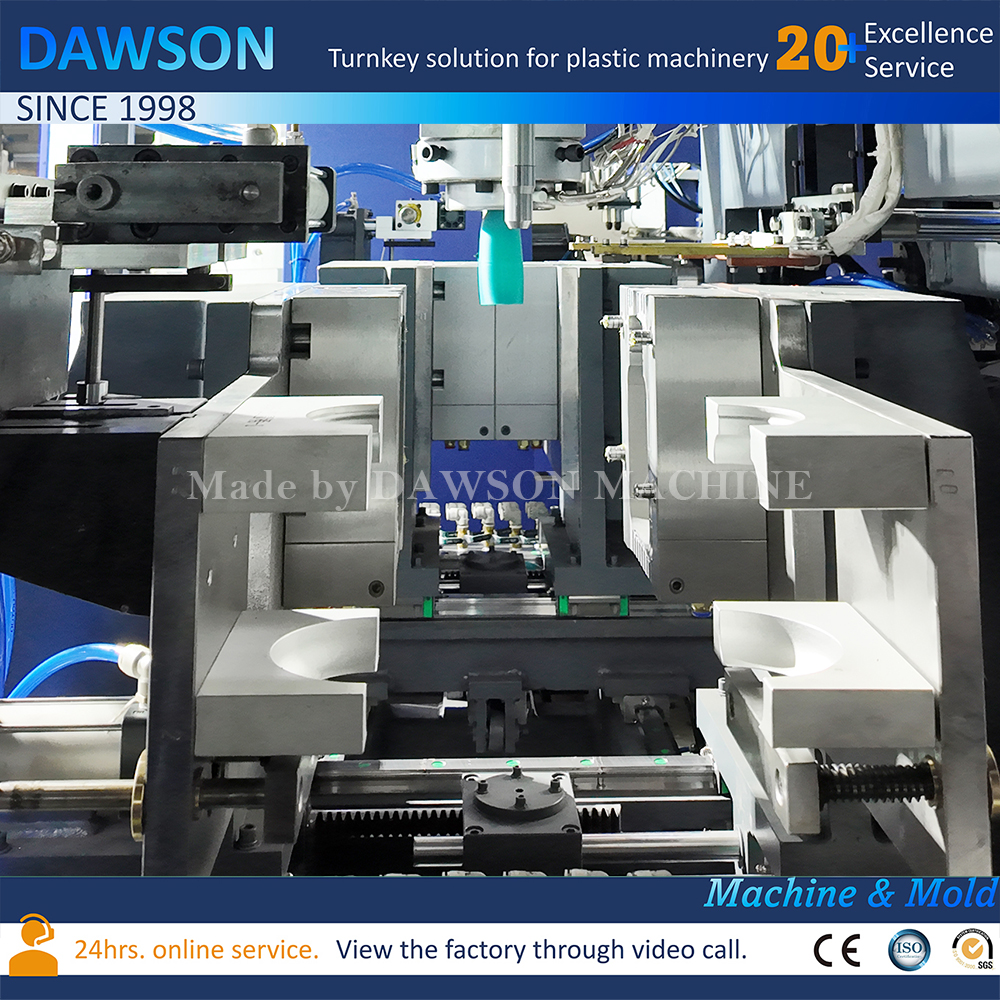

Structurally optimized, it has a split die head for easy cleaning and maintenance, avoiding material blockage. The nitrided alloy steel screw ensures uniform plasticization, and the four-column guided clamping mechanism enhances precision and prevents deformation.
It is compatible with HDPE, LDPE, PP and PVC, producing 0.5L-5L wide mouth containers (50-200mm caliber). Suitable for food, chemical and daily chemical containers, it achieves a 99% product qualification rate.
Focused on energy conservation and cost reduction, it adopts a frequency conversion motor and high-efficiency barrel insulation, cutting unit product energy consumption by over 20% for enterprises.
We provide comprehensive after-sales support: strict factory tests, free on-site installation, commissioning, training, and 24-hour technical support to ensure stable production line operation.
Integrating intelligence, efficiency, stability and energy conservation, the DSB70-II is widely used in food, daily chemicals and other fields, helping enterprises improve efficiency, optimize quality and reduce costs. Choosing it means choosing a worry-free production solution.
