DSB70-II
DAWSON

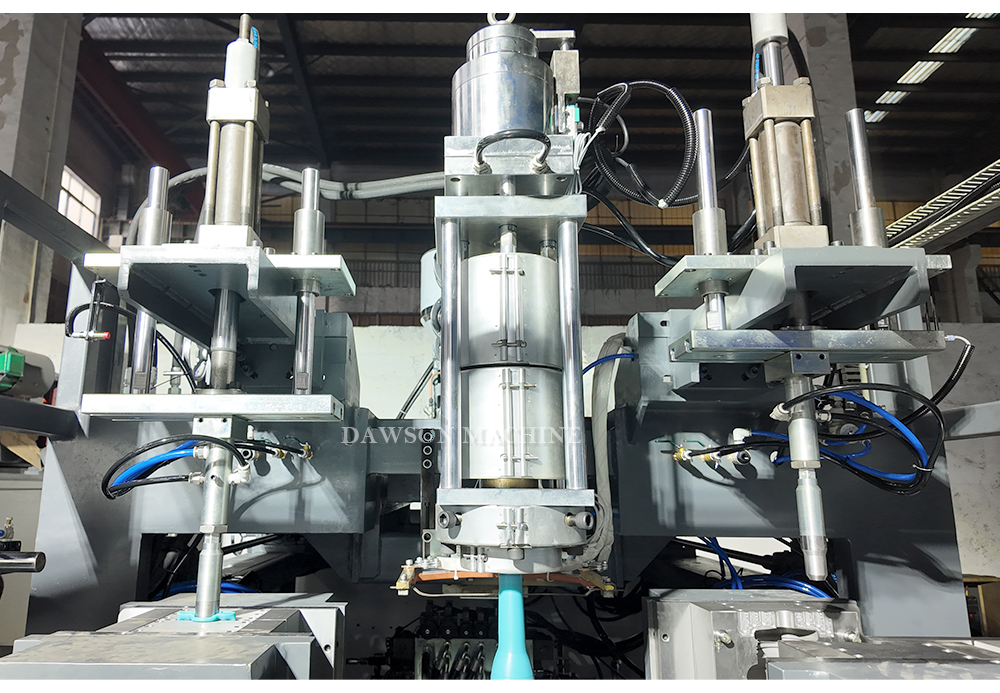

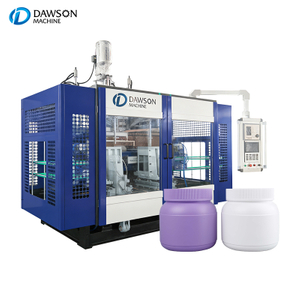

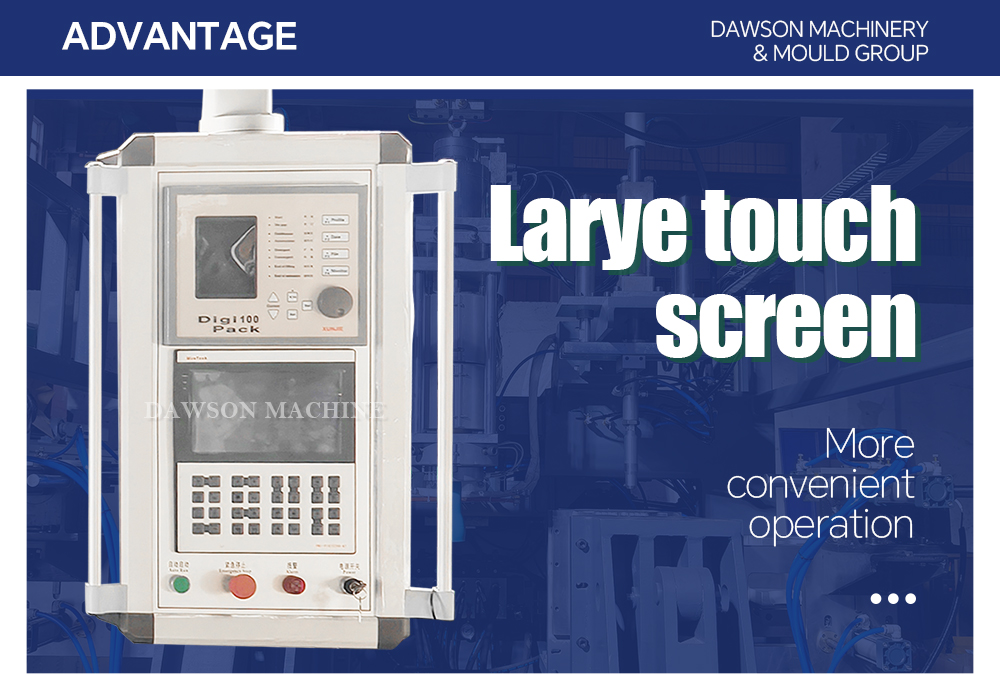

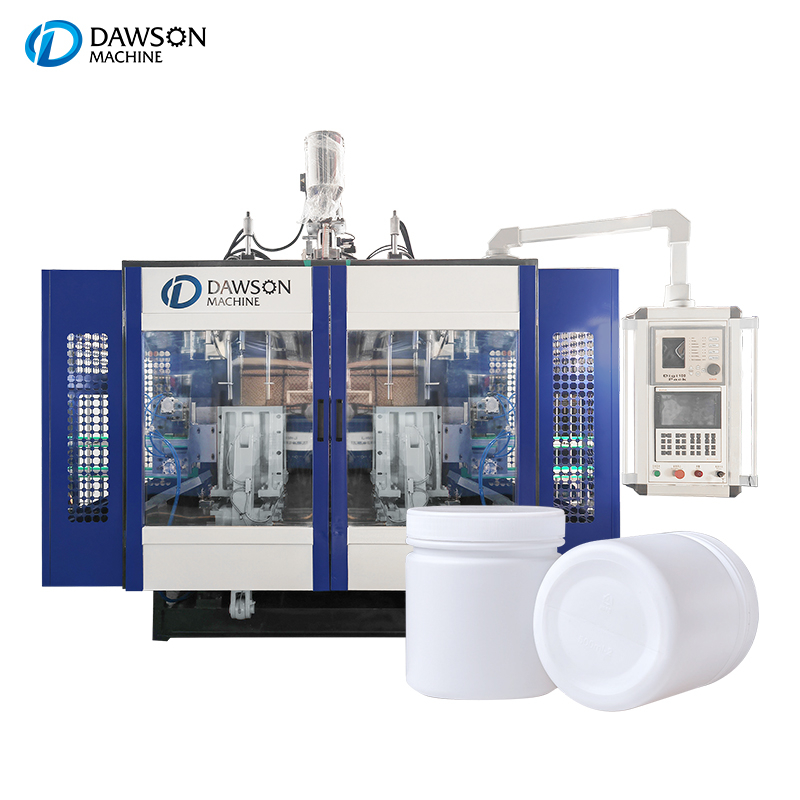

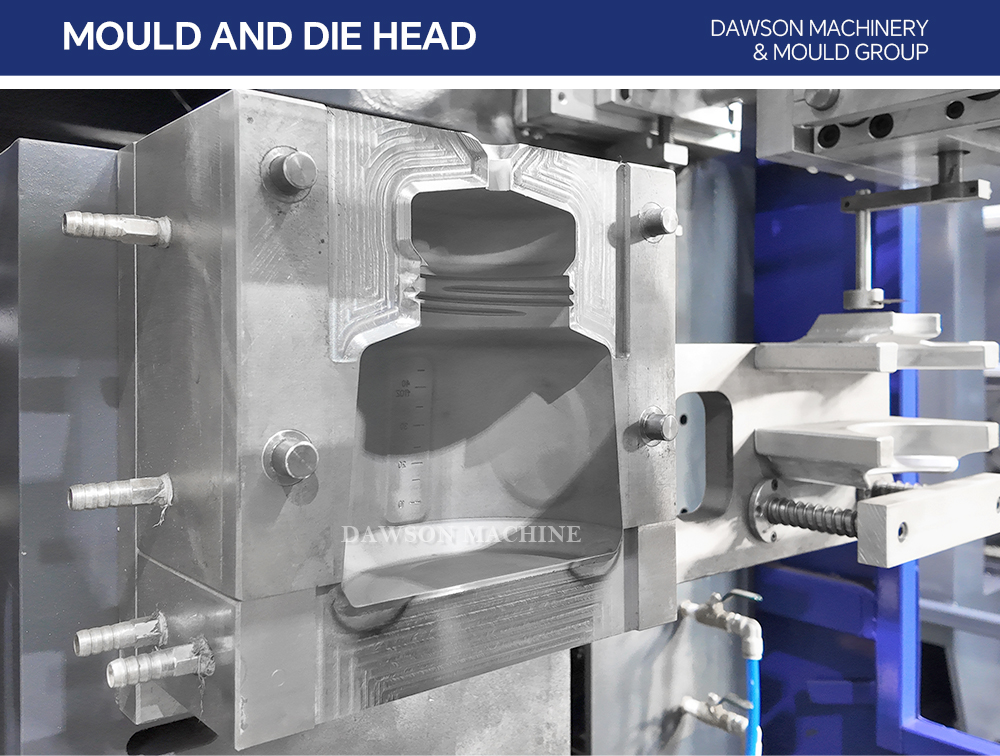

The DSB70-II Extrusion Blow Molding Machine is a professional solution developed for manufacturing wide mouth HDPE bottles and HDPE jars with demanding quality standards. The machine adopts a high-performance extrusion system combined with a precision-engineered die head to achieve stable material flow and accurate wall thickness control. Its rigid clamping structure ensures reliable mold locking during high-pressure blowing, making it well suited for wide neck and thick-wall container production. The DSB70-II is equipped with an advanced PLC control system that enables precise process control, efficient operation, and fast setup. With energy-efficient design, durable components, and consistent output quality, the machine supports long-term, high-volume production and meets the requirements of modern HDPE packaging manufacturers.
| Basic parameters | Maxvolume | 1L-5L(Single head) |
| Output capacity | 200~250pcs/h | |
| Size | 3.8×2.3×2.5(M) | |
| Weigh | 6.5T |
| Plasticizion system | Summarize | High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature | |
| Reducer | Material of Gear box body: HT200 Material of gear: ZG35CrMo Material of bearing: 42CrMo Heat treatment of Gear: Quenching | Brand:GUOMAO (ThebestGearbox supplierinChina) | |
| Screw | ∮70mm,L/D ratio 25/1, Material: 38CrMoALA Nitriding heat-treatment Cooling by cooling Fan | Cooling system available | |
| Plasticization | 70~90Kg/H | HDPE | |
| HeatingZone | 3-4 Aluminum Heater | Automatic heating | |
| Heatingpower | 13.5KW/H | ||
| ExtrusionMotor | Three phasea synchronous motor (380V,50HZ)22KW | Brand: W&N | |
| CoolingFan | 3-4zone | Automatic cooling | |
