DSB70-II
DAWSON
The DSB70-II Extrusion Blow Molding Machine is a professional solution developed for manufacturing wide mouth HDPE bottles and HDPE jars with demanding quality standards. The machine adopts a high-performance extrusion system combined with a precision-engineered die head to achieve stable material flow and accurate wall thickness control. Its rigid clamping structure ensures reliable mold locking during high-pressure blowing, making it well suited for wide neck and thick-wall container production. The DSB70-II is equipped with an advanced PLC control system that enables precise process control, efficient operation, and fast setup. With energy-efficient design, durable components, and consistent output quality, the machine supports long-term, high-volume production and meets the requirements of modern HDPE packaging manufacturers.

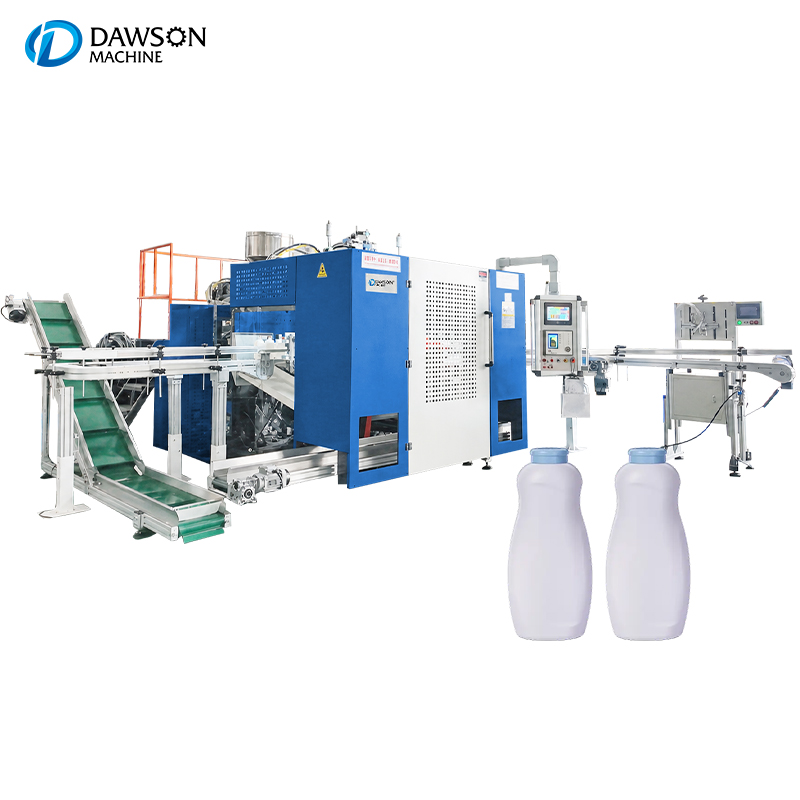

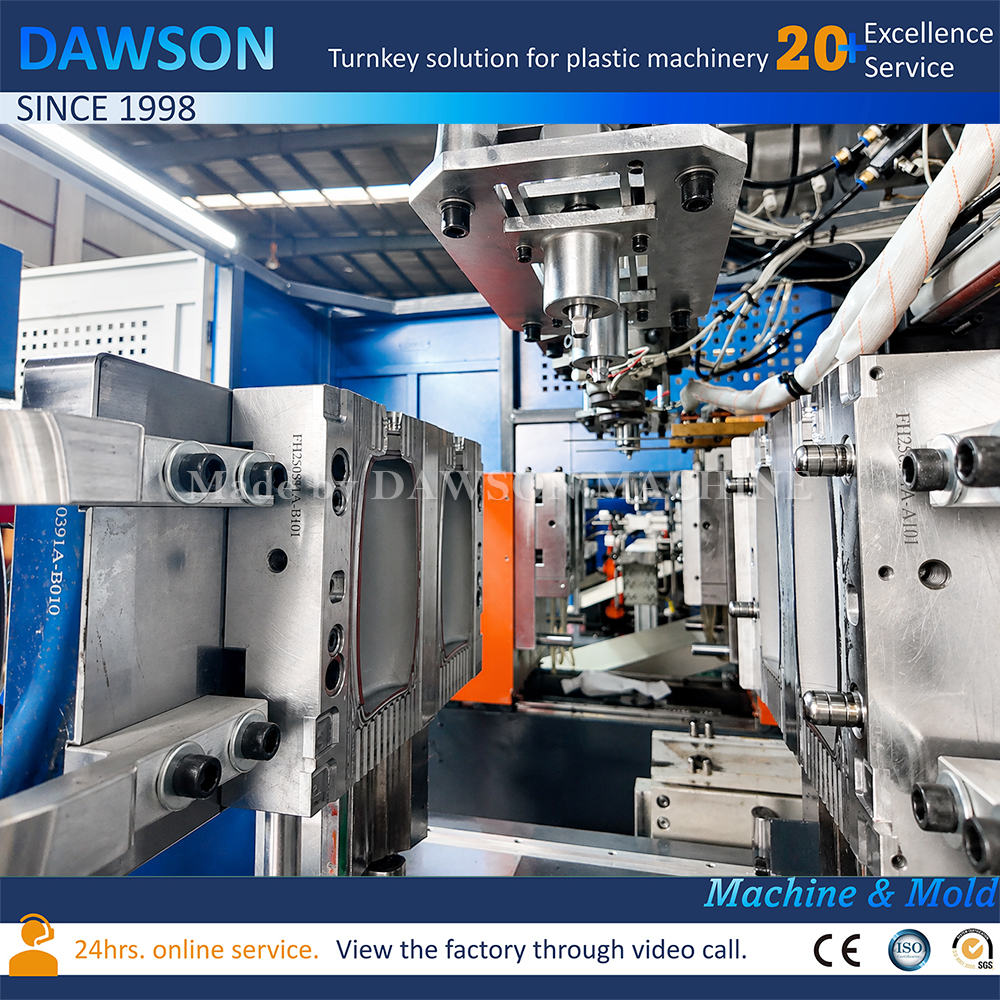

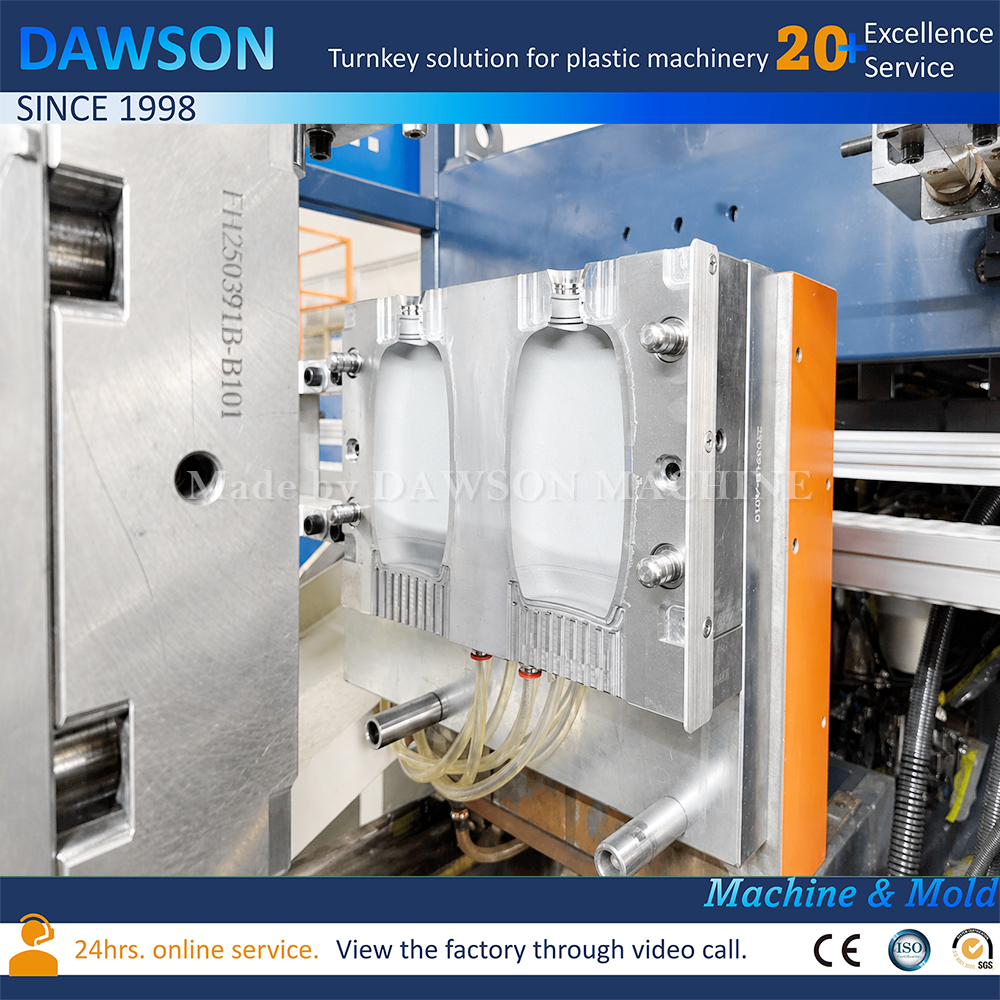

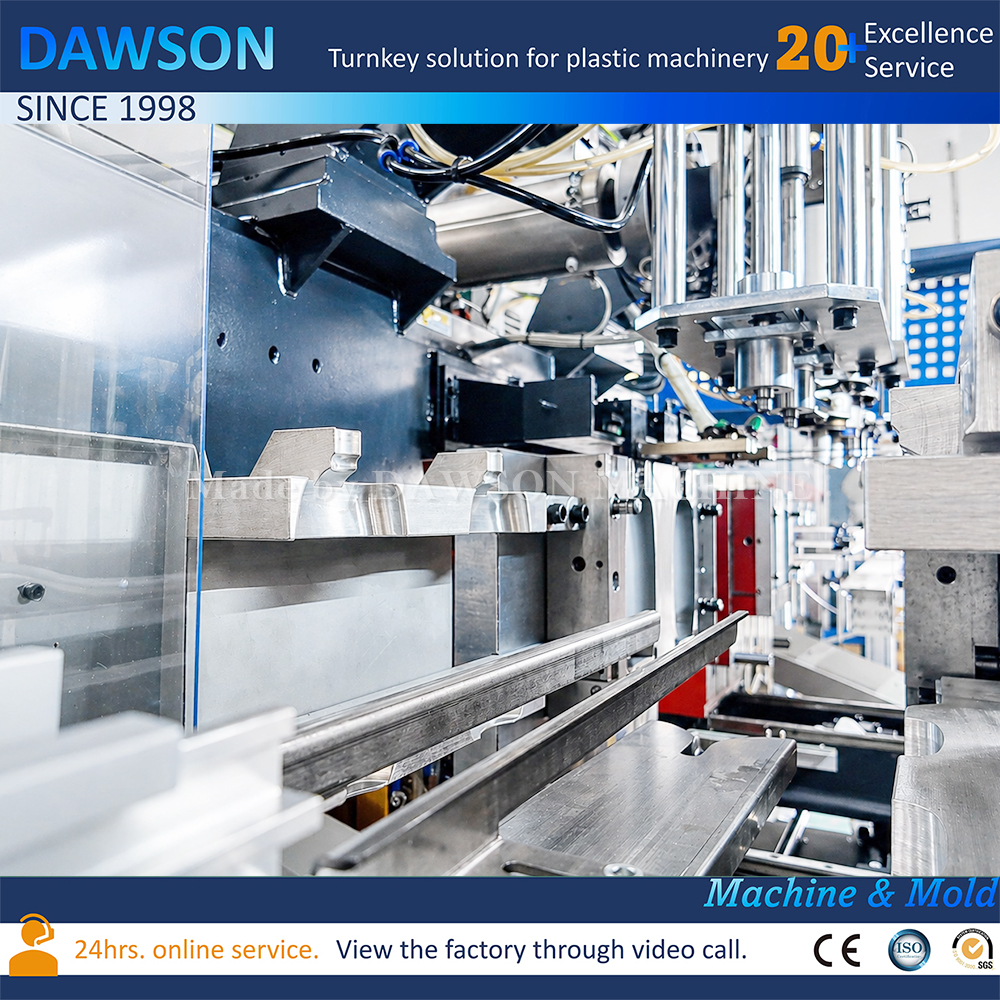

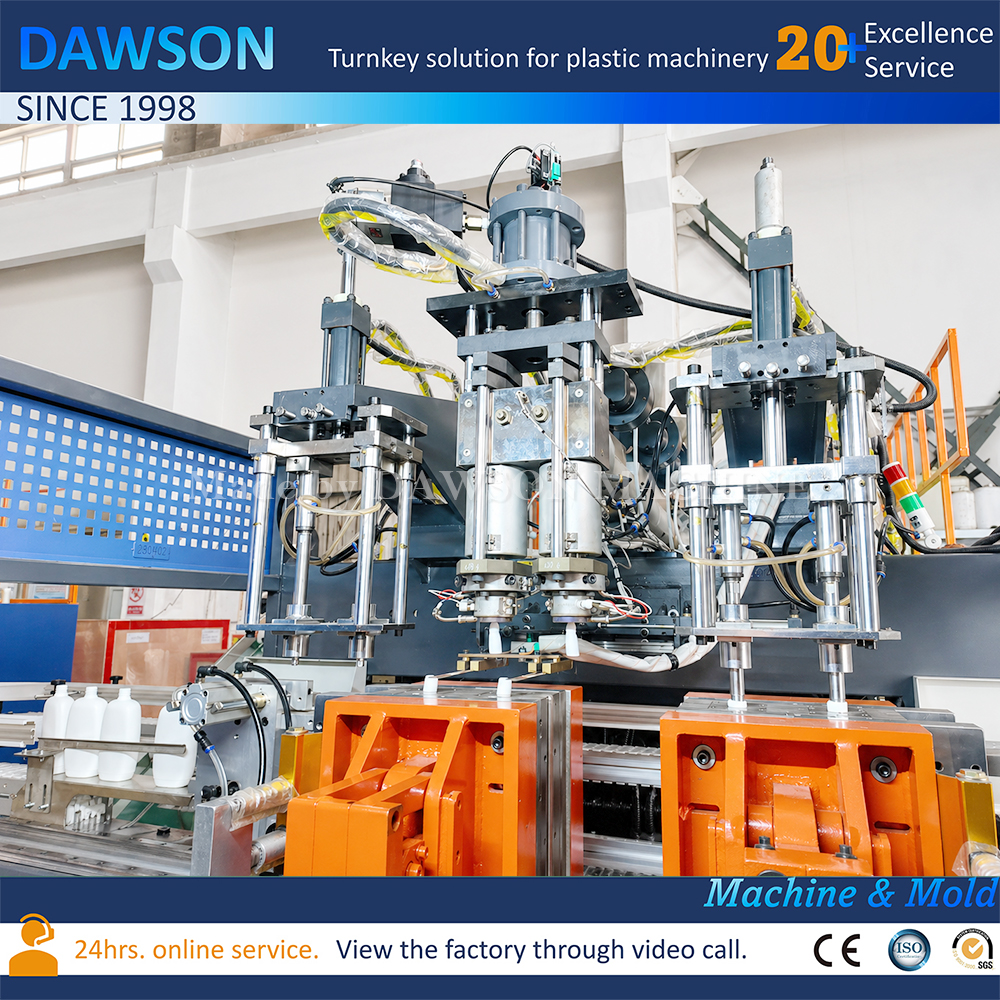

DOUBLE STATION DOUBLE DIE HEAD BLOW MOLDING MACHINE
Specially designed for producing 540ml / 46g Johnson-style baby powder bottles, this machine features stable operation, high efficiency, and precise molding. With double stations and double die heads, it helps increase output, reduce production cost, and deliver smooth, consistent, high-quality bottles for daily chemical packaging.
MACHINE MODEL | DSB70II-2 | |
| Material | HDPE | |
| Cycle | pc/h | 440-480 |
| Machine dimension(L*W*H) | M | 4.3*2.8*2.6 |
| Machine weight | T | 6 |
| CLAMPING UNIT | ||
| Clamping force | KN | 110 |
| Platen opening storke | mm | 188-538 |
| Platen size (W*H) | mm | 368*450 |
| Max mold size (W*H) | mm | 410*450 |
| Mold thickness | mm | 200-310 |
