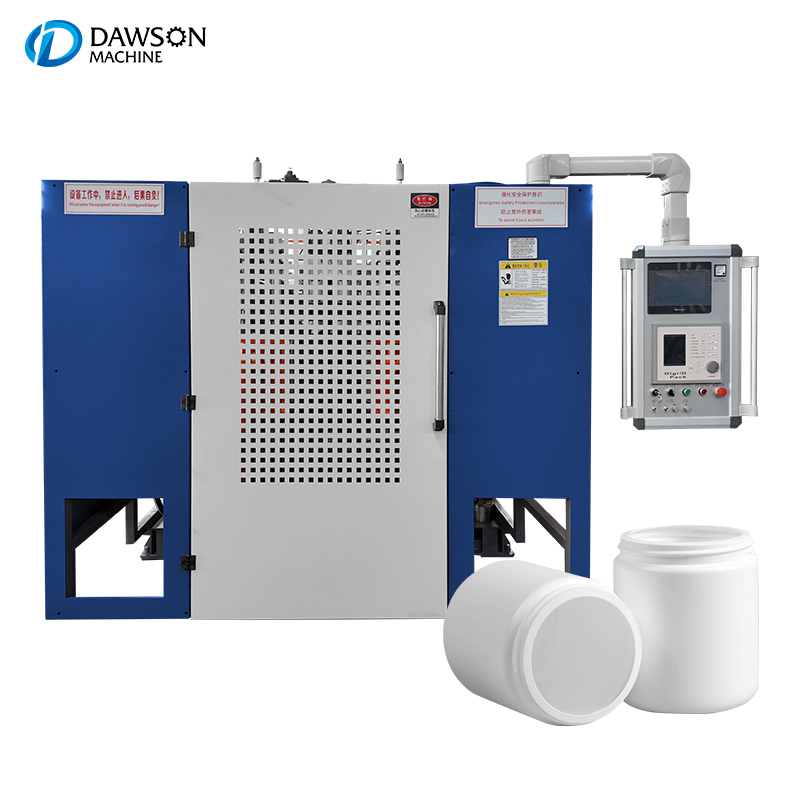

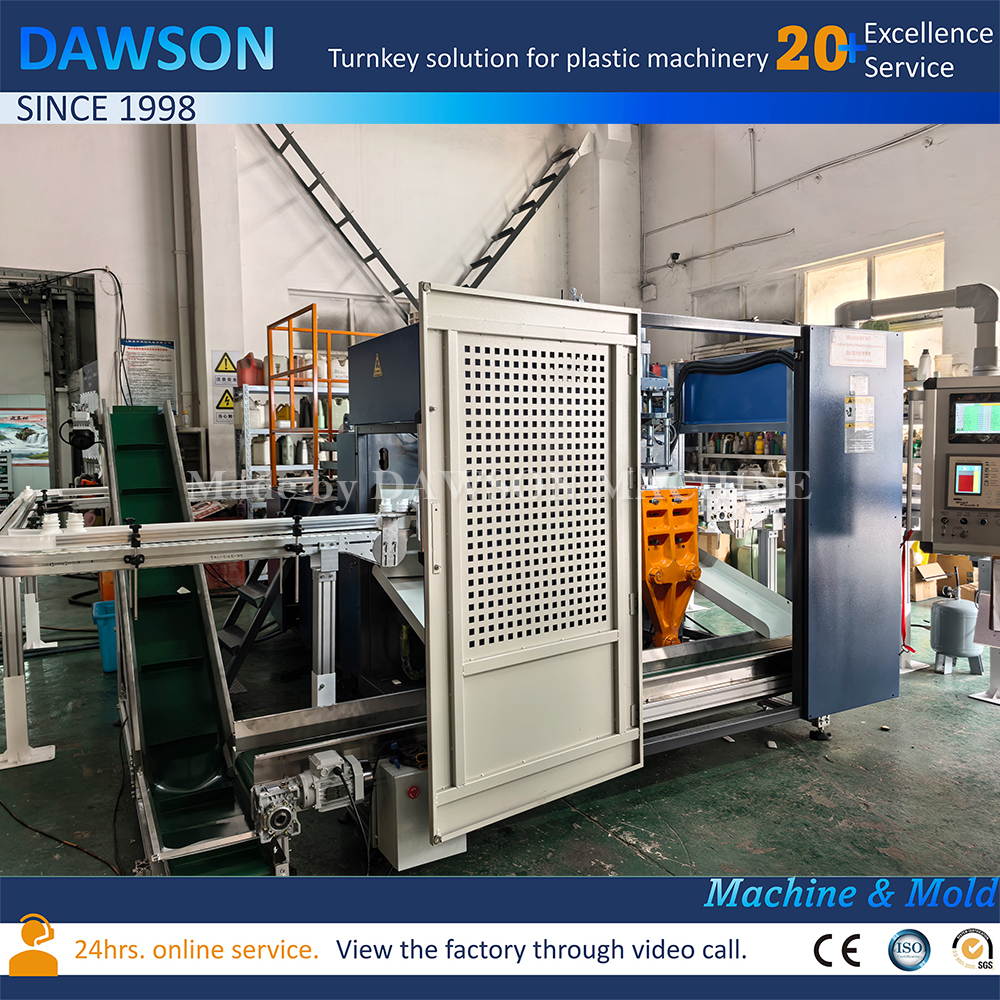

Full Automatic Hair Mask Jar Plastic Cosmetic Cream Jar Double Station Double Die Head Extrusion Blow Molding Machine

Blow Molding Type:
Extrusion Blow Molding Machine
Maximum Application Size:
1L-5L
Output capacity:
200~250pcs/h
Plasticization:
70~90Kg/H
Weigh:
6.5T
Mold Material:
P20, 2316, S136H, Aluminum with beryllium copper.
Language settings:
Chinese, English and other language as customer need
Availability:
Quantity:
Inquire Add to Basket

  • DAWSON

详情_01详情_02详情_03


Material PE、PP、PVC、PA…
Max container capacity L 5 5 8 15 15 20 30
Output（dry Cycle） PC/HR 500 500*2 500*2 500 500*2 500*2 500*2
Machine weight T 4 6.5 8.5 12.5T 18.5T 22.5T 28.5T
Clamping Unit
Clamping force KN 90 90 120 190 190 220 300
Mold platen size（WXH） MM 368x450 368x450 420x500 540x520 540x520 540x620 630x680
Platen moving stroke MM 370/420 420//440 550 650 750 750 900
Max mold size（WXH） MM 410x450 410x450 540x500 700-520 740-520 740-640 740-680
Mold thickness MM 200-310 200-310 280-350 360-450 360-450 460-470 480-580


Power
Servo oil pump motcr power KW 15 15 18.5 18.5 22 22 30
Servo pump displacement L/min 100 130 130 130 170 170 220
Blow pressure Mpa 0.6 0.6 0.6 0.8 0.8 0.8 0.8
Air consumption M/min 0.2-0.3 0.2-0.3 0.2-0.3 0.2-0.3 0.2-0.3 0.2-0.3 0.2-0.3
Water consumption L/min 60 100 100 100 160 180 220
Extruder unit
Screw diameter MM 60 80 80 80 90 90 90
Screw L/D ratio L/D 25 25 25 26 26 28 28
Melting capacit for HDPE Kg/hr 55 115 115 160 180 210 280
Screw heating power ZONE 3 3 3 4 4 5 5
Screw heating power KW 12.6 12.6 12.6 16 16 20 20
Screw fan power KW 0.25 0.25 0.25 0.6 0.6 0.9 0.9
Extruder motor power KW 15 22 22 45 45 55 75
详情_05 详情_06 详情_07 详情_08 详情_09 详情_10 详情_11 详情_12 详情_13


Previous:
Next:
Small Bottle Container Blow Molding Machine Body Cream Jar Molding Machine Cosmetic Jar Blow Molding Machine

Related Products

Wide Mouth HDPE PP Facial Cream Jar Blow Moulding Machine Hair Cream Container Production Equipment
Wide Mouth HDPE PP Facial Cream Jar Blow Moulding Machine Hair Cream Container Production Equipment

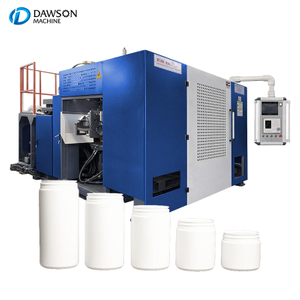

High Speed 100ml 200ml Plastic Packaging Jar Manufacturing Machine
