FB85H8
DAWSON
84773010

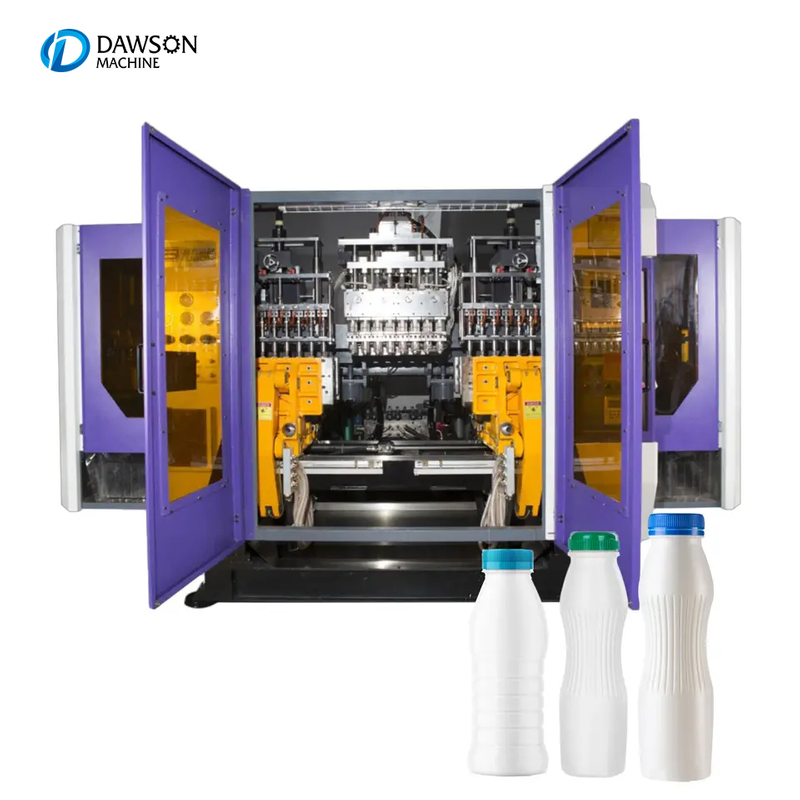

The whole blow molding machine is equipped with bilingual operation panel and automatic configuration from world famous brands to realize the advantages of simple operation and high automation.
Basic parameters | Suitable material | PE.PP | ||
Max volume | 500ml(Eight head) | |||
Output capacity | Depends on product | |||
Size | 4.28×4.72×2.6 (M) | |||
Weight | 11T | |||
system | Specification | Parameters | Note | |
Summarize | High efficient low power consumption plasticizing system, transducer control,self-protect function when started at low temperature | |||
Reducer | Material of Gear box body: HT200 Material of gear: ZG35CrMo Material of bearing: 42CrMo Heat treatment of Gear: Quenching | Brand:Haimao (Jiangsu) | ||
Screw | ∮85mm, L/D ratio 24/1, Material: 38CrMoALA Nitriding heat-treatment Cooling by cooling Fan | Cooling system available | ||
Plasticizing | 130Kg/H | HDPE | ||
Heating Zone | 3 | Automatic heating | ||
Heating power | 9KW/H | |||
Extrusion Motor | Three phase asynchronous motor (380V,50HZ) 37kw | |||
Cooling Fan | 3 | Automatic cooling | ||
Die head system | Summarize | High-grade alloy steel, center feeding Avaible to change to double die head or thriple die heads | ||
Die head number | Eight head | |||
Center distance of die heads | 80mm | |||
Die head | Material of the die Head：38CrMoAlA+40Cr+45# Steel Die head corn mirror degree | We provide complete set die for each sample free | ||
Heating | 21 Stainless steel heating cycle With Plug type heater High quality thermocouple for temperature checking | Plug type heater more easy and convinient for changing die heads | ||
Heating power | 6KW | |||
Clamping system | Automatic Lubricant system for clamping system | |||
Clamping force | 110KN | |||
Clamping stroke | 250-430mm | |||
Mould moving stoke | 750mm | |||
Max mould size | 720X210X340mm(LXWXH) | |||
Electric system | Summarize | PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) | SIEMENS PLC System + TOUCH SCREEN | |
Operate interface | Touch screen, automatic self-diagnose alarm system | |||
Temperature control | Automatic temperature control module | SIEMENS OR MITSUBISHI MODULE | ||
Electrical parts | Schneider electricals & Omron relay | |||
Electric protection | Ampere overload, electric short circuit self-protection function | |||
Parison controller | Shenzhen FEITIANRUI 100 points parison controller + stainless oil tank + oil pipes & fittings | |||
Inverter | HUICHUAN (SHENZHEN) 380V50HZ | |||
Hydraulic system | Summarize | Multiple function hydraulic integrated block Proportional control, high efficient | ||
Oil pump motor | Three phase asynchronous motor (380V、50HZ) 14.5kw | |||
Oil pump | Imported double pump | |||
Valves | JAPAN YUKEN Hydraulic valves | |||
Precision control More safe and easy to operate and maintenance Also YUKEN series avoid any leakage problem both inner or outer, which makes the all operation reliable and safe. | ||||
O-ring | High quality O-ring | We provide spare parts for each sealing | ||
Oil pipes | Double layer over-pressure resistant | |||
System pressure | LP 120 bar / HP 140 bar Threads of hydraulic block use of screw joint GE(ISO 1179) | |||
Cooling system | Separate water cooling cycle, oil cooler cooling system High quality Oil cooler | |||
Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system | ||
Air pressure | Min 0.8Mpa | |||
Air displacement | 1~1.2M3/min | |||
Electromagnetic valve | AIRTAC | |||
Cooling system | Summarize | Separate cooling system of mould, barrel and oil system | ||
Cooling medium | Water | |||
Water flow | 120L/min | |||
Water pressure | 0.3-0.6MPa | |||
Overall | Total power | 66KW | ||
Average power | 38-33KW | |||
