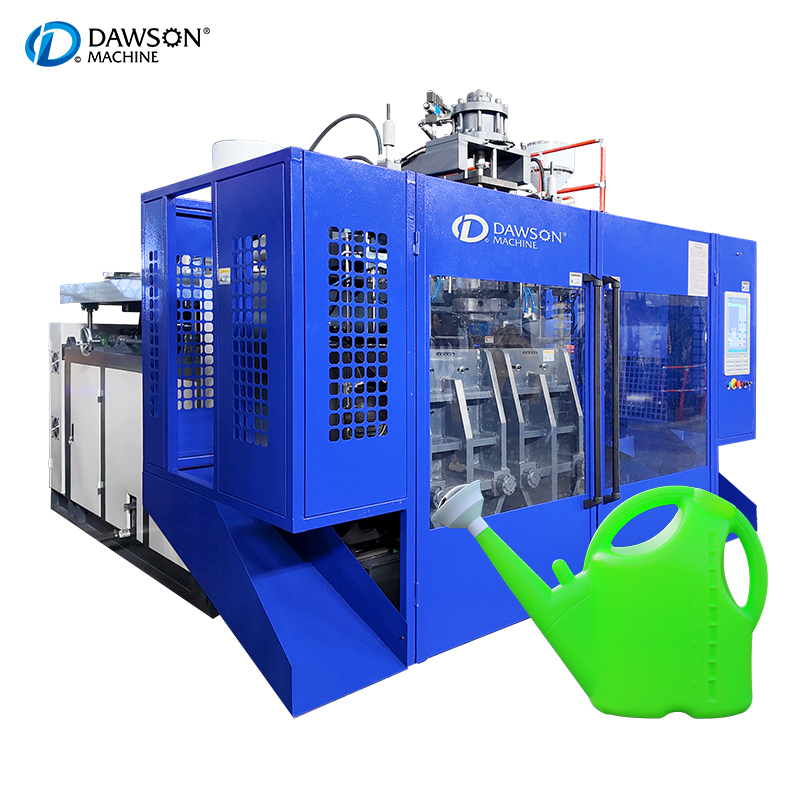

10L Plastic Kettle HDPE Plastic Spray Bottle Making Machine Extrusion Blow Molding Machine

Energy Consumption Control Measures

1.Optimizing Heating System: The heating system of the 10L Spray Bottle Extrusion Blow Molding Machine is one of the main energy - consuming parts. To control energy consumption in this aspect, first, we can adopt advanced heating technologies. For example, replacing traditional resistance heating with induction heating can improve heating efficiency. Induction heating can generate heat directly in the metal parts of the extruder barrel, reducing heat loss. Secondly, reasonable setting of heating temperatures is essential. Different plastic materials have different melting points, and setting the heating temperature too high not only wastes energy but also may cause thermal degradation of the plastic, affecting product quality. Operators should set the heating temperature according to the type of plastic used and strictly control the temperature in each section of the extruder barrel. In addition, installing thermal insulation layers on the extruder barrel and other heating components can reduce heat dissipation to the surrounding environment, thus saving energy.

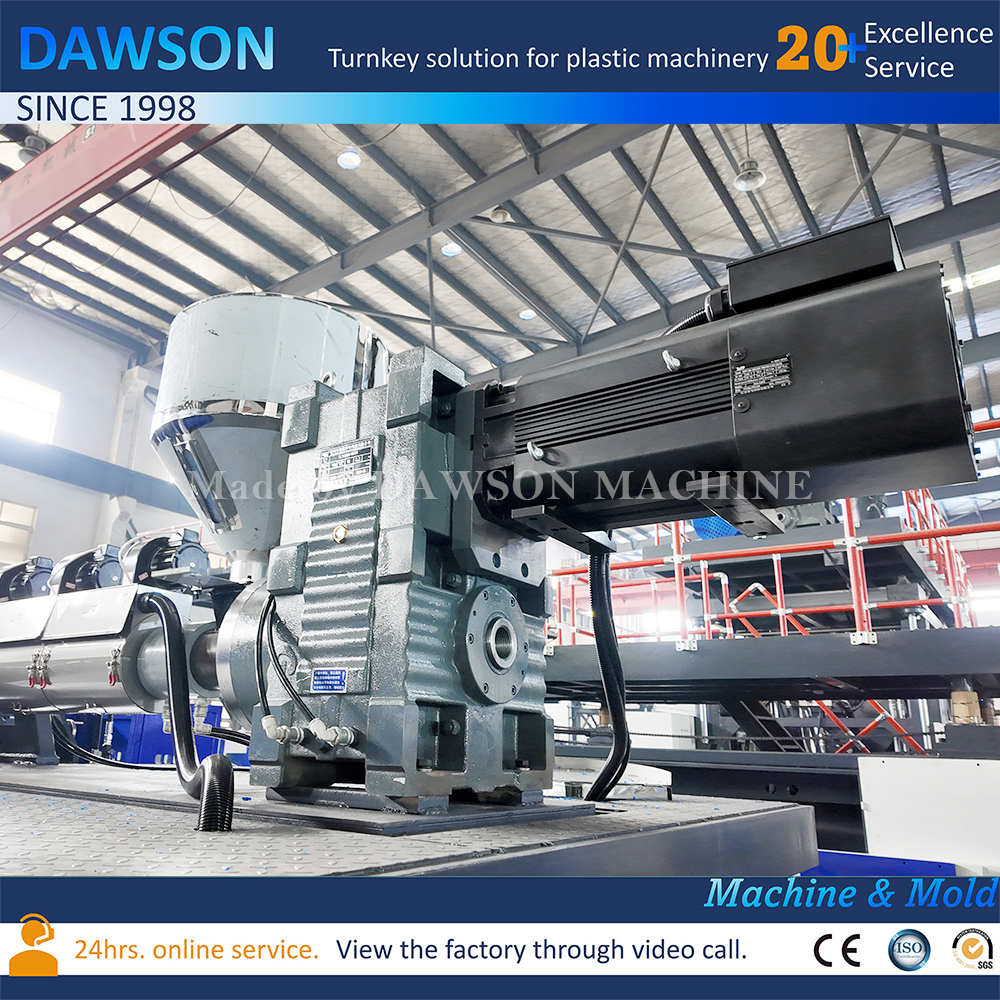

2.Improving Motor Efficiency: The motors used in the 10L Spray Bottle Extrusion Blow Molding Machine, such as the extruder motor and the mold clamping motor, are also major energy consumers. Using high - efficiency motors can significantly reduce energy consumption. High - efficiency motors have better energy conversion rates, which can convert more electrical energy into mechanical energy and reduce energy loss in the form of heat. Moreover, variable frequency drives (VFDs) can be installed on the motors. VFDs can adjust the motor speed according to the actual production needs. For example, during the startup and shutdown stages of the machine or when the production load is low, the motor speed can be reduced, thereby reducing energy consumption. Regular maintenance of the motors, such as lubricating the bearings and checking the electrical connections, can also ensure that the motors work in an efficient state.

3.Recycling and Reusing Energy: Recycling and reusing energy is an effective way to control energy consumption. The 10L Spray Bottle Extrusion Blow Molding Machine generates a lot of waste heat during operation, such as the heat emitted by the extruder barrel and the cooling water after cooling the mold. This waste heat can be recycled. For example, the waste heat from the extruder can be used to preheat the plastic raw materials, reducing the energy required for heating the raw materials in the extruder. The heat from the cooling water can be used for heating the workshop in winter or for other low - temperature heating needs through a heat exchanger. In addition, some machines are equipped with energy - recovery systems in the hydraulic system. When the mold is opened and closed, the hydraulic system will generate regenerative energy, which can be recovered and reused through energy - recovery devices, reducing the overall energy consumption of the machine.

Cost Saving Strategies

1.Reducing Raw Material Waste: Raw materials account for a large proportion of the production cost of 10L spray bottles. Therefore, reducing raw material waste is an important way to save costs. One method is to optimize the design of the parison. By accurately calculating the amount of plastic needed for each 10L spray bottle, adjusting the die gap and extrusion speed to control the weight of the parison, we can avoid excessive use of raw materials. At the same time, improving the quality of the parison to reduce the number of defective parisons that need to be scrapped can also save raw materials. Another method is to recycle and reuse defective products and plastic scraps. Defective 10L spray bottles and the scraps generated during the production process can be crushed into granules and mixed with new plastic pellets in a certain proportion for reuse. However, it should be noted that the proportion of recycled materials should be controlled to avoid affecting the quality of the final product.

2.Extending Equipment Service Life: Extending the service life of the 10L Spray Bottle Extrusion Blow Molding Machine can reduce the cost of equipment replacement. Regular and proper maintenance is the key to extending the service life of the machine. This includes cleaning the machine regularly to prevent the accumulation of dirt and debris, lubricating the moving parts to reduce wear, and inspecting and replacing worn - out components in a timely manner. For example, the extruder screw and die are vulnerable parts. Regular inspection of their wear conditions and replacement when necessary can ensure the normal operation of the machine and avoid more serious damage caused by delayed replacement. In addition, operating the machine in accordance with the operating instructions is also important. Overloading the machine or improper operation can cause premature damage to the equipment.

3.Optimizing Production Scheduling: Reasonable production scheduling can also help save costs. By arranging production plans scientifically, we can minimize the number of machine startups and shutdowns. Each startup of the machine requires a certain amount of time and energy to reach the normal operating state, and frequent startups and shutdowns will increase energy consumption and equipment wear. Therefore, we should arrange continuous production as much as possible within a certain period. At the same time, balancing the production load of multiple machines (if there are multiple 10L Spray Bottle Extrusion Blow Molding Machines in the factory) can avoid some machines being overloaded while others are idle, improving the overall utilization rate of the equipment and reducing the average cost per unit product.

In conclusion, through the implementation of the above energy consumption control measures and cost - saving strategies, manufacturers can effectively reduce the energy consumption and production costs of the 10L Spray Bottle Extrusion Blow Molding Machine, improve the economic benefits of the enterprise, and enhance the competitiveness of the product in the market.
