| Model NO.: | |
|---|---|
| Station: | |
| ScrewRPM(50HZ): | |
| Cooling water pressure: | |
| Suitable Material: | |
| Labor Demand: | |
| Machine Dimension(LxWxH): | |
| Quantity: | |

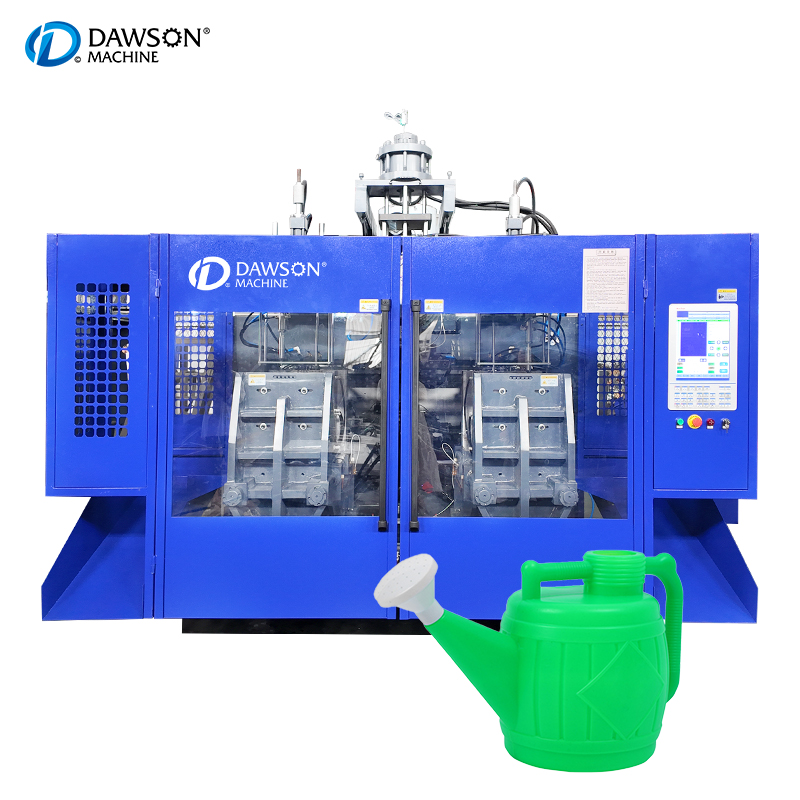

DSB
DAWSON
| Parameters | Units | DSB70-10L | DSB80-10L |
| Screw diameter | mm | 70 | 80 |
| ScrewL/Dratio | - | 24 | 24 |
| ScrewRPM(50HZ) | r/mm | 10-70 | 10-60 |
| Extrusion capacity per hour(PE) | kg/h | 70 | 110 |
| Number of heaters | - | 3 | 4 |
| Opening stoke | mm | 600 | 600 |
| Platen size | mm | 450*520 | 450*520 |
| Clamping stoke | mm | 200-650 | 200-650 |
| Clamping force | KN | 110 | 110 |
| Dry cycle time | S | 9 | 14 |
| Cooling water pressure | Mpa | 0.2-0.3 | 0.2-0.3 |
| Cooling water consumption | L/min | 60 | 60 |
| Air pressure | Mpa | 0.8 | 0.8 |
| Compressed air consumption | m³/min | 0.8 | 0.8 |
| Machine Dimension(LxWxH) | mm | 3800x2100X2950 | 4000x3100X3150 |
| Machine net weight | T | 7 | 10.2 |
| Double head central distance | mm | 200 | 200 |
| Triple head central distance | mm | 150 | 50 |
| Four head central distance | mm | 100 | 100 |
| Power Unit | |||
| Extrusion motor | KW | 22 | 30 |
| Extruder heating power | KW | 14.2 | 16 |
| Power of die heating zone | KW | 4 | 4 |
| Hydraulic motor | KW | 11 | 11 |
| Total power | KW | 55.2 | 65 |
DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
