DSBD 100A-120L
DAWSON
BUILD STRONGER FLOATING DOCKS,PRODUCE MORE PROFITS

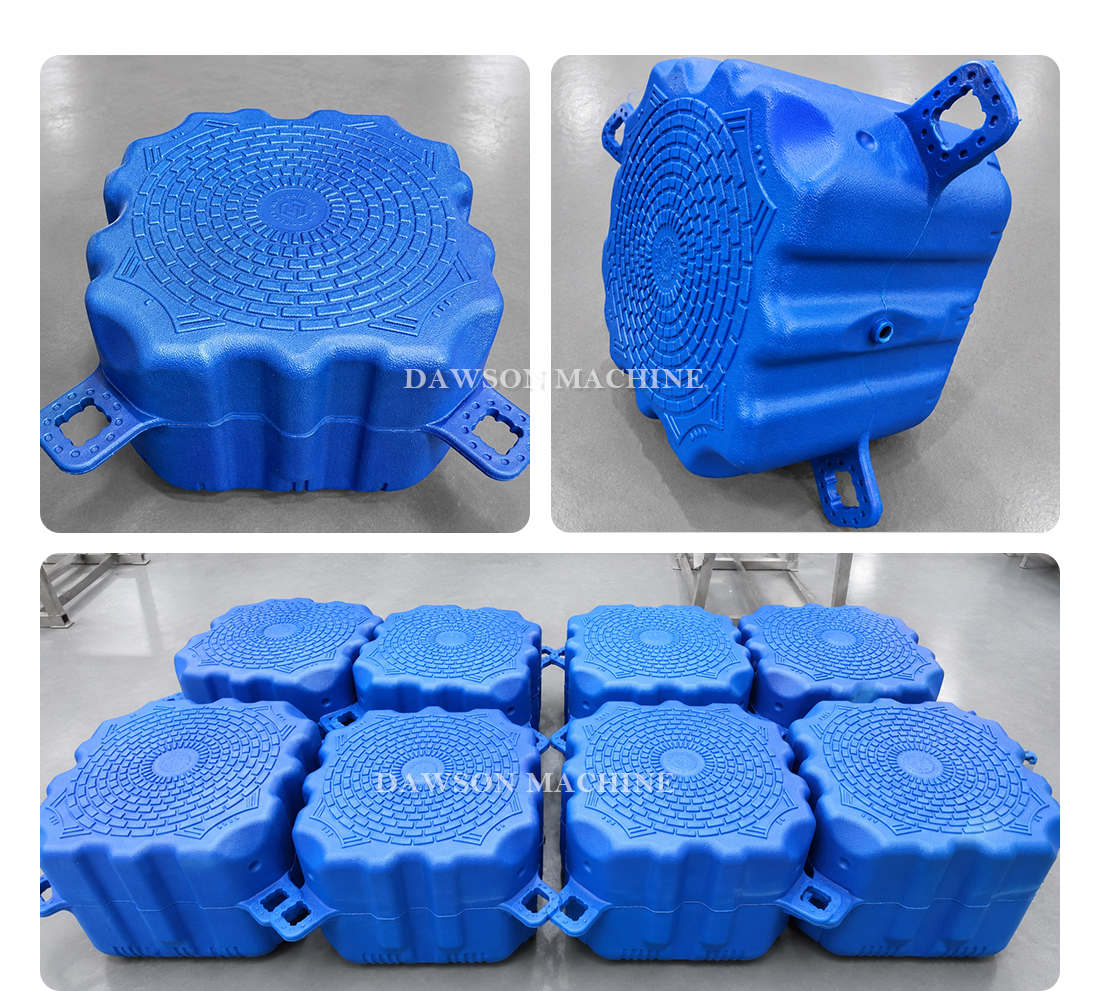

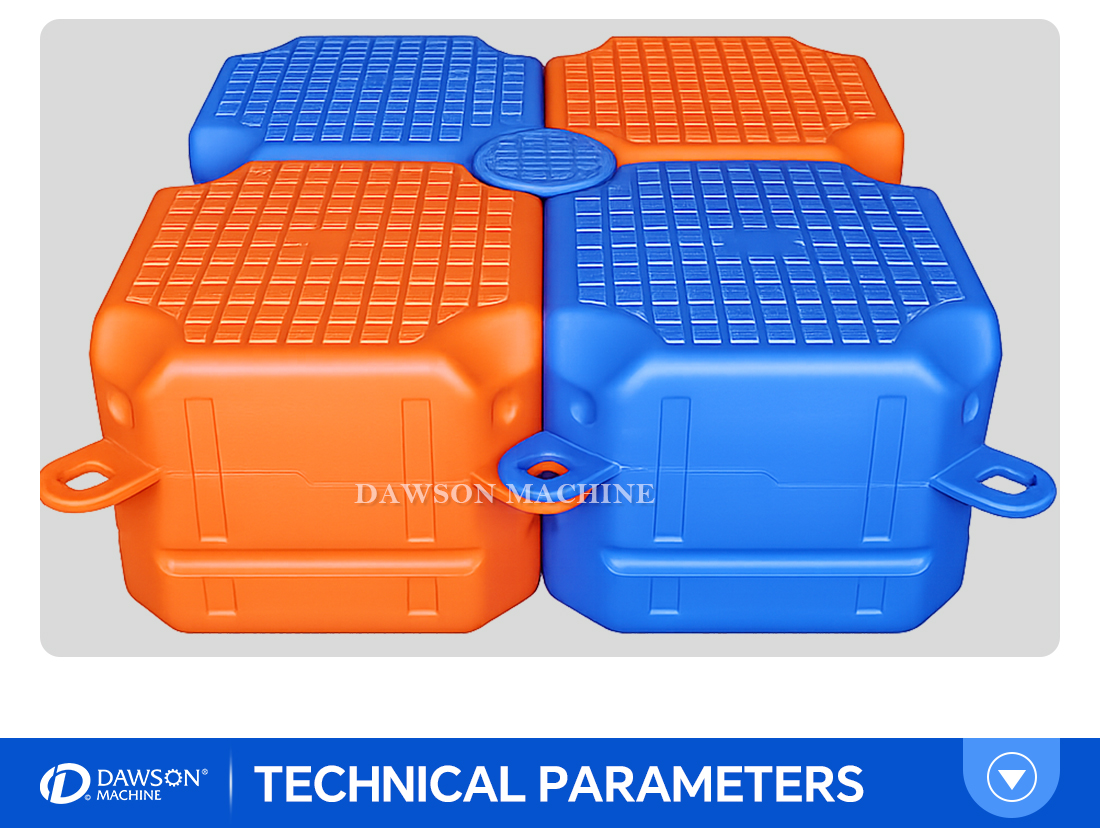

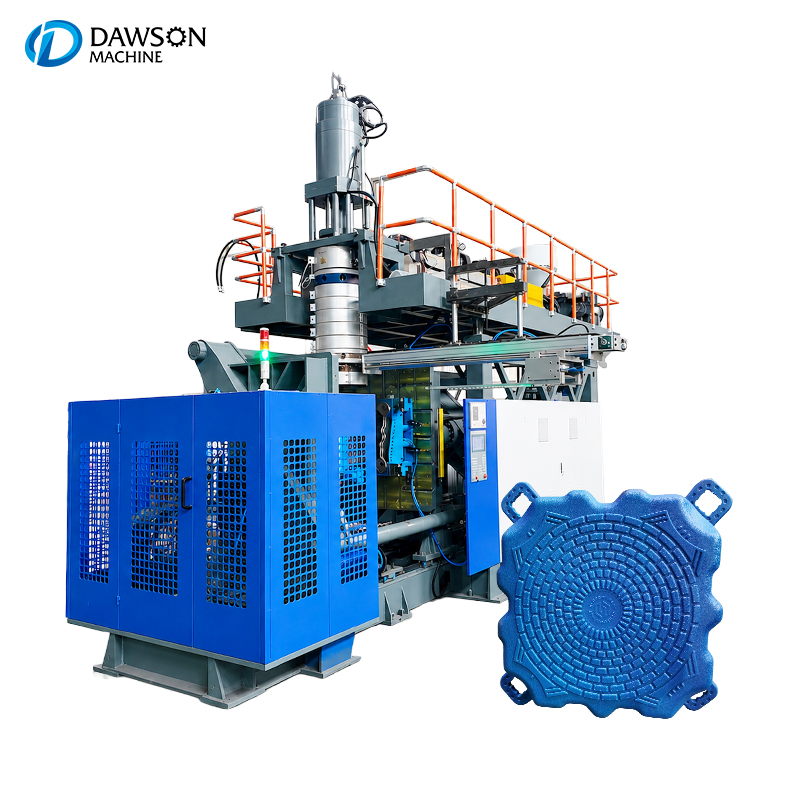

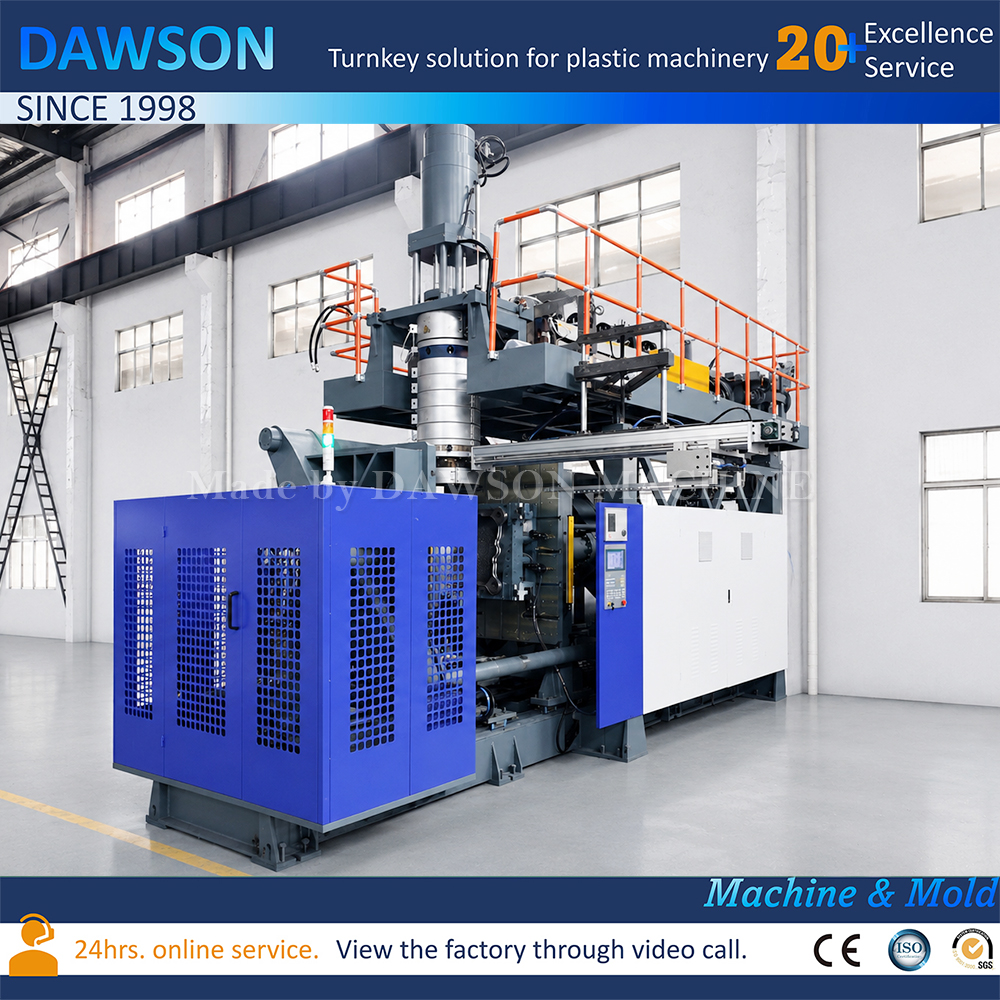

Increase your production capacity with a blow molding machine specially developed for floating dock cubes. Featuring stable extrusion performance, accurate mold control, and reliable operation, it helps manufacturers achieve consistent product quality while reducing production costs. Suitable for large-scale commercial production of floating dock systems and modular floating platforms.
Parameters | DSBD80A-30L | DSBD90A-60L | DSBD100A-120L | DSBD110A-160L | DSBD200L |
Applicable Product Range | 20-30L Drums / Pails | 30-60L Drums / Pails | 120L Drums | 160-230L Drums | 230L IBC Tote |
Max. Container Capacity | 30L | 60L | 120L | 250L | 250L |
Air Motor Operating Time | 12 | 13 | 15 | 16 | 18 |
Screw Rod Diameter | 80 mm | 90 mm | 100 mm | 100 mm | 100 mm |
Screw Rod Lead | 24 | 24 | 24 | -- | -- |
Lifting Capacity | 110 KG | 130 KG | 180 KG | 260 KG | 380 KG |
Lifting Stages | 4 | 4 | 5 | 5 | 5 |
Base Size (Wx H) | 750x800 mm | 950x900 mm | 1050x1260 mm | 1100x1400 mm | 1260x1500 mm |
Adjustable Height | 450-1000 mm | 450-1150 mm | 600-1400 mm | 600-1600 mm | 800-1800 mm |
Max. Mold Size | 550x800 mm | 700x900 mm | 800x1250 mm | 850x1400 mm | 950x1400 mm |
Min. Mold Thickness | 460mm | 460mm | 610mm | 610mm | 810mm |
Locking Force | 300KN | 400KN | 500KN | 700KN | 800KN |
Mold Capacity | 5L | 8L | 15L | 20L | 24L |
Max. Package Diameter | 300mm | 350mm | 450mm | 450mm | 500mm |
Mold Quantity | 4 | 4 | 5 | 5 | 5 |
Air Motor Power | 30KW | 37KW | 45KW | 75KW | 132KW |
Machine Heating Power | 14.8KW | 16KW | 22.5KW | 25KW | 30KW |
Mold Heating Power | 16KW | 19KW | 33KW | 35KW | 48KW |
Hydraulic Pump Motor Power | 11KW | 15KW | 18.5KW | 22KW | 22+11KW |
