Hot Sale Vegetable Fruit Crate Box Basket Bucket Injection Molding Machine

Name: Hot Sale Vegetable Fruit Crate Box Basket Bucket Injection Molding Machine
Brand: DAWSON
SKU: 514743617
Rating: 5.0 (65 reviews)

Clamping force:	DAWSON
Key Selling Points:	High Productivity
Type:	injection molding machine
template size:	16 pieces
Core Components:	Bearing, Motor, Pump, Gear, PLC, Other, Pressure vessel, Engine,
Distance between Tie Bars:	970x920mm
Max. pump pressure:	16 Mpa
Availability:

Quantity:



Inquire Add to Basket

Model:
SM-680II
Brand:
DAWSON

Product Description

The Role of Artificial Intelligence and Machine Learning in Predictive Maintenance of Fruit Bucket Injection Molding Machines

 In the complex and fast - paced world of manufacturing, unexpected machine breakdowns can have a devastating impact on production schedules, costs, and customer satisfaction. For fruit bucket injection molding machine operators, ensuring the continuous and reliable operation of these machines is of utmost importance. This is where artificial intelligence (AI) and machine learning (ML) are playing a revolutionary role in predictive maintenance.

 Predictive maintenance using AI and ML is based on the principle of analyzing large amounts of data collected from various sensors installed on the injection molding machine. These sensors monitor a wide range of parameters, including temperature, vibration, pressure, motor current, and oil levels. By continuously collecting and analyzing this data, AI and ML algorithms can detect patterns and anomalies that may indicate an impending machine failure or performance degradation.

 One of the key advantages of AI - and ML - driven predictive maintenance is its ability to predict failures before they occur. Traditional maintenance strategies, such as preventive maintenance (scheduled maintenance at fixed intervals) or corrective maintenance (repairing the machine after a failure), have their limitations. Preventive maintenance may result in unnecessary maintenance activities, wasting time and resources, while corrective maintenance leads to unplanned downtime and production losses. In contrast, predictive maintenance allows operators to schedule maintenance activities precisely when they are needed, based on the actual condition of the machine.

 For example, by analyzing vibration data, AI algorithms can identify early signs of bearing wear in the injection unit of a fruit bucket injection molding machine. As a bearing starts to deteriorate, it produces characteristic vibration patterns that can be detected and analyzed. Once the algorithm determines that the bearing is approaching the end of its useful life, it can send an alert to the maintenance team, who can then plan to replace the bearing at a convenient time, minimizing production disruptions.

 Machine learning algorithms can also predict changes in the quality of the fruit buckets being produced. By correlating process parameters (such as injection pressure, temperature, and cooling time) with the quality of the final product (measured by factors like wall thickness uniformity, surface finish, and dimensional accuracy), ML models can identify the optimal process settings for a given set of materials and production requirements. Moreover, these models can detect when the process is deviating from the optimal conditions, allowing operators to make timely adjustments to prevent the production of defective fruit buckets.

 Another application of AI and ML in predictive maintenance is in supply chain management. By predicting machine failures, manufacturers can better plan for the procurement of spare parts. Instead of keeping large inventories of spare parts that may or may not be needed, they can use the predictive insights from AI to order parts just in time, reducing inventory costs while ensuring that they have the necessary components to carry out maintenance promptly.

 The implementation of AI and ML in predictive maintenance also requires a robust data infrastructure. Injection molding machines need to be equipped with high - quality sensors that can collect accurate and reliable data. This data then needs to be transmitted securely to a central server or cloud - based platform where the AI and ML algorithms can analyze it. Additionally, manufacturers need to invest in training their staff to understand and interpret the insights provided by these algorithms, as well as to use the recommended maintenance actions effectively.

 As the capabilities of AI and ML continue to expand, the role of these technologies in predictive maintenance of fruit bucket injection molding machines will become even more critical. By leveraging AI and ML, manufacturers can enhance the reliability and efficiency of their production processes, reduce costs, and gain a competitive edge in the market.

详情_03 详情_02

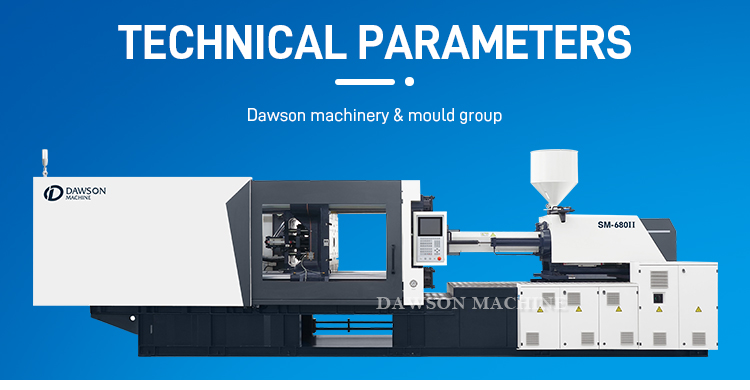

INJECTION UNIT		A	B	C	D
Screw diameter	mm	85	90	95	100
Screw L/D ratio	L/D	23.3	22	20.8	20.8
Theoretical shot volume	cm³	2835	3179	3542	3825
Shot weight(PS)	g	2580	2893	3223	3572
Injection rate	cm³	480	538	599	664
Injection pressure	bar	2020	1800	1620	1450
Max.screw speed	rpm	135

OTHERS
Max.Pump pressure	MPa	16
Pump motor power	KW	37+37
Heating capacity	KW	44.3
Machine dimensions	m	10.12.32.7
Oiltank cubage	L	1200
Machine weight	t	30.5

详情_06

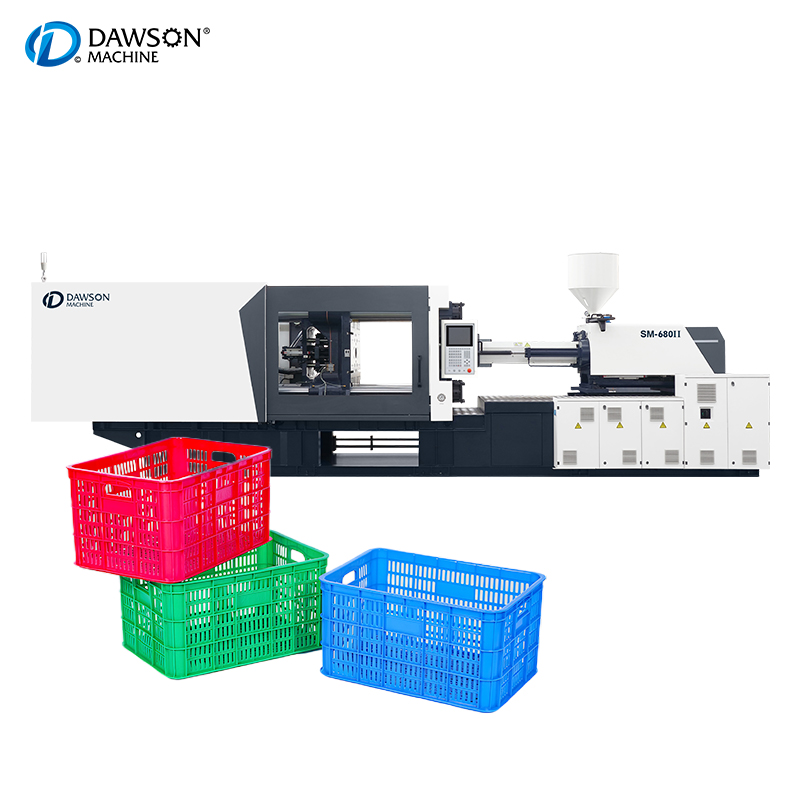

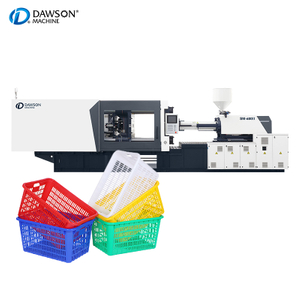

DAWSON SM-680II injection molding machine is designed for fruit and beer basket. It is with basket pushing function which is our patent design. With this function, it can be safe for workers and save labor cost for our customers.

详情_14

详情_15

DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

详情_17 详情_21

Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .

Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
