High Quality Fruit Vegetable Basket Making injection Molding Moulding Machine

Clamping force:
Key Selling Points:
Type:
template size:
Core Components:
Distance between Tie Bars:
Max. pump pressure:
Availability:
Quantity:
  • SM-680II

  • DAWSON

The Influence of Consumer Trends on Fruit Bucket Injection Molding Machine Design and Functionality


Consumer trends have a profound impact on every aspect of the manufacturing industry, and the design and functionality of fruit bucket injection molding machines are no exception. As consumer preferences and behaviors change, so do the requirements for fruit packaging, which in turn drives innovation in injection molding machine technology.


One of the most significant consumer trends influencing fruit bucket design is the growing demand for sustainable packaging. Consumers are becoming more environmentally conscious and are actively seeking products with packaging that has a reduced environmental impact. This has led to an increased demand for fruit buckets made from recyclable, biodegradable, or compostable materials. As a result, fruit bucket injection molding machine manufacturers are developing machines that can handle these alternative materials more effectively.


For example, machines are being designed with enhanced temperature control systems to accommodate the different melting characteristics of biodegradable plastics. Specialized screw and barrel designs are also being developed to ensure proper mixing and melting of these materials, which may have different flow properties compared to traditional plastics. Additionally, manufacturers are focusing on reducing the overall weight of fruit buckets without sacrificing their strength and durability. Lighter - weight buckets require less material to produce, reducing both costs and the environmental footprint.


Another consumer trend that is shaping fruit bucket injection molding machine design is the preference for convenient and user - friendly packaging. Consumers today value ease of use, whether it's opening the fruit bucket, carrying it, or storing it. This has led to the development of fruit buckets with features such as easy - to - open lids, ergonomic handles, and stackable designs. Injection molding machines need to be capable of producing these complex features with precision. For instance, machines are now equipped with multi - cavity molds that can produce fruit buckets with integrated handles in a single molding cycle, increasing production efficiency.


Aesthetic appeal also plays a crucial role in consumer purchasing decisions. Consumers are more likely to choose fruits packaged in attractive and visually appealing buckets. This has led to an increased focus on decorative elements in fruit bucket design, such as colorful patterns, embossed logos, and unique shapes. Injection molding machines are being upgraded with advanced molding techniques, such as in - mold labeling (IML) and in - mold decoration (IMD), which allow for the application of labels and decorative elements during the molding process itself. IML and IMD not only enhance the aesthetic appeal of the fruit buckets but also provide better protection for the labels, reducing the risk of peeling or damage.


Furthermore, the rise of e - commerce has also influenced fruit bucket design. With more consumers purchasing fruits online, the packaging needs to be more robust to withstand the rigors of shipping and handling. Fruit bucket injection molding machines are being used to produce buckets with enhanced structural integrity, such as thicker walls, reinforced corners, and better - fitting lids, to ensure that the fruits remain fresh and undamaged during transit.


In response to these consumer trends, fruit bucket injection molding machine manufacturers are also investing in research and development to improve the overall functionality of their machines. This includes developing faster - cycle - time machines to meet the increasing demand for fruit buckets, as well as machines with better energy efficiency to reduce production costs. Additionally, there is a growing emphasis on modular machine designs, which allow for easy customization and upgrading of the machines to meet changing production requirements.

In conclusion, consumer trends are a major driving force behind the innovation and evolution of fruit bucket injection molding machine design and functionality. By keeping a close eye on consumer preferences and behaviors, manufacturers can ensure that their machines are capable of producing fruit buckets that meet the demands of the modern market, both in terms of functionality and environmental sustainability.


INJECTION UNIT

A B C D
Screw diameter mm

85

90 95 100
Screw L/D ratio L/D 23.3 22 20.8 20.8
Theoretical shot volume cm³ 2835 3179 3542 3825
Shot weight(PS) g 2580 2893 3223 3572
Injection rate cm³ 480 538 599 664
Injection pressure bar 2020 1800 1620 1450
Max.screw speed rpm 135


CLAMPING UNIT
Clamping force KN 6800
Opening stroke mm 970
Distance between tie-bars mm 970*920
Max.mold height mm 980
Min.mold height mm 380
Ejector stroke mm 260
Ejector force KN 207



OTHERS
Max.Pump pressure MPa 16
Pump motor power KW 37+37
Heating capacity KW 44.3
Machine dimensions m 10.1*2.3*2.7
Oiltank cubage L 1200
Machine weight  t 30.5



详情_07详情_06详情_08详情_10详情_09详情_11详情_12

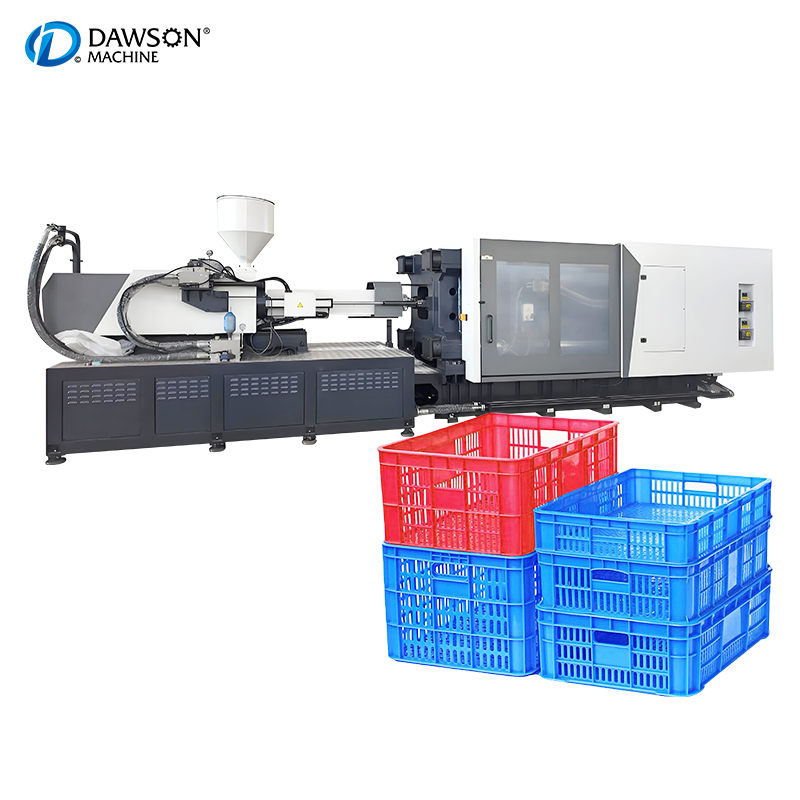

DAWSON SM-680II injection molding machine is designed for fruit and beer basket. It is with basket pushing function which is our patent design. With this function, it can be safe for workers and save labor cost for our customers.

详情_14

详情_15


DAWSON MACHINE & MOULD GROUP


located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!


详情_19详情_20详情_17详情_21

Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .

Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
