dawson

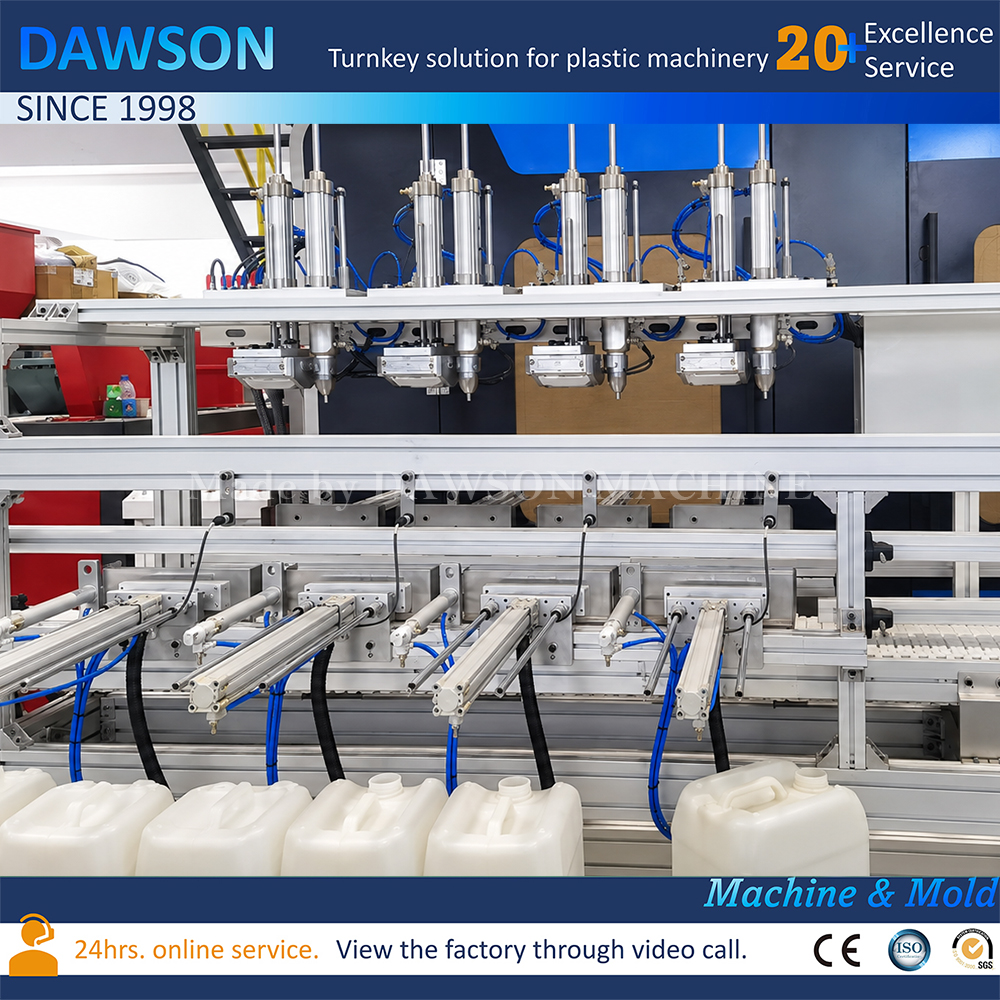

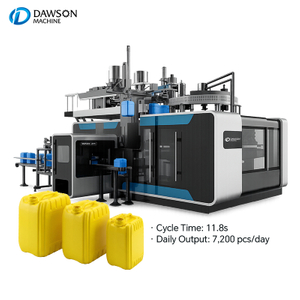

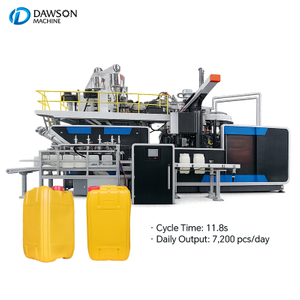

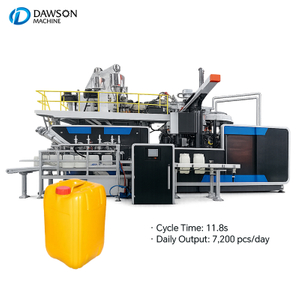

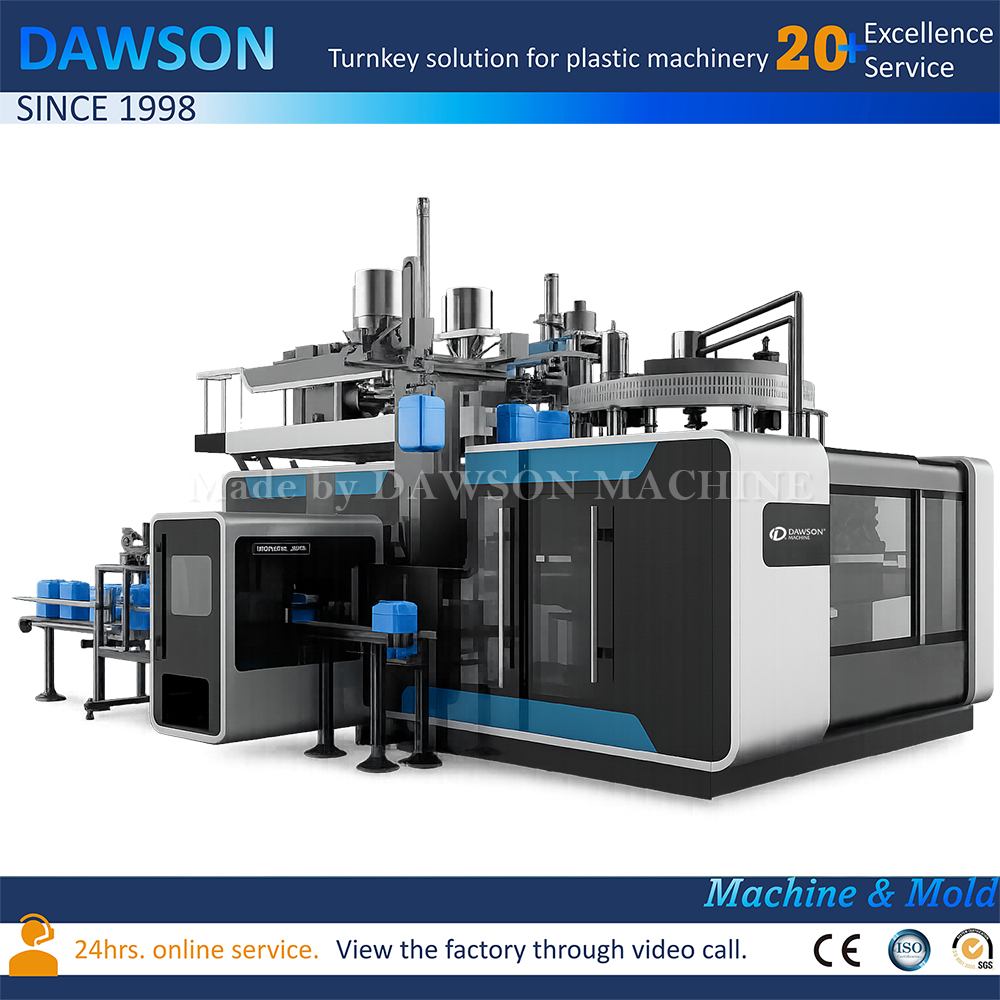

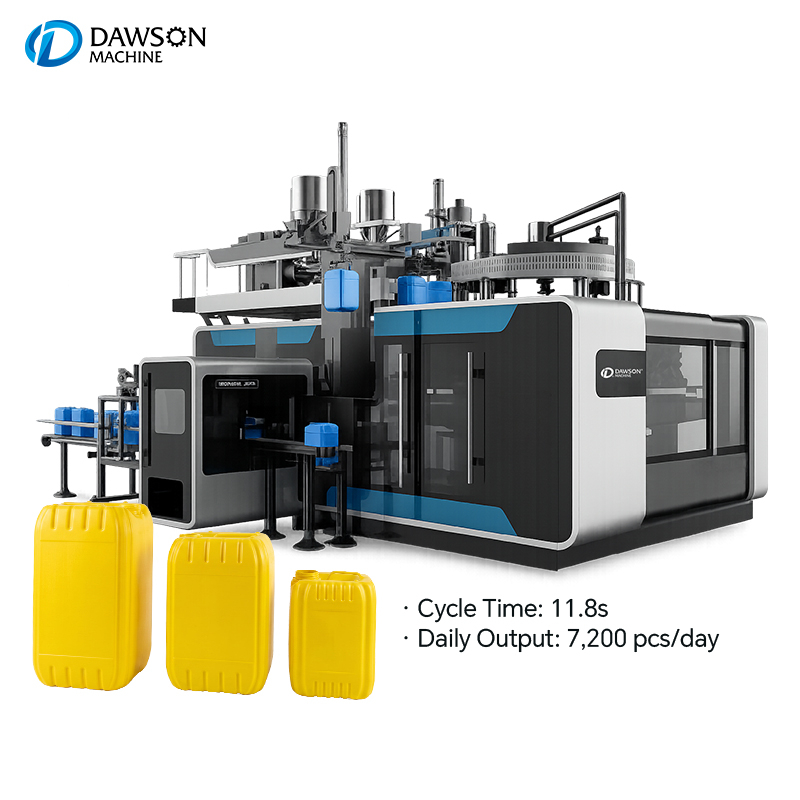

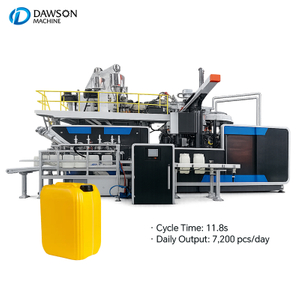

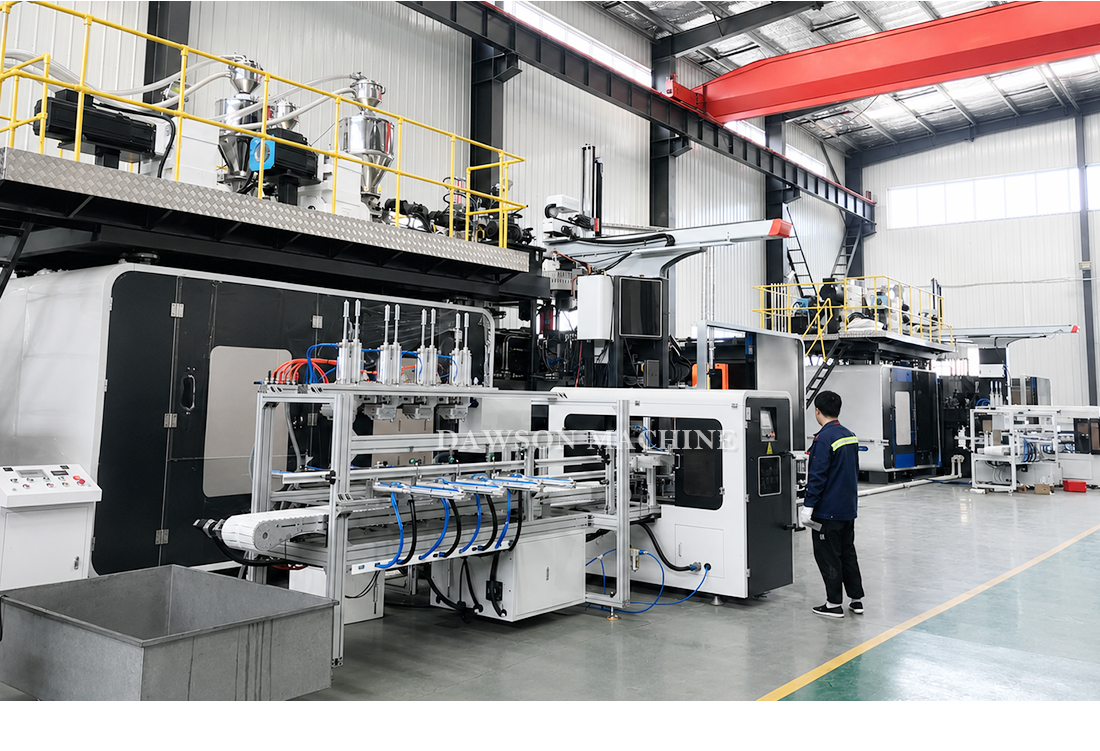

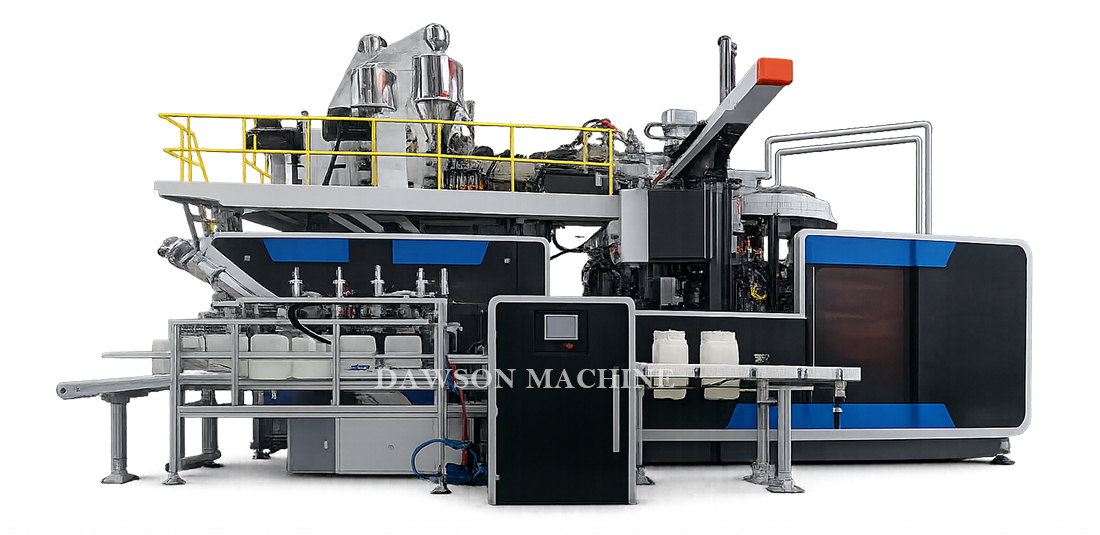

China’s First 6-Station Rotary Blow Molding Machine

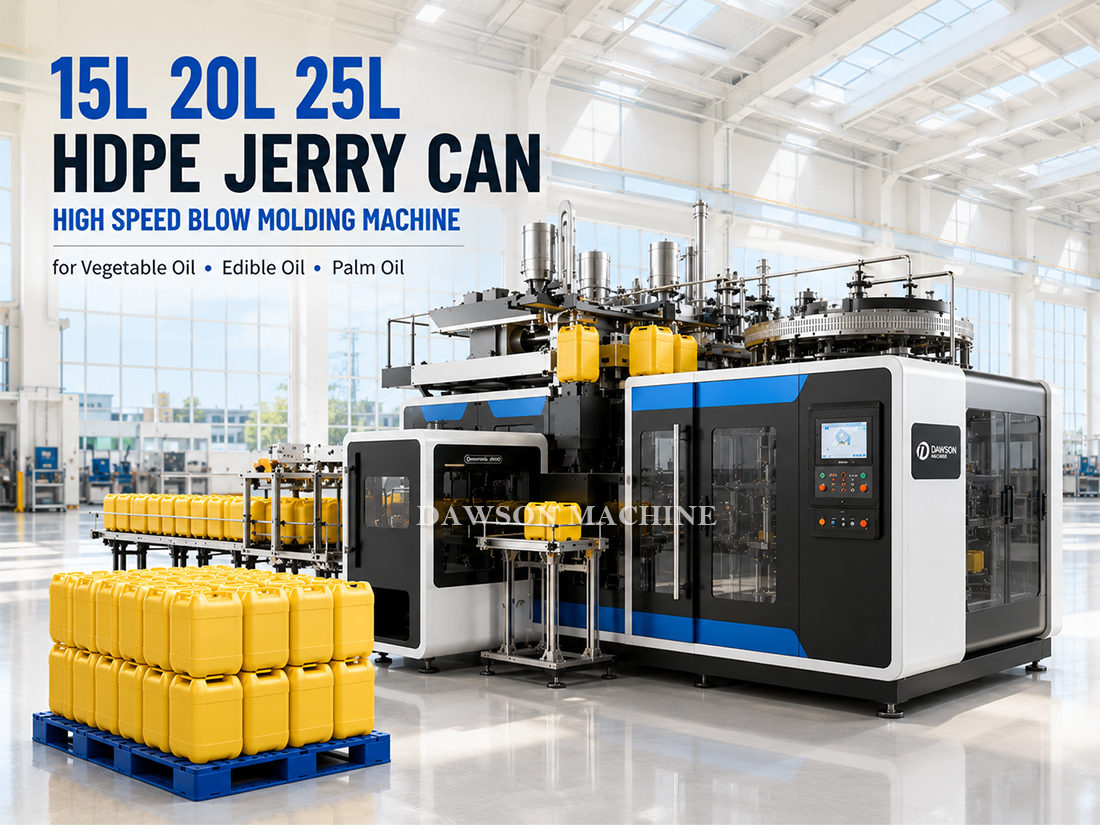

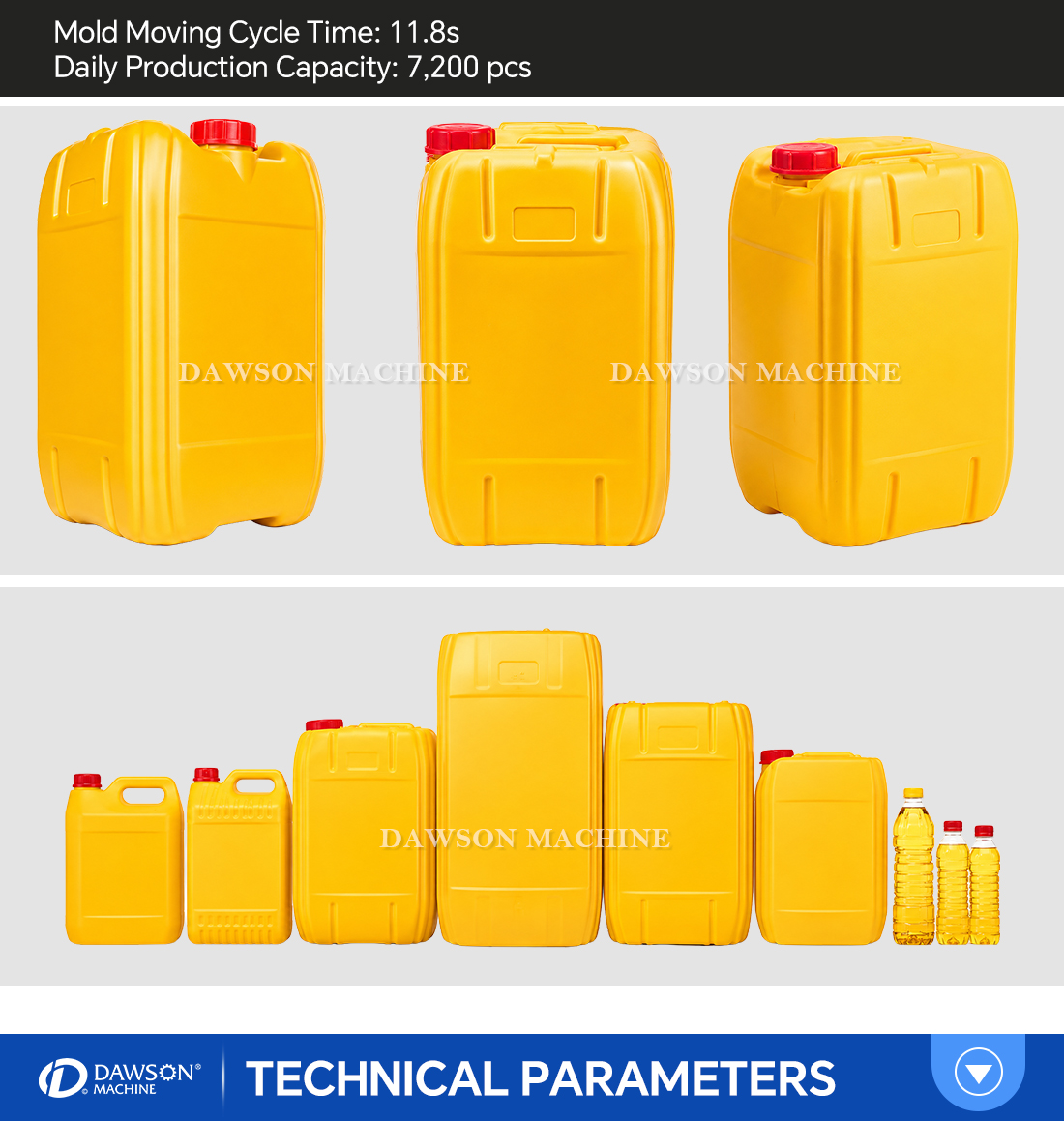

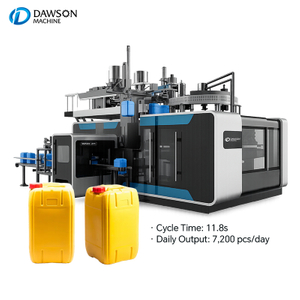

With 6 patented technologies, this machine is designed for 1L–25L jerry cans, bottles, and irregular-shaped products.
Powered by Inovance control and motion systems, it delivers stable operation, automatic production, high efficiency, and energy saving compared with traditional hydraulic machines.
Max. Product Volume | 25L |
Output | 7000 pcs/24h (about 20L 1000g) |
Clamping Force | 260KN |
Die Head | 3-Layer Die Head |
Heating Power | 96KW |
L/D Ratio (Standard) | 28:1 |

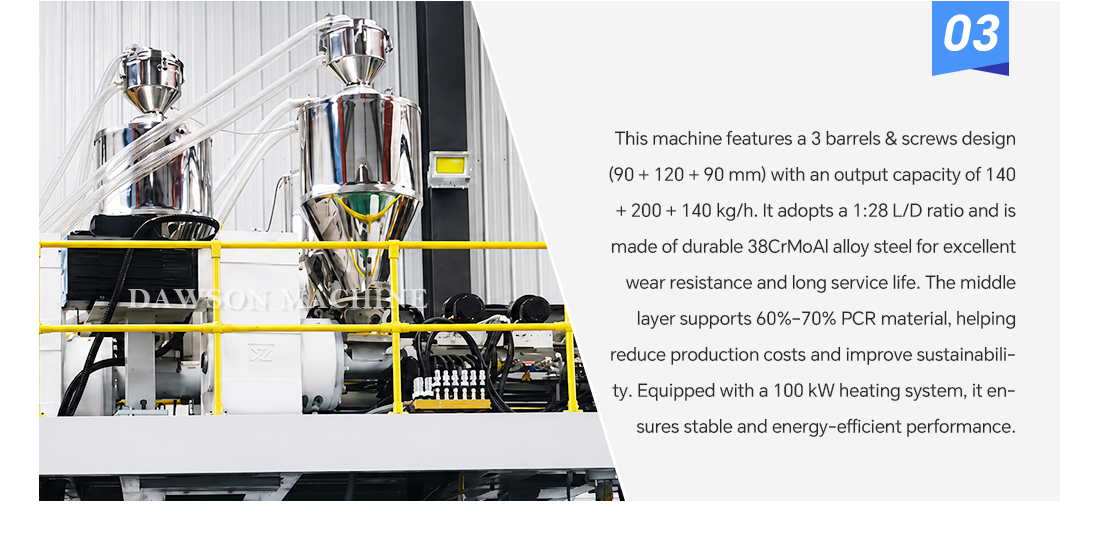

Plasticizing Capacity | 140+200+140kg=480KG |
Overall Dimension (L x W x H) | 10*7.5*4.5 M (with trimming device) |
Main Machine Weight | Rotary Table 30T + Extruder 18T = Total 48T (approx.) |
Main Motor PowerOil Pump | 8KW+130KW+78KW=286KW |
Rotary Table Power | 36KW |
Total Installed Power | 445KW |
