| Blow Molding Type: | |
|---|---|
| Maximum Application Size: | |
| Hot Knife Power: | |
| Main Oil Pump Motor: | |
| Dry Cycle Time: | |
| Clamping Force: | |
| Language settings: | |
| Quantity: | |
DAWSON

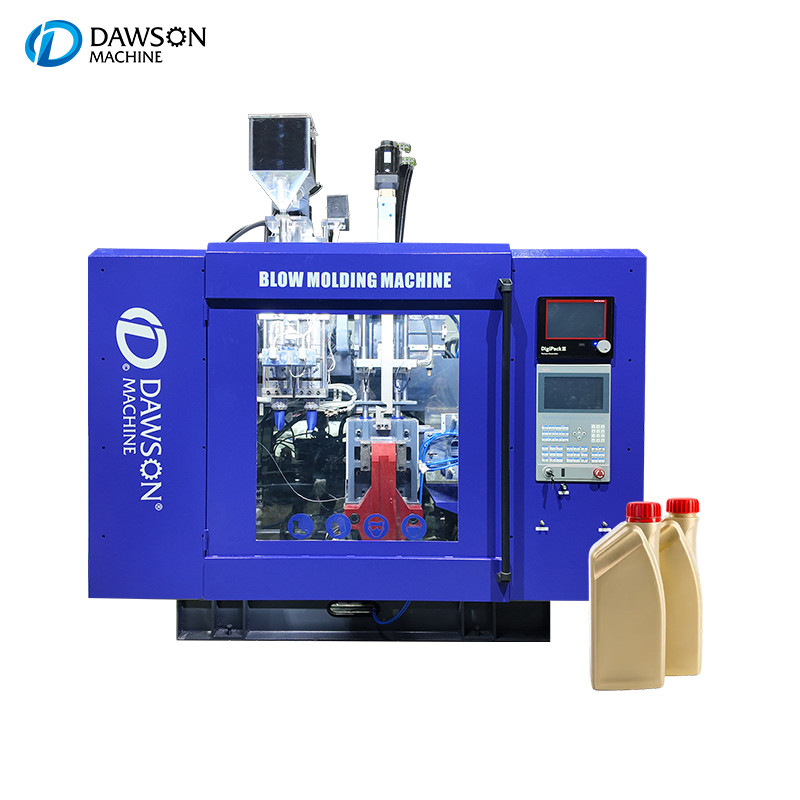

0-5L Blow Molding Machine by DAWSON
Engineered for precision and efficiency, our 0-5L blow molding machine delivers reliable performance for producing high-quality plastic containers. With a cycle time of just 23–24 seconds, it achieves an hourly output of 300 pieces and a daily production capacity of 7,200 units, perfectly meeting mid-to-high volume manufacturing needs.
Designed for versatility, this machine supports the production of 0–5L containers, including chemical bottles, detergent jugs, and household packaging, with consistent wall thickness and minimal material waste. Built with durable components and advanced control systems, it ensures stable operation, low maintenance, and long service life.
Backed by DAWSON’s 18+ years of expertise in plastic machinery, it comes with full technical support, installation guidance, and responsive after-sales service. Trusted by customers in over 45 countries, this machine is your ideal solution for cost-effective, high-quality blow molding production.
PARTS NAME | UNIT | SINGLE LAYER | 2 LAYERS | 3 LAYERS |
Screw Diameter | 65 | 40 | 40 | |
Screw L/D Ratio | L/D | 26 | 24 | 24 |
Extrusion Output(PE) | kg/h | 60 | 40 | 40 |
Inverter Motor | KW | 18.5 | 5.5 | 5.5 |
Heating Zones | Stage | 3 | 3 | 3 |
Heating Power | KW | 11 | 4.8 | 4.8 |
Mold Clamping Stroke | mm | 200-570 | ||
Mold Moving Stroke | mm | 480 | ||
Clamping Force | KN | 70 | ||
Dry Cycle Time | S | 7 | ||
Main Oil Pump Motor | KW | 7.5 | ||
Hot Knife Power | KW | 2 | ||
Parison Wall Control Points | Points | 100 | ||
Wall Thickness Motor | KW | 4 | ||
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic ma-
chinery, injection molding machine, blow molding machine, PET blow molding machine, injec-
tion blow molding machine, during the past 18 years, we always force our energy into new
areas of plastic machinery, plastic packaging machinery, to update the technology, to learn ad-
vanced experience, to confirm new theory and new design, we are forming a unique competi-
tive advantage of our owns. The machines from our company carry good quality and effective
after-sales service, upon the market, customers from more than 45 countries, we provide com-
plete solution for your plastic industry business, as well as all sorts of technical support & af-
ter-sale services!
