| Blow Molding Type: | |
|---|---|
| Maximum Application Size: | |
| Hot Knife Power: | |
| Main Oil Pump Motor: | |
| Dry Cycle Time: | |
| Clamping Force: | |

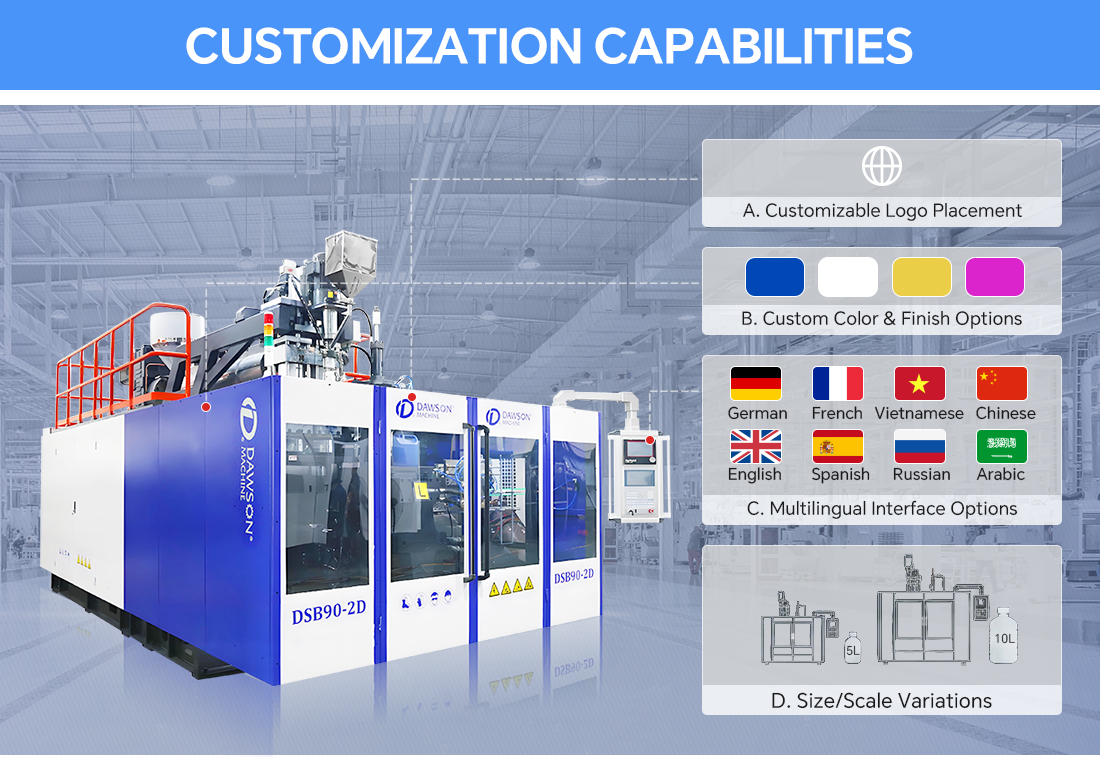

| Language settings: | |
| Quantity: | |
DAWSON
PARTS NAME | UNIT | SINGLE LAYER | 2 LAYERS | 3 LAYERS |
Screw Diameter | 65 | 40 | 40 | |
Screw L/D Ratio | L/D | 26 | 24 | 24 |
Extrusion Output(PE) | kg/h | 60 | 40 | 40 |
Inverter Motor | KW | 18.5 | 5.5 | 5.5 |
Heating Zones | Stage | 3 | 3 | 3 |
Heating Power | KW | 11 | 4.8 | 4.8 |

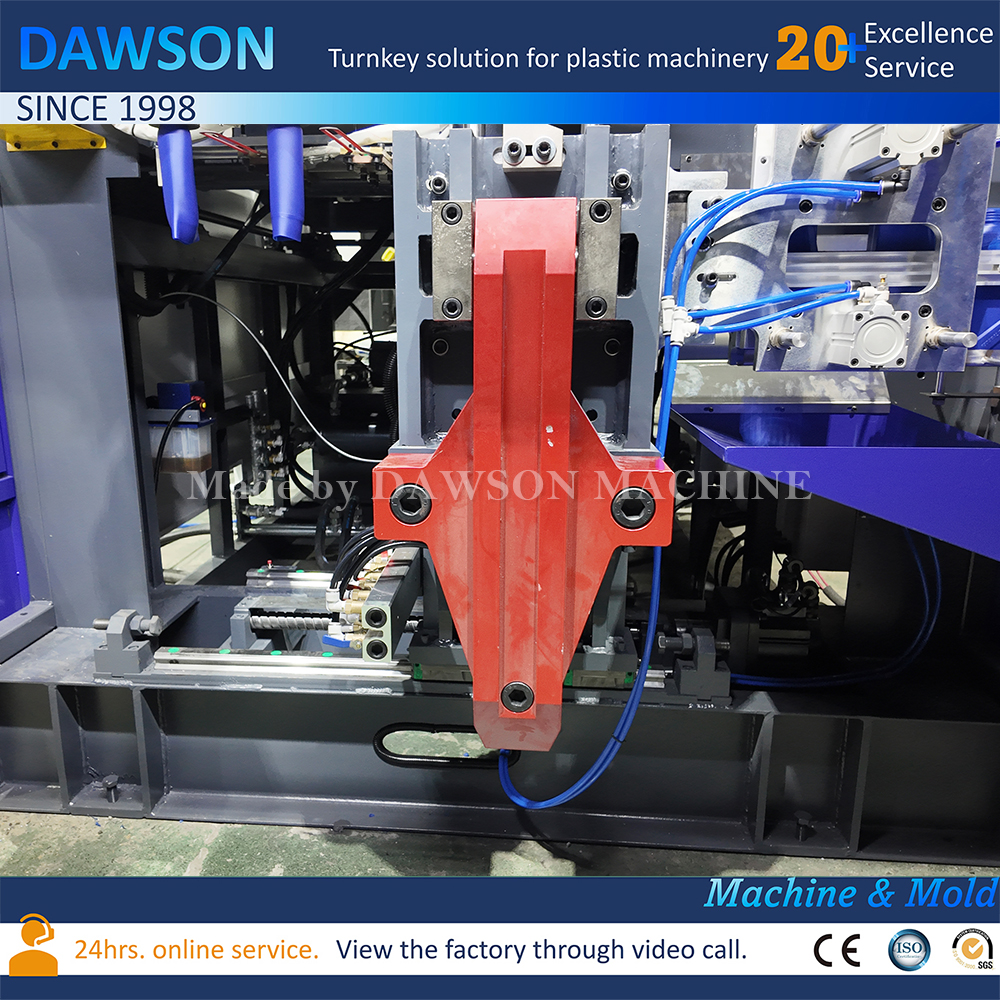

Mold Clamping Stroke | mm | 200-570 | ||
Mold Moving Stroke | mm | 480 | ||

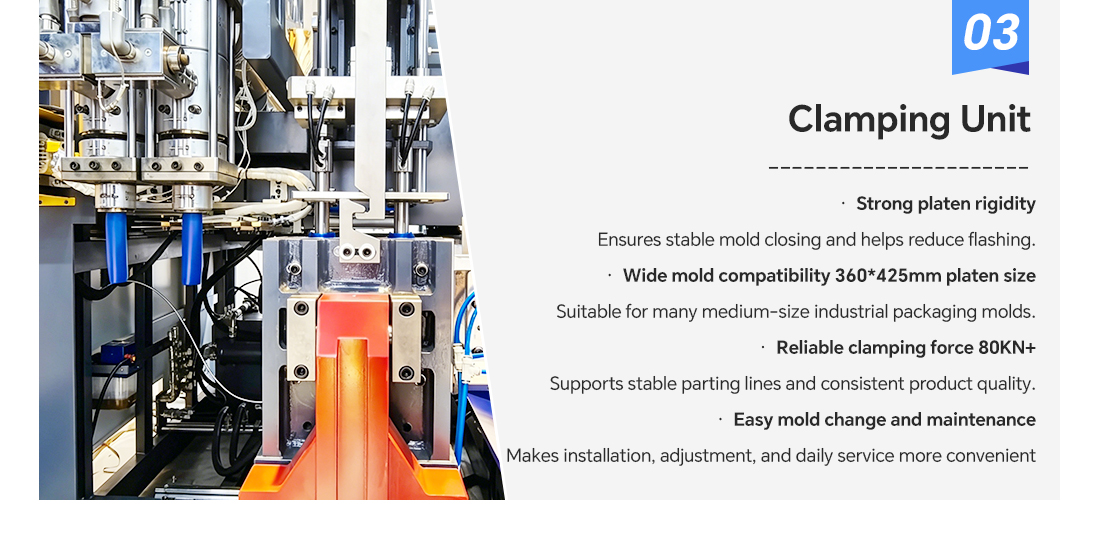

Clamping Force | KN | 70 | ||
Dry Cycle Time | S | 7 | ||
Main Oil Pump Motor | KW | 7.5 | ||
Hot Knife Power | KW | 2 | ||

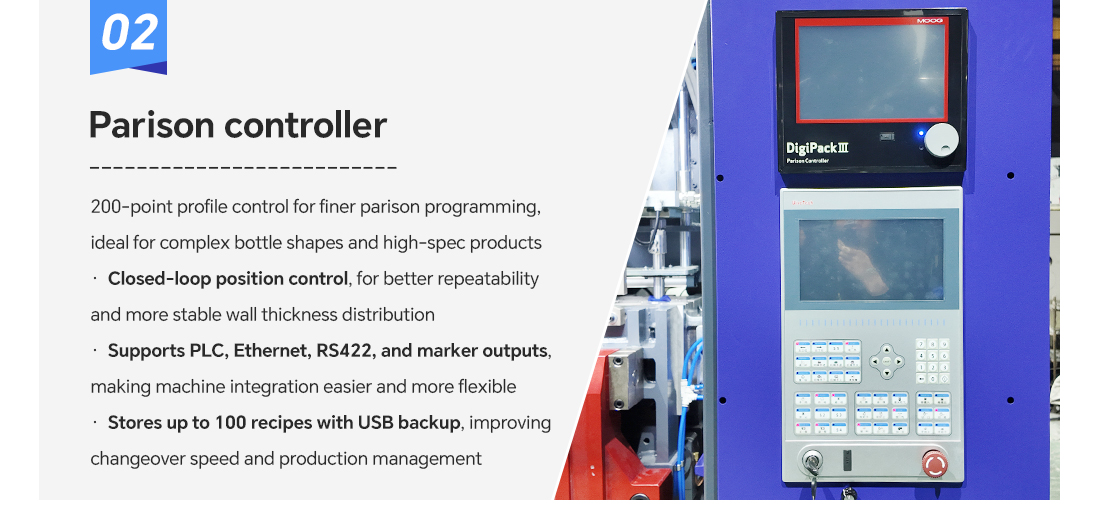

Parison Wall Control Points | Points | 100 | ||
Wall Thickness Motor | KW | 4 | ||

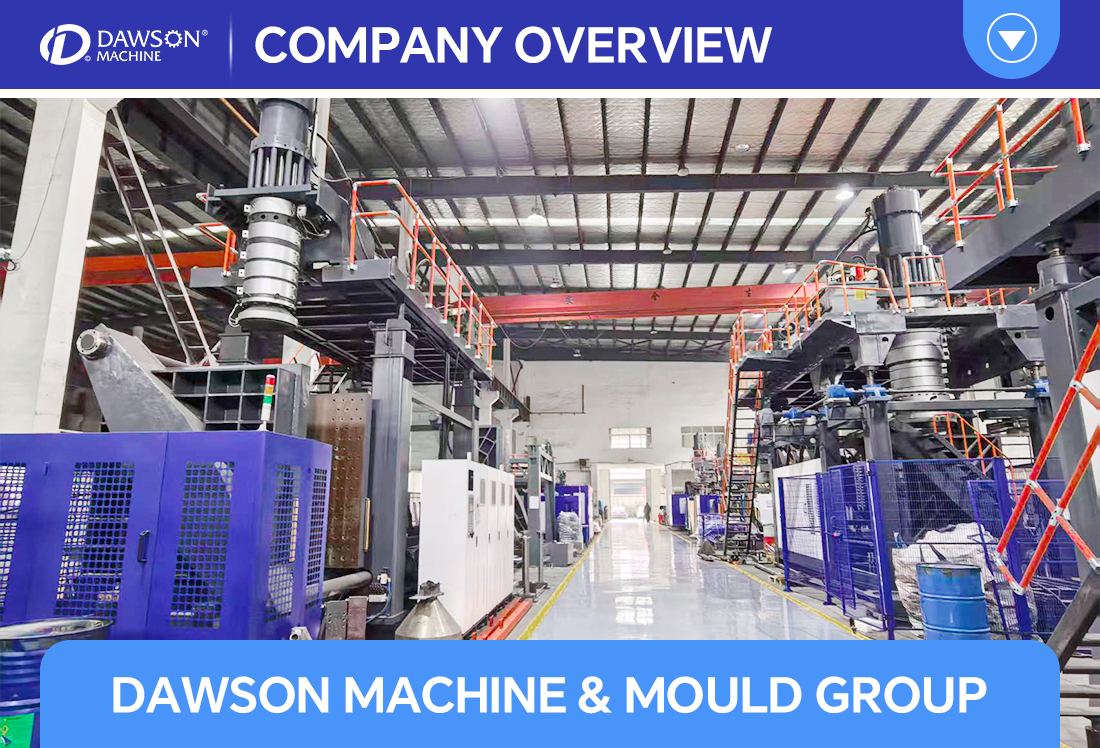

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic ma-
chinery, injection molding machine, blow molding machine, PET blow molding machine, injec-
tion blow molding machine, during the past 18 years, we always force our energy into new
areas of plastic machinery, plastic packaging machinery, to update the technology, to learn ad-
vanced experience, to confirm new theory and new design, we are forming a unique competi-
tive advantage of our owns. The machines from our company carry good quality and effective
after-sales service, upon the market, customers from more than 45 countries, we provide com-
plete solution for your plastic industry business, as well as all sorts of technical support & af-
ter-sale services!
