DAWSON

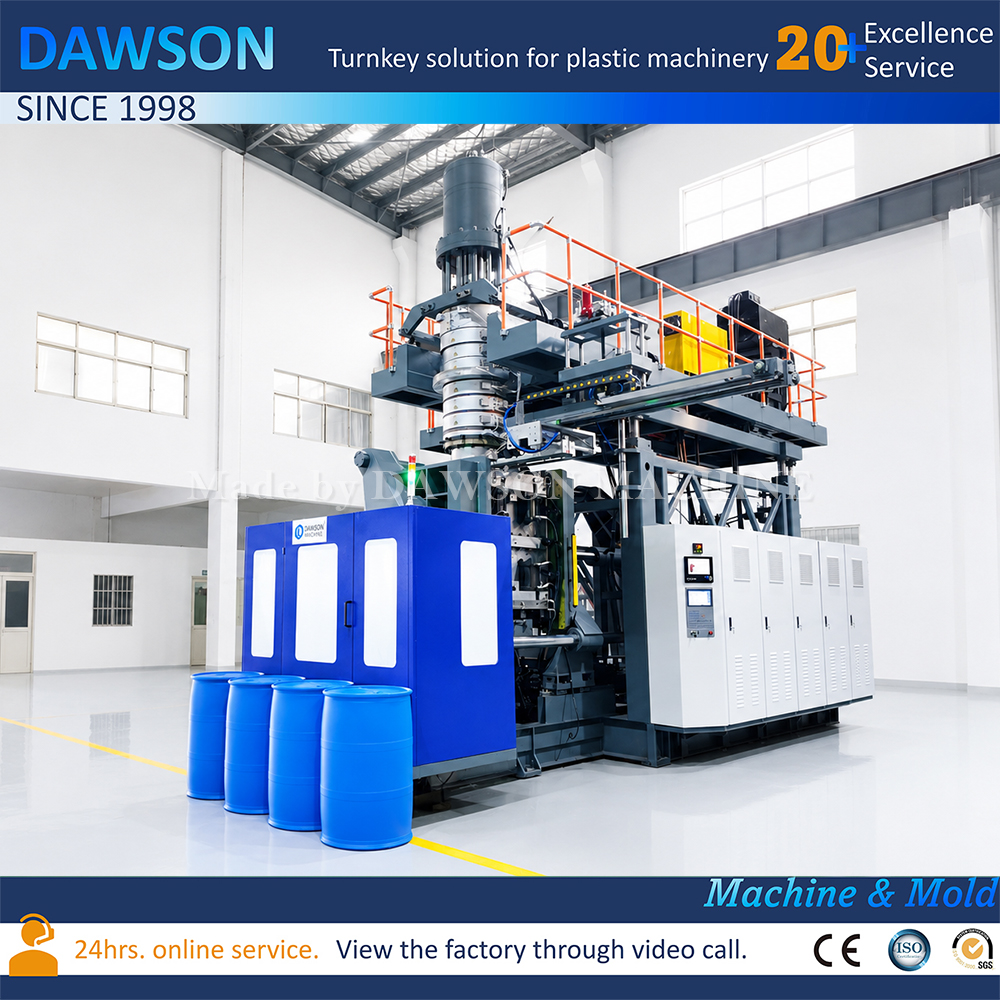

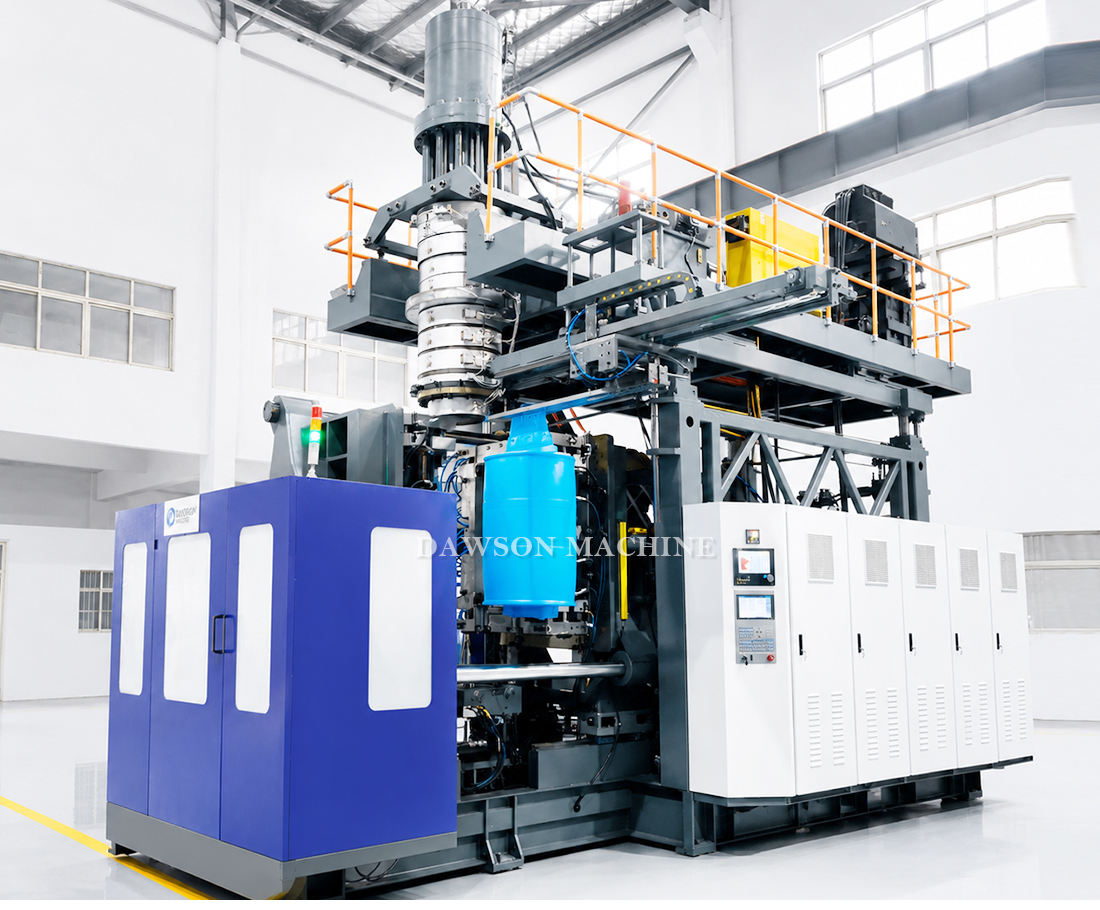

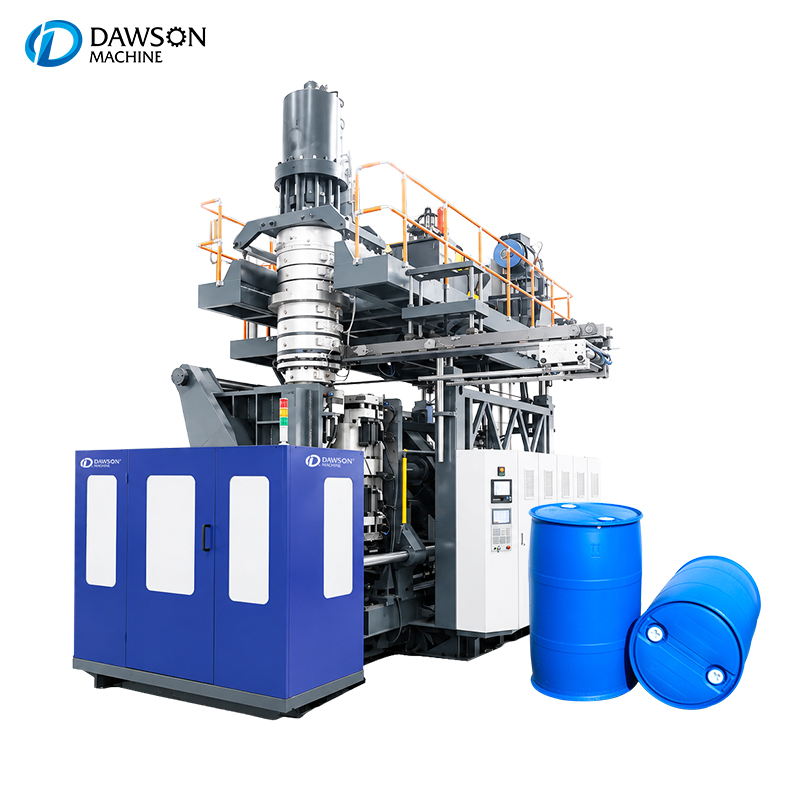

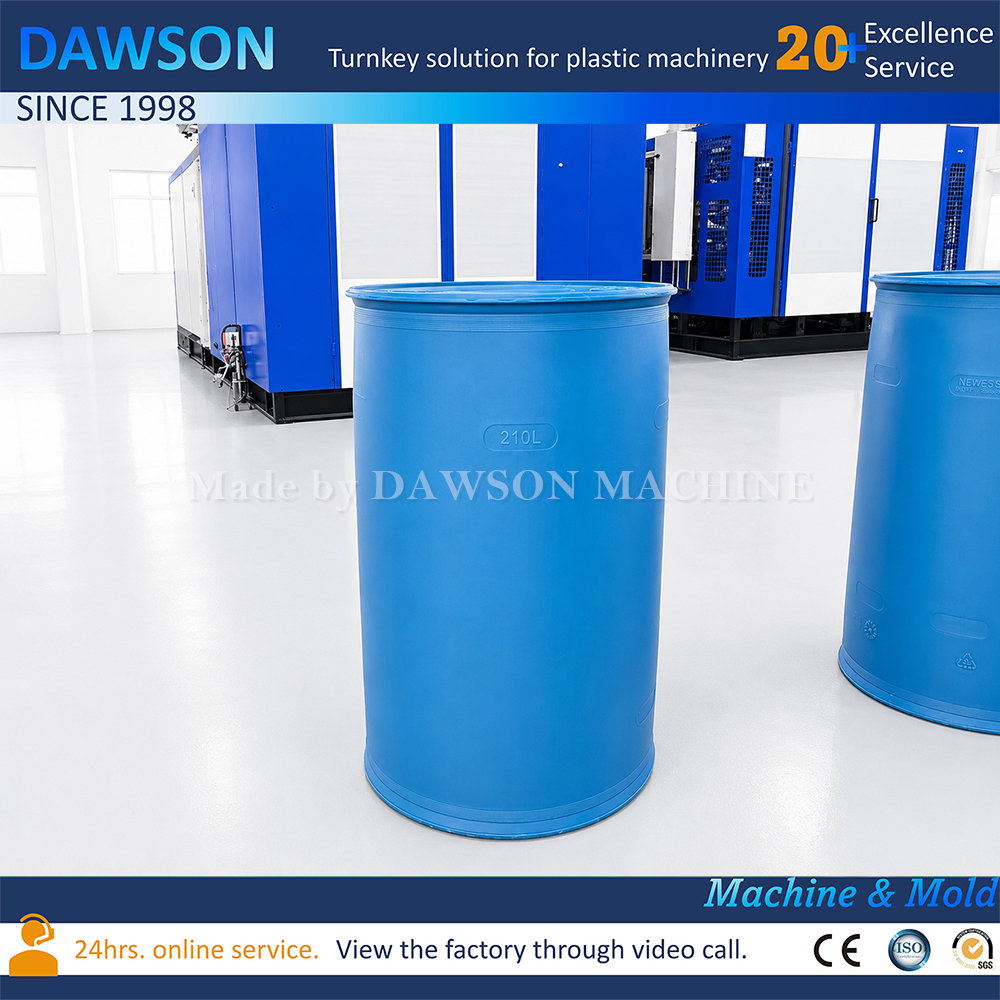

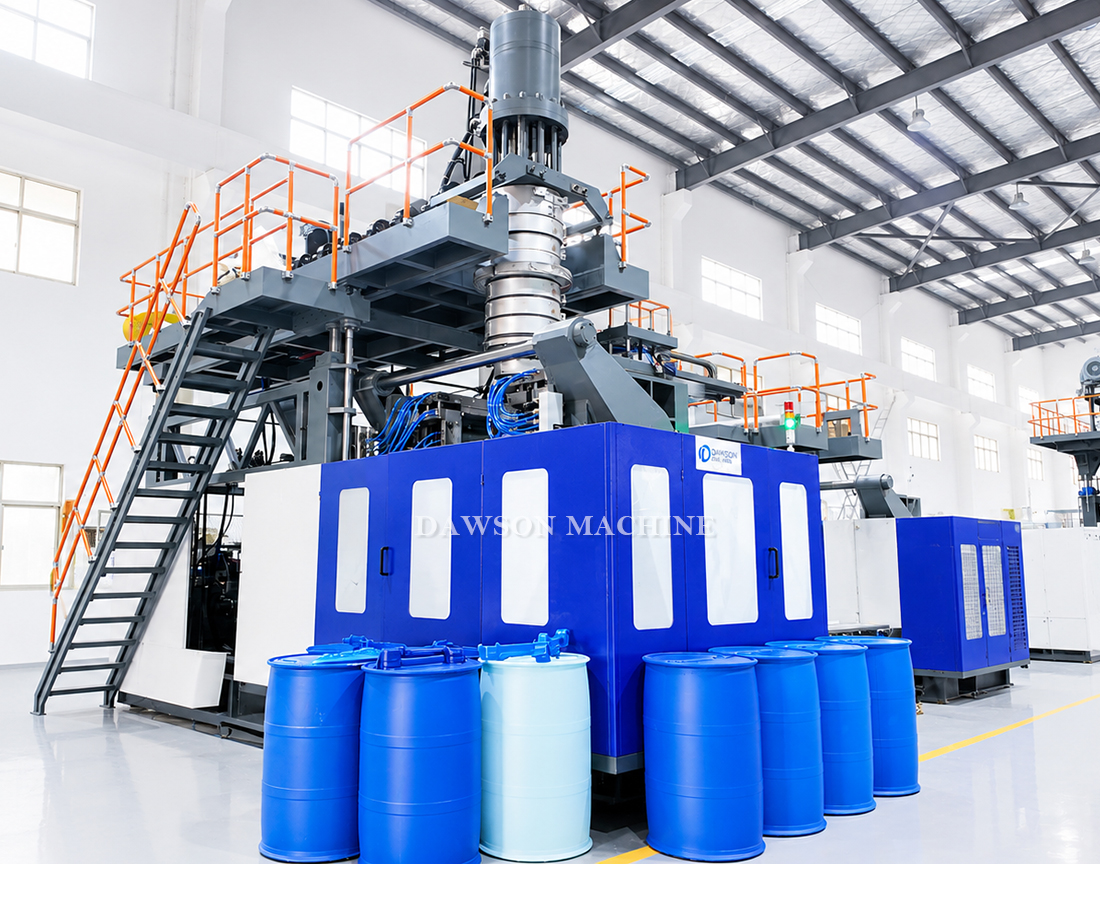

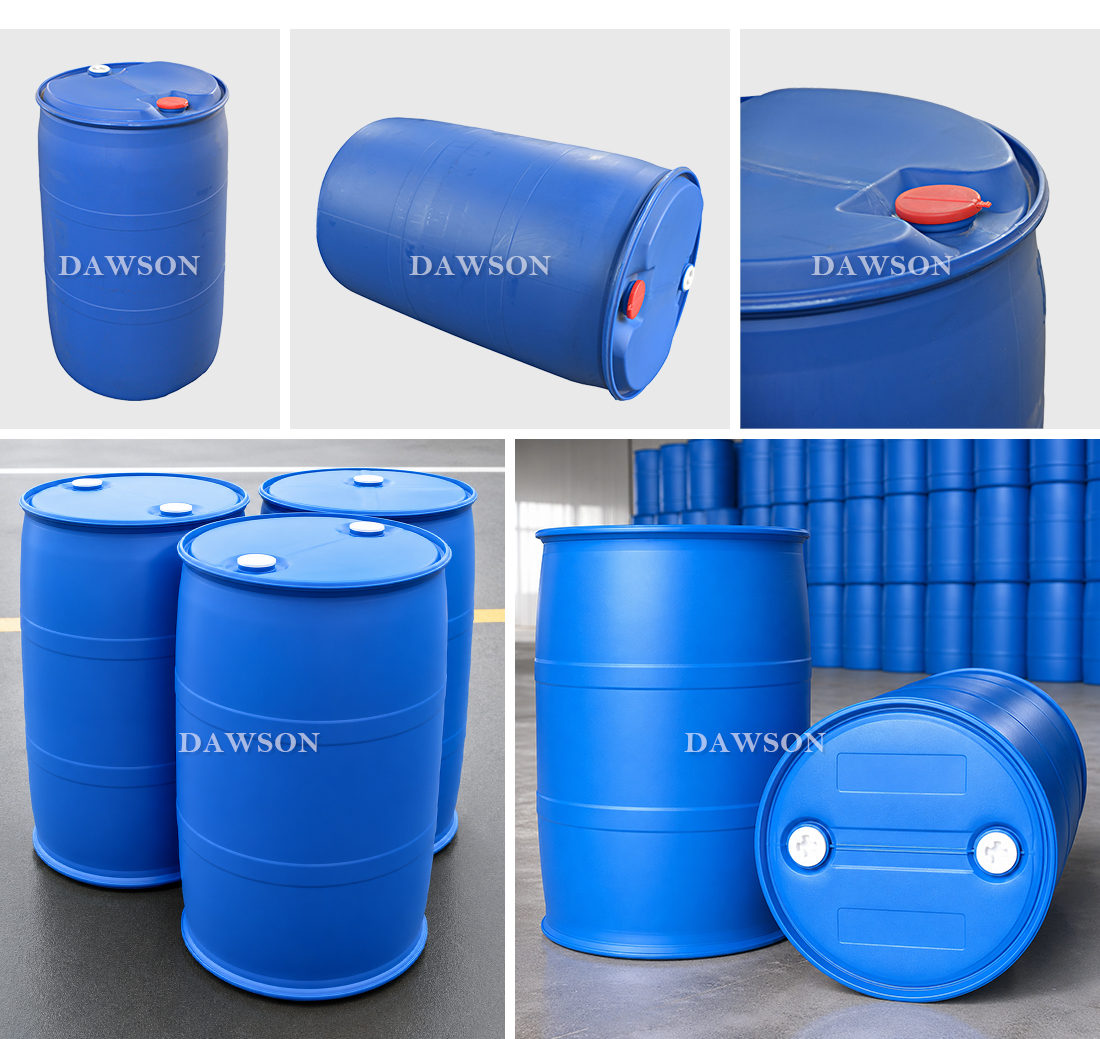

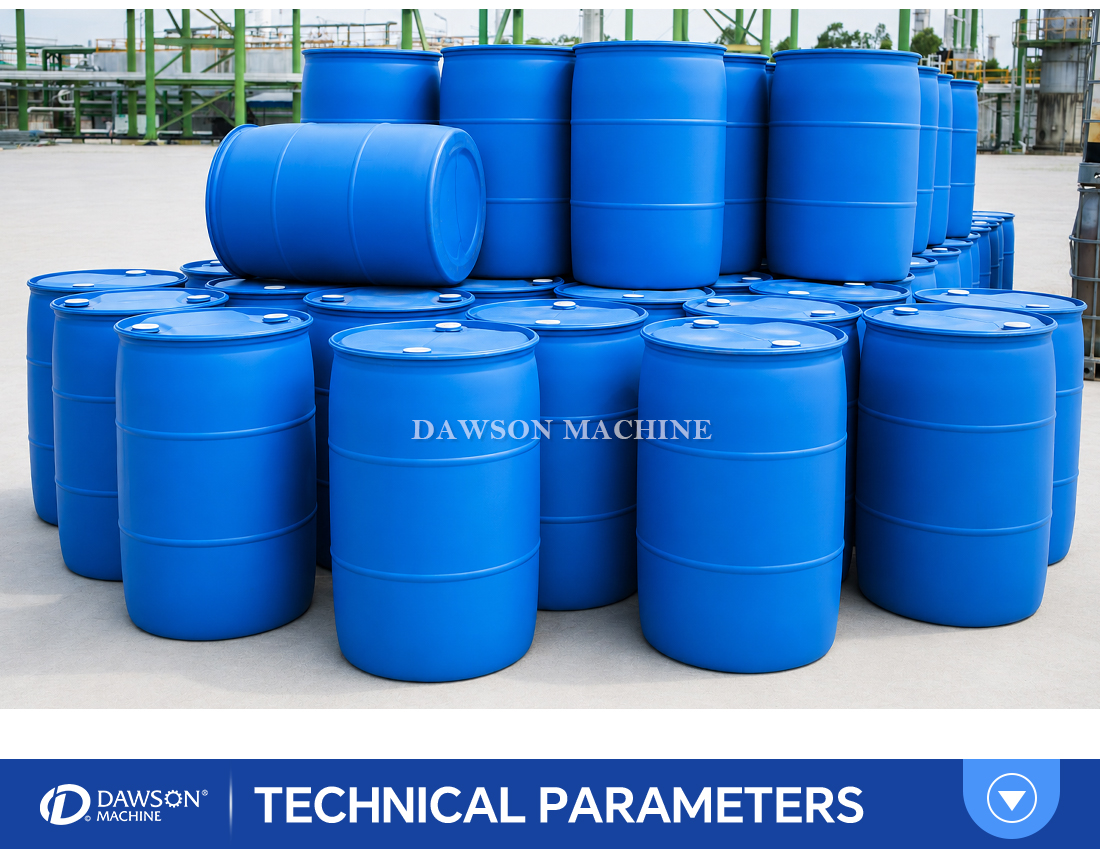

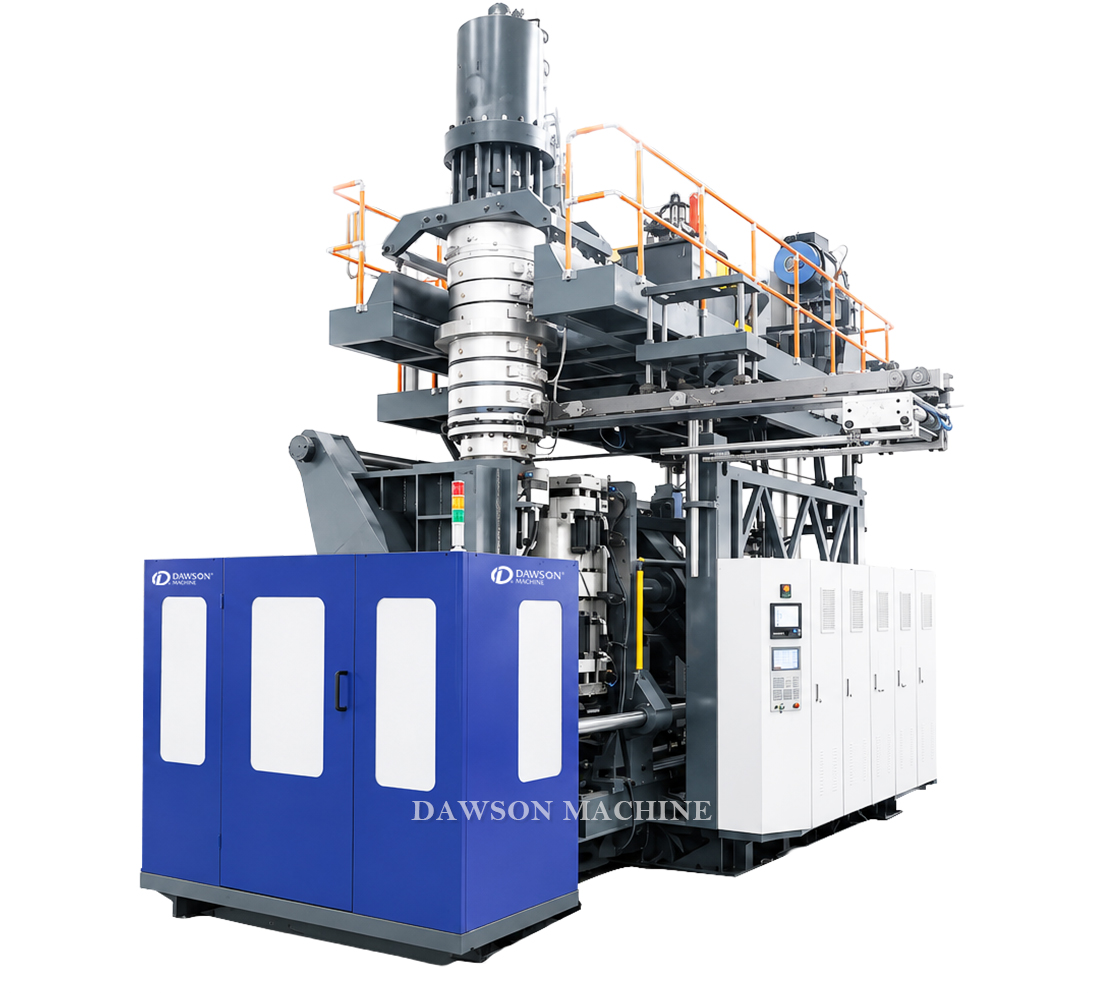

PRECISION FOR EVERY 200L DRUM
Built for consistent wall thickness, superior strength and stable mass production. A reliable solution for industrial drum manufacturing.
Basic parameters | Suitable material | HMWHDPE |
Max volume | 250L | |
Output capacity | 18~22 pcs/h | |
Size | 9.5x4.1x6.5(M) | |
Weight | 36T | |
Total power | 228KW | |

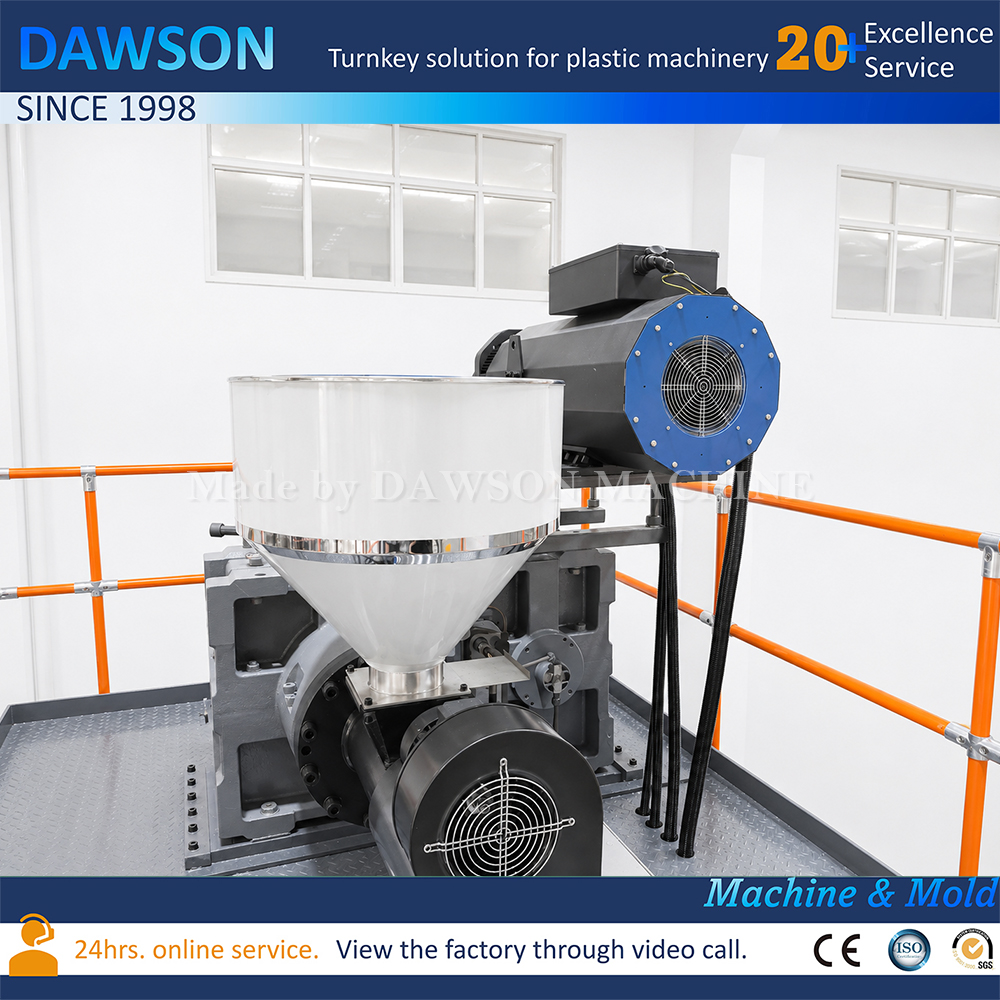

Plasticizing system | Summarize | High efficient low power consumption plasticizing system, transducer control, self-protect function when started at low temperature |
Reducer | Hard finishing, High intension, Low noise reducer | |
Screw | φ120mm,L/D ratio 32, 38CrMoALA Cooling system available | |
Output of screw | 380kg/h (HMWHDPE) | |
Heating Zone | 5 Aluminum Heater Automatic heating | |
Heating power | 24KW/H | |
Extrusion Motor | 132KW | |

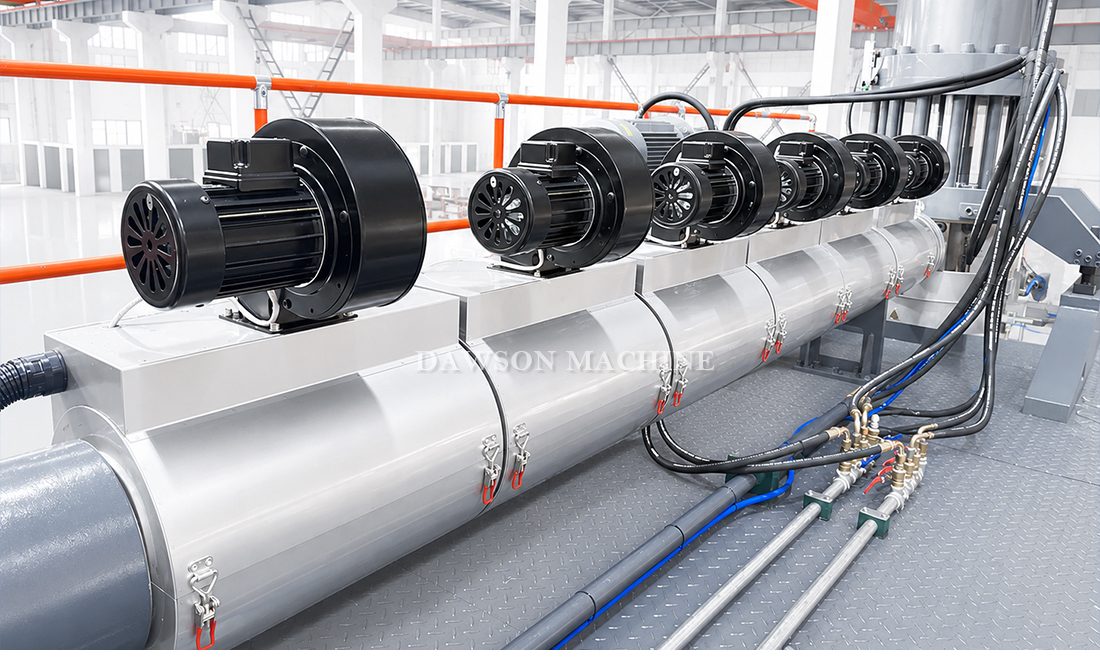

Cooling Fan | 5 zone Automatic cooling | |

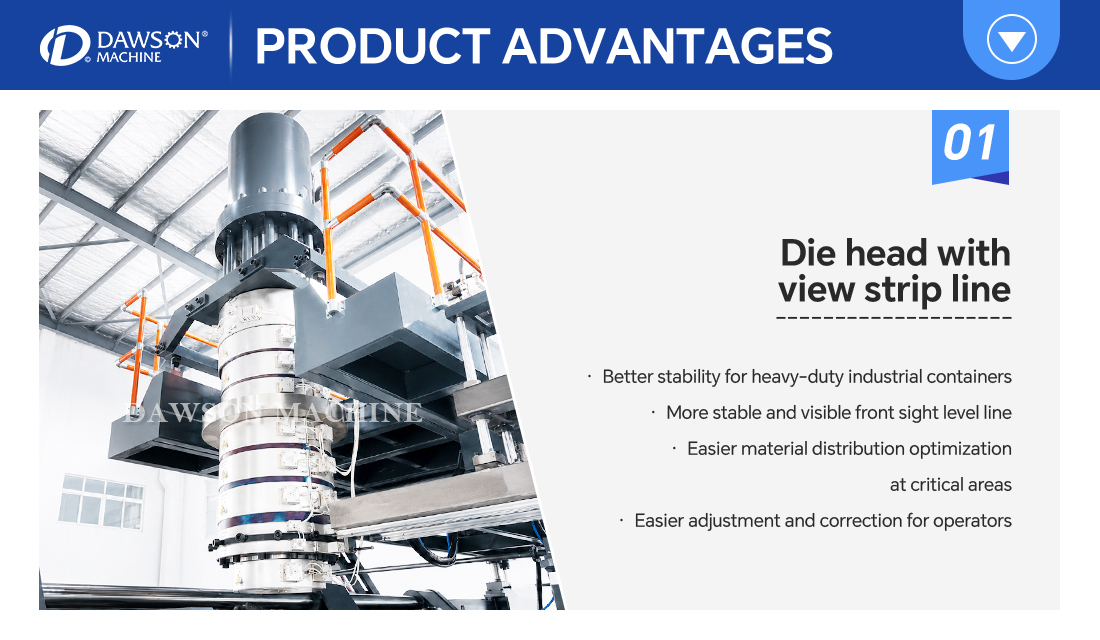

Extrusion system | Summarize | High-grade alloy steel, center feeding |
Die head number | 1 | |
Max die mouth | φ620mm | |
Heating zone | 5-6 Stainless steel heating cycle | |
Die head heating power | 20KW |
