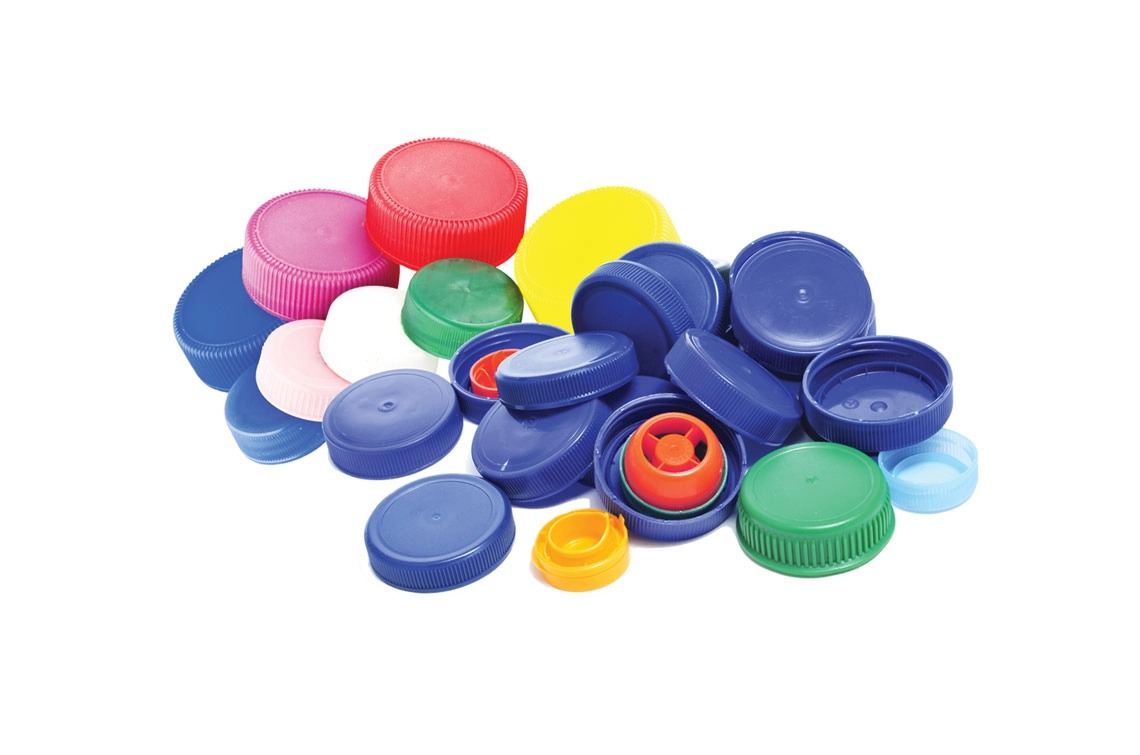

An injection molding machine is a cornerstone of modern manufacturing, playing a critical role in mass-producing plastic components for countless industries. From automotive dashboards to medical syringes, and consumer electronics casings to bottle caps, this powerful equipment is responsible for shaping everyday items with unparalleled precision and repeatability. But what exactly is an injection molding machine, and how does it work? Let's dive deep into its mechanics, applications, components, and benefits.
Injection molding is a manufacturing process used to produce parts by injecting molten material into a mold cavity. Typically, this process uses thermoplastic polymers, but it can also involve metals (in powder metallurgy), glasses, or elastomers. The process begins by heating the raw material until it becomes a viscous liquid. Then, it is injected under high pressure into a closed mold where it cools and solidifies into the final product.
This technique allows for high-volume production of intricate and dimensionally consistent components. Whether it's thousands or millions of parts, the injection molding process ensures each piece meets strict quality and tolerance standards, making it a preferred choice across industries.
An injection molding machine consists of several critical subsystems that work in concert to produce molded parts efficiently and precisely. These include:
| Component | Function |
|---|---|
| Injection Unit | Melts and injects plastic into the mold. |
| Clamping Unit | Holds the mold tightly closed during injection. |
| Control System | Regulates parameters like pressure, temperature, and timing. |
| Hydraulic or Electric Drive | Powers the injection and clamping mechanisms. |
Let's explore these in more depth:
The injection unit is where the plastic granules are melted and transformed into a viscous liquid. It includes a hopper, barrel, and screw mechanism. The screw rotates and pushes material forward while heaters along the barrel melt it. Once the desired quantity is ready, the screw acts like a plunger, forcing the material into the mold at high pressure.
The clamping unit holds the mold in place and exerts a force to keep it closed during injection and cooling. Without sufficient clamping force, molten plastic could leak out, causing defects. The size and complexity of the mold dictate the strength and size of the clamping system required.
Modern machines use programmable logic controllers (PLCs) or computerized control systems to oversee every aspect of the molding cycle. They monitor and control variables like screw rotation speed, mold temperature, injection pressure, and cooling time—ensuring repeatability and part quality.
The injection molding cycle involves a series of systematic stages, each contributing to the overall efficiency and precision of the part being produced. Here's how it works:
The first step is closing the mold using the clamping unit. This ensures both halves of the mold are sealed tightly, preventing any escape of the molten plastic during injection.
Next, the molten plastic is injected into the mold cavity through the sprue. This step requires immense pressure (often up to several thousand psi) to ensure the mold is filled entirely, especially for complex geometries.
Once the material is inside the mold, it begins to cool and solidify. The mold is often fitted with cooling channels to expedite this process. Proper cooling is vital to minimize warping, sink marks, or internal stresses.
After the material has hardened, the mold opens and ejector pins push the finished part out. The mold then closes again, ready to begin the next cycle. This entire cycle can take anywhere from a few seconds to a couple of minutes, depending on the part size and complexity.
Injection molding machines can be broadly categorized based on their drive system, each with unique advantages:
These are the most traditional and widely used machines. They utilize hydraulic cylinders to power both the injection and clamping functions. Hydraulic machines are robust and capable of producing large, heavy parts but may be less energy-efficient.
Electric machines use servo motors for all major functions. They are known for high precision, repeatability, and energy efficiency. These are ideal for industries where cleanroom conditions are needed, such as medical or electronics manufacturing.
Combining the strengths of both hydraulic and electric systems, hybrid machines provide a balance between performance, speed, and energy savings. They're increasingly popular in high-demand production environments.
Injection molding machines offer several key benefits that make them indispensable in modern manufacturing:
High Efficiency: Capable of producing thousands of parts per hour with consistent quality.
Design Flexibility: Able to mold complex shapes and features with precision.
Material Versatility: Compatible with a wide range of thermoplastics and additives.
Reduced Waste: Most systems recycle excess material from sprues or runners.
Low Labor Costs: Highly automated, reducing the need for manual intervention.
The cost-efficiency and scalability of injection molding make it suitable for both low-volume prototyping and full-scale mass production.
Despite its many advantages, injection molding is not without challenges. Engineers must account for variables that can impact product quality, such as:
Plastic shrinks as it cools. Poor control can lead to warping or dimensional inaccuracies. Proper mold design and cooling time adjustment help mitigate this.
A short shot occurs when the mold does not fill completely. Causes may include low injection pressure, cold mold temperature, or improper material viscosity.
Flashing happens when molten plastic escapes the mold cavity, creating thin protrusions on the final product. It's typically due to excessive injection pressure or worn-out mold parts.
Understanding these issues and optimizing the process parameters is essential for maintaining product integrity and machine uptime.
Most commonly used materials are thermoplastics such as ABS, PP, PE, PC, and nylon. Specialty grades include flame-retardant or UV-resistant variants.
The cycle time can range from 10 seconds to 2 minutes, depending on the complexity, size, and material.
With regular maintenance, a high-quality machine can last 15 to 25 years or more, depending on usage intensity.
Yes, recycled plastics can be used, especially for non-critical parts. However, material consistency and purity must be carefully managed.
Injection molding machines are truly the unsung heroes of modern production. They deliver unmatched efficiency, precision, and scalability—transforming raw material into complex components in seconds. By understanding how these machines work and how to optimize their use, manufacturers can gain a significant edge in quality, cost control, and time-to-market.
Whether you're an engineer, product designer, or factory manager, recognizing the full potential of injection molding machines is essential for driving innovation and meeting the demands of today's fast-paced, quality-conscious world.
