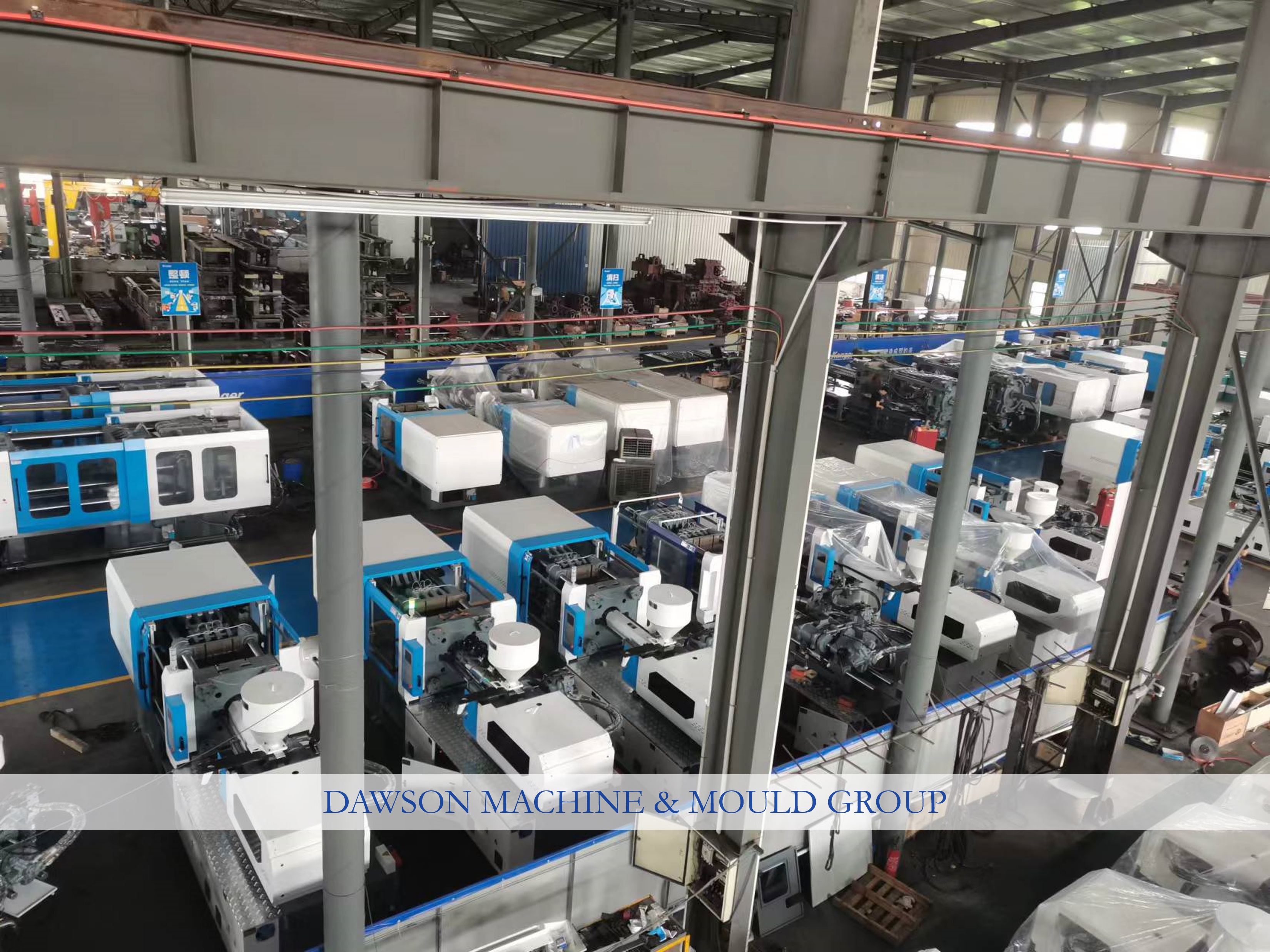

Within the intricate ecosystem of plastic manufacturing, where operational efficiency, dimensional accuracy, and material adaptability are critical success factors, modern injection molding machines stand as a testament to engineering excellence. These industrial workhorses, refined through decades of technological evolution, have cemented their role as indispensable assets across diverse manufacturing sectors, capable of producing components ranging from micro-precision medical parts to large-scale structural assemblies. Embodying a synergy of advanced mechatronics, material science integration, and ergonomic design, contemporary injection molding machines set the benchmark for consistent production quality in high-volume manufacturing environments.
At the operational nucleus of injection molding machines lies the clamping unit, a sophisticated assembly engineered to maintain mold integrity during the high-pressure injection phase. Utilizing either hydraulic, servo-electric, or hybrid actuation systems, these clamping mechanisms generate forces ranging from 50kN to 50,000kN, precisely calibrated to counteract the injection pressure exerted by molten polymer. The toggle-type clamping mechanism, favored for its mechanical advantage and energy efficiency, employs a series of pivot points to multiply applied force, ensuring uniform distribution across the mold platens. This uniform force application is critical for preventing flash formation—excess plastic seepage between mold surfaces—and maintaining part dimensional stability, particularly in complex geometries with tight tolerance requirements (±0.01mm in precision applications).
Modern clamping systems integrate advanced linear guides and position encoders, enabling micron-level platen alignment. This precision is indispensable when processing engineering resins with low melt flow indices, such as polyphenylene sulfide (PPS) or liquid crystal polymers (LCP), where even minor mold misalignment can cause material flow irregularities. The adaptive clamping force control, a feature of state-of-the-art systems, dynamically adjusts pressure based on real-time sensor data, optimizing energy consumption while ensuring consistent mold closure across production cycles.
Complementing the clamping system is the injection unit, a sophisticated assembly designed to manage the complex thermomechanical transformation of polymeric materials. The screw-barrel assembly, typically constructed from nitrided steel or bimetallic alloys (for abrasion resistance), facilitates three distinct operational phases: feeding, compression, and metering. During the feeding phase, granular resin is conveyed from the hopper via screw rotation, with flight depth gradually decreasing to compress material. In the compression zone, mechanical shear and controlled barrel heating (via cartridge heaters and cooling jackets) initiate polymer melting, with temperatures precisely regulated (±1°C) to match material-specific melting points—ranging from 160°C for polyethylene to 380°C for high-performance polyimides.
The metering zone ensures homogeneous melt quality through intensive mixing, often enhanced by specialized screw geometries such as barrier screws or mixing sections with Maddock elements. This homogenization is critical for eliminating viscosity gradients, which could otherwise lead to part defects like weld lines or sink marks. Injection velocity and pressure profiles, controlled via closed-loop servo-hydraulic or all-electric systems, are programmable with microsecond precision, enabling processing of shear-sensitive materials like polyvinyl chloride (PVC) at low velocities (5mm/s) and high-flow polymers like polypropylene at velocities exceeding 300mm/s.
The operational precision of modern injection molding machines is governed by sophisticated control systems leveraging industrial-grade PLCs (Programmable Logic Controllers) and multi-axis motion controllers. These systems process data from an array of sensors—including pressure transducers, thermocouples, and linear variable differential transformers (LVDTs)—at sampling rates exceeding 1kHz, enabling real-time adjustment of process parameters. Adaptive control algorithms, utilizing machine learning models trained on historical production data, can predict and compensate for process drift caused by factors like material batch variations or ambient temperature fluctuations.
Human-machine interfaces (HMIs) feature high-resolution touchscreens displaying critical process variables in real time, with advanced visualization tools such as pressure-volume-temperature (PVT) curve overlays for process optimization. Recipe management systems store hundreds of material-specific parameter sets, enabling rapid changeovers between production runs. For Industry 4.0 integration, these control systems support communication protocols like OPC UA and MQTT, facilitating data exchange with manufacturing execution systems (MES) for production monitoring and predictive maintenance.
The mechanical durability of injection molding machines stems from robust frame designs utilizing finite element analysis (FEA) optimized cast iron or welded steel structures. These frames exhibit exceptional rigidity (less than 0.1mm deflection under full clamping force) to maintain platen parallelism during operation. Critical wear components—such as screw tips, check rings, and guide bushings—are constructed from wear-resistant materials like tungsten carbide or Stellite alloys, ensuring service lives exceeding 100,000 production cycles in standard applications.
Vibration damping systems, incorporating pneumatic isolators or tuned mass dampers, minimize resonant frequencies that could disrupt process stability. This structural integrity is particularly important for micro-molding applications, where machine-induced vibrations can compromise part dimensional accuracy in components weighing less than 0.1g.
Contemporary injection molding machines prioritize energy efficiency through the adoption of servo-electric drives, which consume energy proportional to actual load rather than running at constant speed. All-electric machines achieve energy savings of 30-60% compared to traditional hydraulic systems, with regenerative braking systems capturing kinetic energy during platen movement. Heat recovery systems redirect waste heat from barrel heaters to preheat incoming resin, reducing overall energy consumption by up to 15%.
Material efficiency is enhanced by precision shot volume control, minimizing scrap rates to less than 1% in optimized processes. Compatibility with recycled materials, including post-consumer recycled (PCR) resins with variable melt flow characteristics, is facilitated by advanced material handling systems with drying capabilities and in-line viscosity monitoring.
The operational versatility of modern injection molding machines enables processing of a vast spectrum of polymeric materials, from commodity thermoplastics to high-performance composites. Specialized configurations allow for processes like gas-assisted injection molding (GAIM), where nitrogen gas is injected to form hollow sections, reducing material usage by up to 30% while improving part rigidity. Microcellular injection molding, utilizing supercritical fluid technology, produces parts with fine cellular structures, reducing weight by 10-20% without sacrificing mechanical properties.
Multi-material molding capabilities, including overmolding and coinjection, are enabled by auxiliary injection units with independent temperature control, facilitating production of parts combining rigid and elastomeric materials. This versatility extends to processing of filled polymers containing glass fibers, carbon nanotubes, or mineral additives, with specialized screw designs preventing filler breakage and ensuring uniform dispersion.
Design for maintainability is evident in features like quick-access panels, centralized lubrication systems, and modular component layouts. Condition monitoring sensors embedded in critical systems (hydraulic pumps, servo motors) continuously assess equipment health, generating alerts for preventative maintenance before component failure occurs. This predictive approach reduces unplanned downtime by up to 50% compared to reactive maintenance strategies.
