For many detergent bottle manufacturers, the highest cost in new product development does not come from blow molding machines or mold procurement itself.
The biggest cost burden lies in the looping iterative workflow below:
Design → Sampling → Mold Modification → Re-Sampling → Production Parameter Adjustment
Each round of mold revision pushes up development costs, delays product launch timelines, and brings unpredictable risks to both packaging suppliers and brand clients.
Though a small number of mold adjustments are inevitable, most rework can be eliminated via scientific engineering planning before mold manufacturing kicks off.
This paper sorts out the typical root causes of repeated mold changes in HDPE detergent bottle programs, and shares actionable solutions to raise the first-pass success rate of mold trial runs.
Extra precision machining fees for mold inserts/cavities
Additional engineer labor hours for revision design & onsite debugging
Extra trial production runs consuming raw HDPE resin
Auxiliary fixture & testing material consumption
Postponed product listing and missed market sales windows
Disrupted mass production scheduling for follow-up orders
Extra rounds of sample delivery, review and client approval
Surplus workload for cross-department project coordination
Projects suffering multiple mold revisions often drag on for months longer than those with complete upfront engineering validation.
Most bottle renderings and CAD models deliver a sleek, attractive look on screen.
Nevertheless, blow molding is a physical forming manufacturing process instead of a pure graphic design task.
A qualified detergent bottle must satisfy all the requirements simultaneously:
Attractive retail shelf appearance
Ergonomic grip & user handling experience
Flat, wrinkle-free surface for label sticking
Sufficient structural mechanical strength
Feasibility for blow molding production
Long-term stable mass production performance
Any overlooked requirement from the list above will lead to mandatory mold revisions.

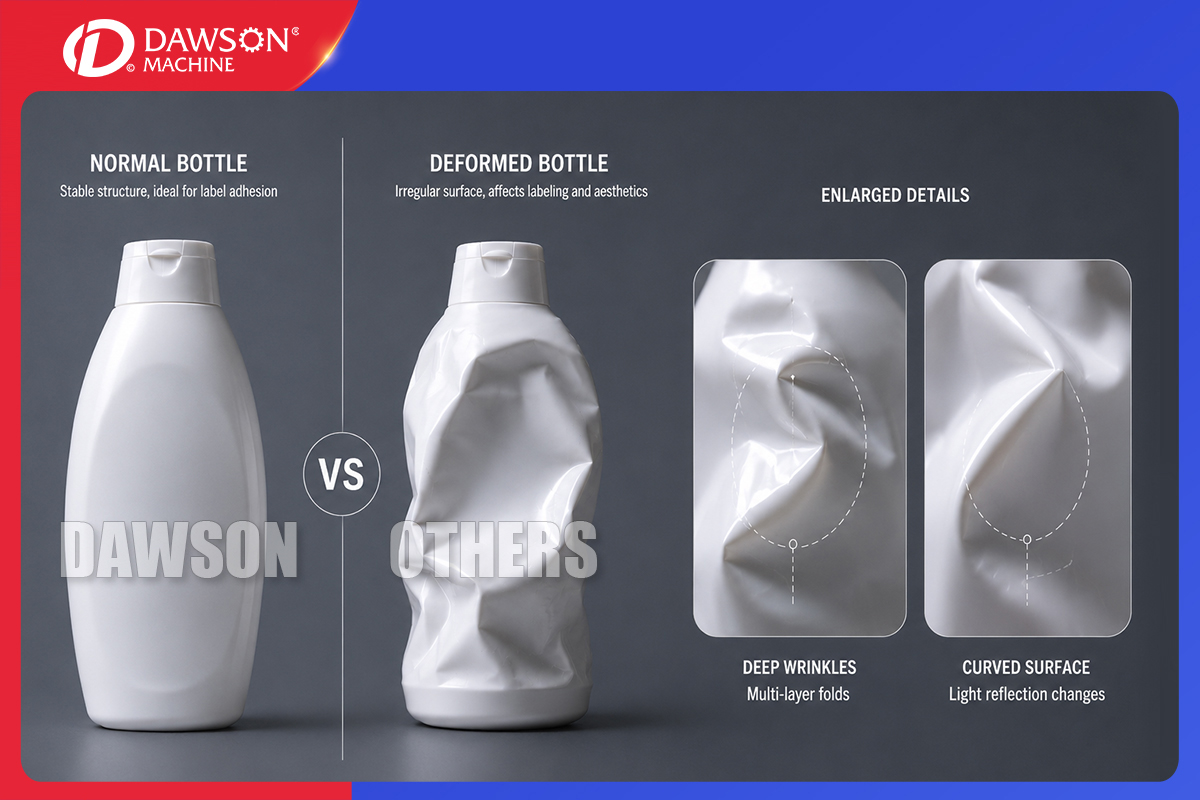

Most factories only track the total finished bottle weight as a control standard.
In practice, uniform wall thickness distribution carries greater importance than average overall weight.
Even bottles that hit the target weight may still present these quality defects:
Concave deformation on flat label panels
Overly thin fragile areas on integrated handles
Poor top-load compressive resistance during stacking & transportation
Unstable drop-test passing rate with inconsistent breakage positions
Precise parison programming paired with targeted mold cavity design guides molten HDPE material to gather at structural weak points, which is a core industry solution to cut blow molding defects and stabilize production output.

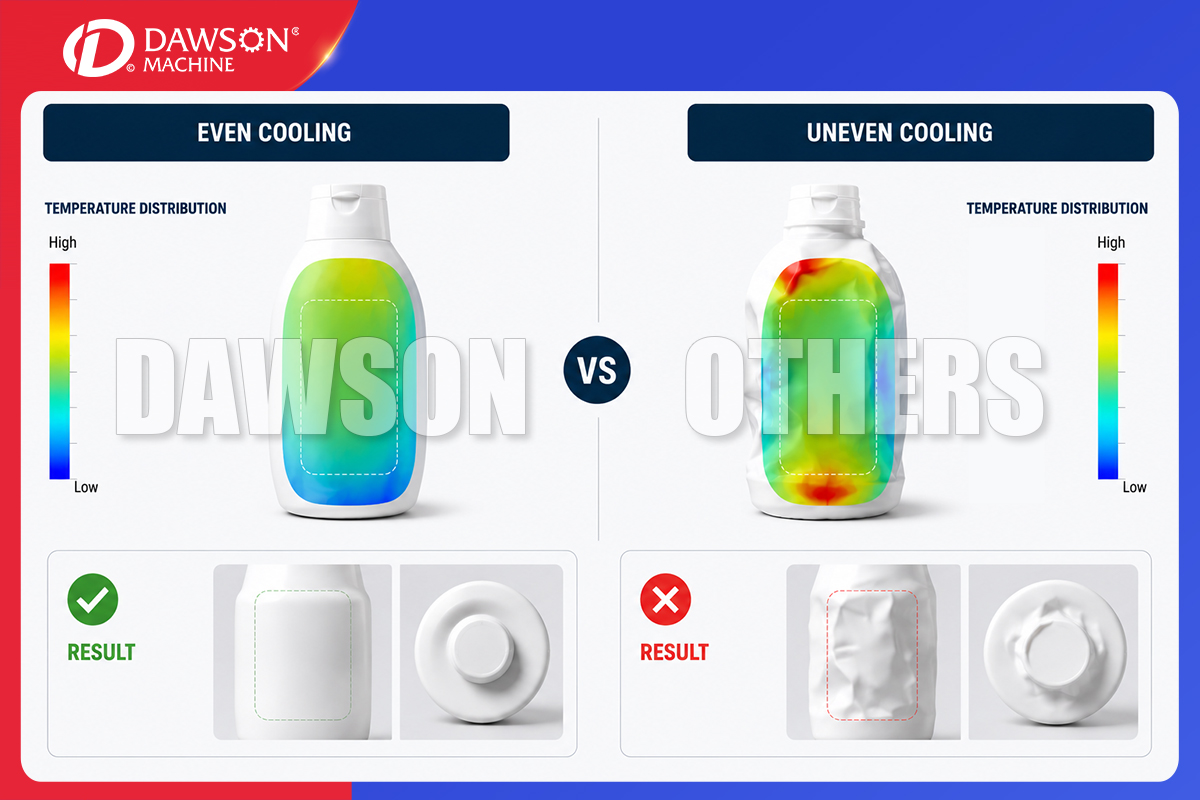

Cooling layout is the most frequently neglected link in bottle mold development.
Uneven mold cooling will cause a series of persistent problems:
Permanent bottle warping & dimensional distortion after ejection
Streaks, sink marks and blemishes on bottle outer surfaces
Unstable finished product dimensional tolerance
Extended single molding cycle time and lower machine output
Even if trial samples look acceptable at first glance, cooling-related defects will gradually emerge under continuous long-hour production.
Well-designed cooling channels and balanced cavity temperature control guarantee consistent bottle quality throughout full-shift operation, and cooling imbalance is widely recognized as a major source of recurring blow molded container quality issues.
Detergent bottles are mostly equipped with one-piece molded handles, which bring unique blow molding challenges: molten HDPE parison needs to stretch evenly around complex curved handle geometry during inflation.
Without targeted structural engineering, factories will encounter recurring defects:
Excessively thin handle sections prone to cracking
Chaotic uneven material stretching around handle roots
Insufficient mechanical strength to hold full liquid weight
Uncomfortable hand grip affecting end-user experience
All handle structural designs must be verified against actual blow molding process limits before mold fabrication.

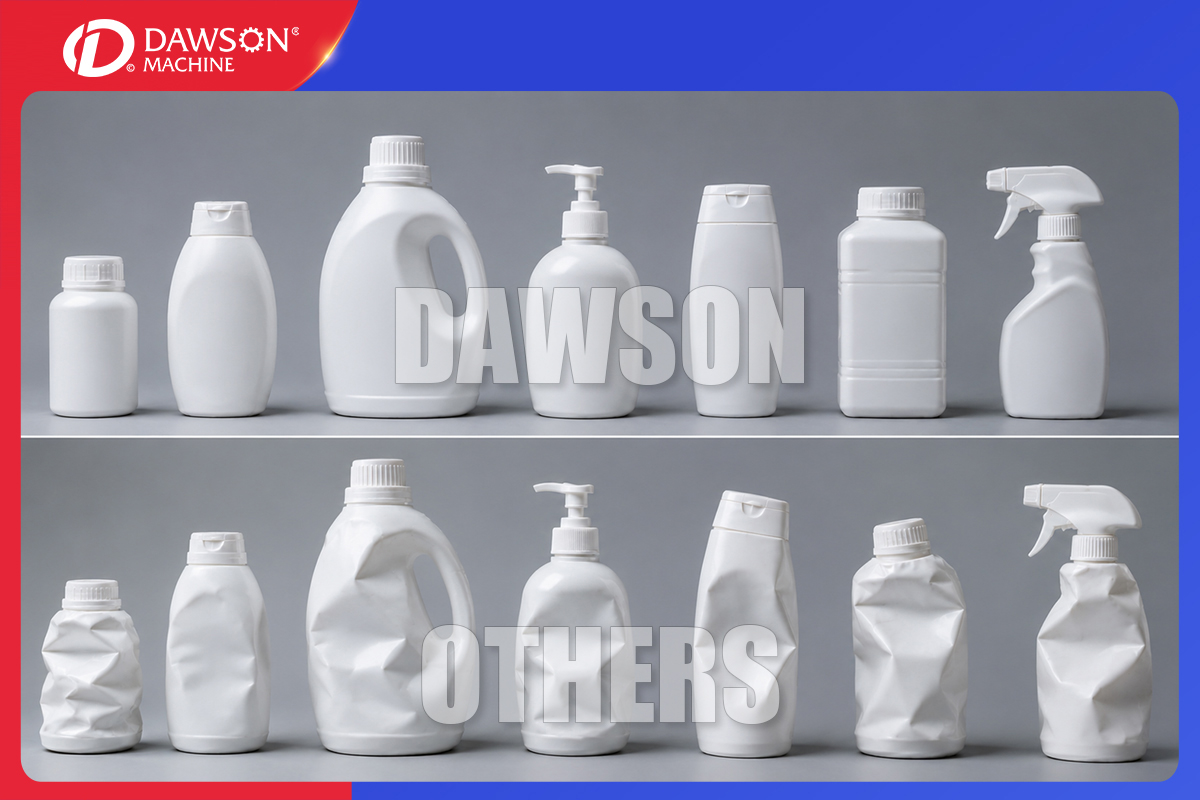

A bottle that can be produced once in lab trial runs does not equal a design suitable for consistent high-volume manufacturing.
Stable mass production relies on fully controllable links:
Uniform repeatable parison extrusion output
Reproducible wall thickness distribution shot by shot
Balanced cavity cooling efficiency
Sufficient, evenly distributed mold venting
Stable, locked-in standard process parameters
Most mass production defects stem not from bottle shape design, but from the mismatch between HDPE material characteristics, mold tooling structure and machine process parameters. Industrial blow molding troubleshooting manuals consistently rank venting layout, raw material drying condition, mold sealing, cooling efficiency and process parameter stability as top contributors to recurring production flaws.
High-efficiency detergent bottle development programs strictly follow these four engineering standards:
Conduct Manufacturability Review in the Early Design Stage
Do not only evaluate visual appearance; comprehensively audit:
Overall bottle geometric structure
Integrated handle mechanical layout
Flat label panel size & radian design
Molten HDPE material flow & stretching trajectory
Establish Targeted Wall Thickness Optimization Schemes
Prioritize balanced material distribution rather than simply increasing overall bottle weight to reinforce weak zones.
Integrate Cooling System Design into Core Mold Engineering
Cooling channel layout directly determines long-term product quality stability and unit hourly production capacity, which cannot be treated as an afterthought.
Verify Mass Production Repeatability Before Official Mold Sign-Off
A qualified mold trial test needs to prove stable, repeatable output for dozens of consecutive shots, instead of only producing a few perfect single samples.
DAWSON delivers end-to-end technical support covering the whole product development cycle for detergent bottle clients:
Bottle design DFM (Design for Manufacturability) evaluation
Custom blow mold cavity & core engineering
Parison program & wall thickness distribution optimization
Mold cooling channel flow simulation & performance analysis
Full-scale machine trial production technical support
Post-trial mass production process parameter refinement
Our core service value extends beyond simple mold manufacturing.
We help clients launch stable, high-yield, cost-effective blow molding production lines with minimal mold revision cycles and shortened overall project lead time.
Repeated mold modifications are rarely triggered by a single isolated flaw.
In most cases, they arise from overlapping overlooked risks accumulated across every stage of product development.
By prioritizing manufacturability review, wall thickness balance, cooling efficiency and mass production stability at the earliest design phase, packaging manufacturers can drastically lower development risks and improve overall project profitability.
The most successful HDPE detergent bottle development programs are not those with countless mold adjustments — they are the ones that require almost zero rework from first trial to mass production.
Planning a new detergent bottle, household packaging, or HDPE bottle project?
Contact DAWSON for technical evaluation and project support.
