| machine type: | |
|---|---|
| ejector number: | |
| plastic processed: | |
| injection weight : | |
| injection rate (g/s): | |
| ejector stroke: | |
| theoretical shot volume: | |
| Quantity: | |
SM-680II
DAWSON
Injection molding machines are celebrated for their remarkable ability to work with a wide range of plastic materials, making them indispensable in the production of beer baskets and boxes. Among the most popular choices are polypropylene (PP) and high-density polyethylene (HDPE), each offering unique benefits that cater to the specific needs of beer packaging. PP is prized for its excellent impact resistance and flexibility, ensuring that beer baskets can withstand the rigors of transportation without cracking. HDPE, on the other hand, boasts superior chemical resistance, making it ideal for beer boxes that may come into contact with moisture or cleaning agents.
These machines are engineered to handle these materials with precision, starting with the melting process. The plastic pellets are fed into a heated barrel, where they are melted at carefully controlled temperatures—typically between 180°C and 240°C for PP and HDPE. This precise temperature control ensures that the molten plastic flows smoothly and uniformly, preventing inconsistencies that could weaken the final product. The molten material is then injected into custom-designed molds, which shape it into the desired form of beer baskets or boxes.
What sets injection molding apart is its ability to leverage the inherent properties of these plastics. For example, the lightweight nature of PP and HDPE means that the resulting beer containers are easy to carry, reducing strain on consumers and workers alike. At the same time, their durability ensures that the containers can be reused multiple times, making them a cost-effective and sustainable choice for breweries and retailers. Whether it’s a small 6-pack basket or a large box designed for bulk transport, injection molding machines can adapt to different materials to meet varying strength and weight requirements.
Another advantage of using these plastics is their compatibility with food safety standards. Both PP and HDPE are approved for contact with food and beverages, giving breweries peace of mind that their products are stored in safe, non-toxic containers. This is particularly important for craft breweries that prioritize quality and safety in every aspect of their production process. The injection molding process itself does not introduce harmful chemicals, ensuring that the integrity of the beer remains uncompromised.
| INJECTION UNIT | A | B | C | D | |
| Screw diameter | mm | 85 | 90 | 95 | 100 |
| Screw L/D ratio | L/D | 23.3 | 22 | 20.8 | 20.8 |
| Theoretical shot volume | cm³ | 2835 | 3179 | 3542 | 3825 |
| Shot weight(Ps) | g | 2580 | 2893 | 3223 | 3572 |
| Injection rate | cm³ | 480 | 538 | 599 | 664 |
| Injection pressure | bar | 2020 | 1800 | 1620 | 1450 |
| Max.screw speed | rpm | 135 | |||
| CLAMPING UNIT | |||||
| Clamping force | KN | 6800 | |||
| Opening stroke | mm | 970 | |||
| Distance between tie-bars | mm | 970*920 | |||
| Max.mold height | mm | 980 | |||
| Min.mold height | mm | 380 | |||
| Ejector stroke | mm | 260 | |||
| Ejector force | KN | 207 | |||
| OTHERS | |||||
| Max.Pump pressure | MPa | 16 | |||
| Pump motor power | KW | 37+37 | |||
| Heating capacity | K | 44.3 | |||
| Oiltank cubage | L | 1200 | |||
| Machine weight | t | 30.5 | |||

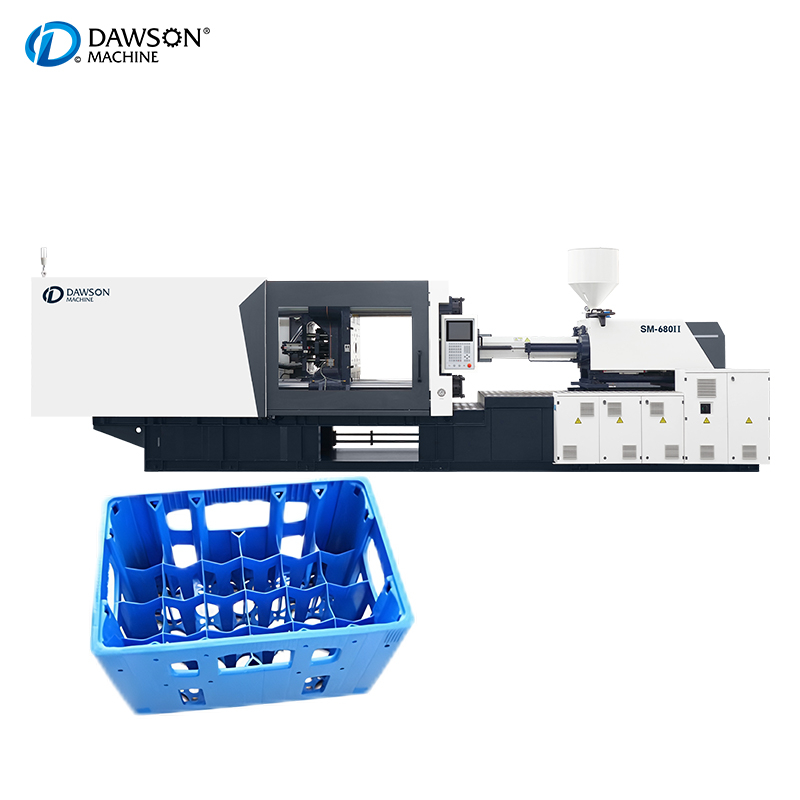

DAWSON SM-680ll iniection molding machine is designed for fruit and vegetable basket.It is with basket pushing function which is our patent design.With this function,it can be safe for workers and save labor cost for our customers.
DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,injection molding machine, blow molding machine, PET blow molding machine, injection blow moldingmachine, during the past 18 years, we always force our energy into new areas of plastic machinery,plastic packaging machinery, to update the technology, to learn advanced experience,to confirm new theory and new design, we are forming a unique competitive advantage of our owns.The machines from our company carry good quality and effective after-sales service, upon the market,customers from more than 45 countries, we provide complete solution for your plastic industrybusiness, as well as all sorts of technical support & after-sale services!
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
