| machine type: | |
|---|---|
| ejector number: | |
| plastic processed: | |
| injection weight : | |
| injection rate (g/s): | |
| ejector stroke: | |
| theoretical shot volume: | |
| Quantity: | |
SM-680II
DAWSON
| INJECTION UNIT | A | B | C | D | |
| Screw diameter | mm | 85 | 90 | 95 | 100 |
| Screw L/D ratio | L/D | 23.3 | 22 | 20.8 | 20.8 |
| Theoretical shot volume | cm³ | 2835 | 3179 | 3542 | 3825 |
| Shot weight(Ps) | g | 2580 | 2893 | 3223 | 3572 |
| Injection rate | cm³ | 480 | 538 | 599 | 664 |
| Injection pressure | bar | 2020 | 1800 | 1620 | 1450 |
| Max.screw speed | rpm | 135 | |||
| CLAMPING UNIT | |||||
| Clamping force | KN | 6800 | |||
| Opening stroke | mm | 970 | |||
| Distance between tie-bars | mm | 970*920 | |||
| Max.mold height | mm | 980 | |||
| Min.mold height | mm | 380 | |||
| Ejector stroke | mm | 260 | |||
| Ejector force | KN | 207 | |||
| OTHERS | |||||
| Max.Pump pressure | MPa | 16 | |||
| Pump motor power | KW | 37+37 | |||
| Heating capacity | K | 44.3 | |||
| Oiltank cubage | L | 1200 | |||
| Machine weight | t | 30.5 | |||

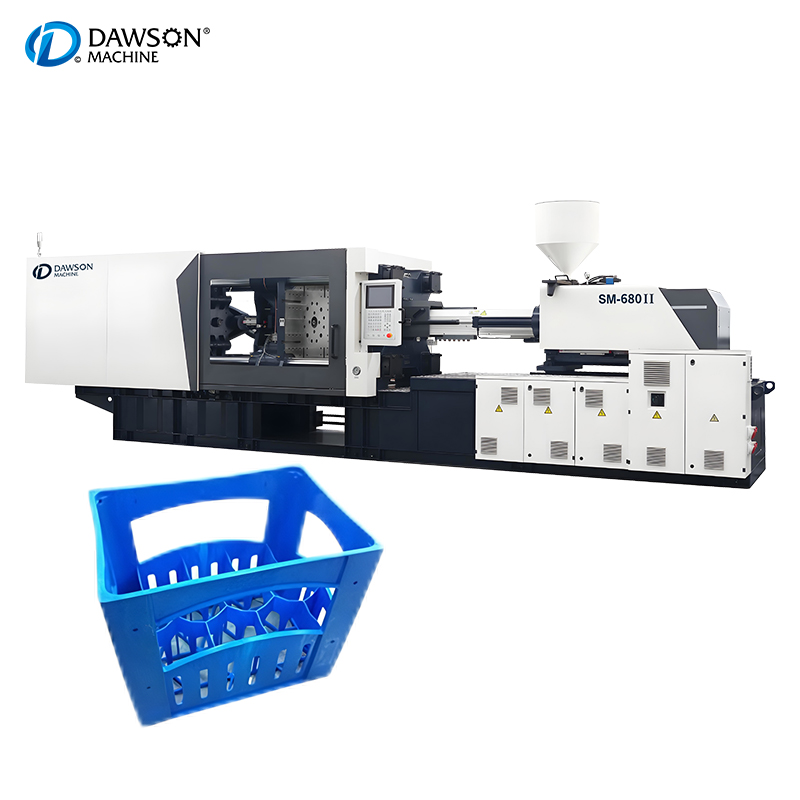

DAWSON SM-680ll iniection molding machine is designed for fruit and vegetable basket.It is with basket pushing function which is our patent design.With this function,it can be safe for workers and save labor cost for our customers.
DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,injection molding machine, blow molding machine, PET blow molding machine, injection blow moldingmachine, during the past 18 years, we always force our energy into new areas of plastic machinery,plastic packaging machinery, to update the technology, to learn advanced experience,to confirm new theory and new design, we are forming a unique competitive advantage of our owns.The machines from our company carry good quality and effective after-sales service, upon the market,customers from more than 45 countries, we provide complete solution for your plastic industrybusiness, as well as all sorts of technical support & after-sale services!
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
