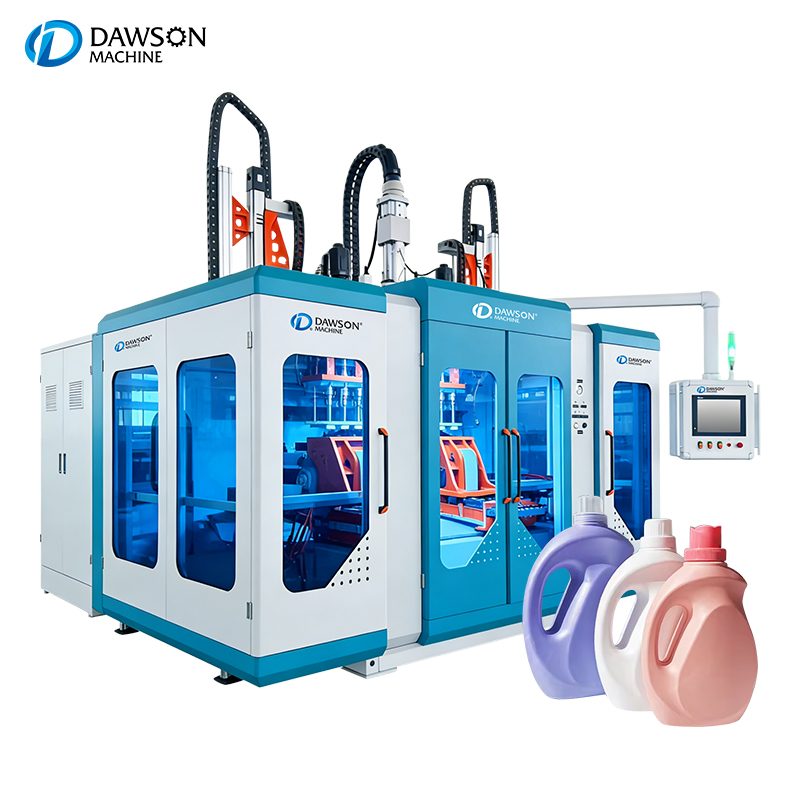

Fully Electric Plastic Bottle Blow Molding Machine Daily Chemical Packaging Factory

Clamping force:
220KN
Station:
Double Station
Max. Product Volume:
5L
Suitable Material:
HDPE,PP,PVC,PS,PETG,LDPE
Made in:
China
Trademark:
DAWSON
Availability:
Quantity:
Inquire Add to Basket

  • DAWSON

详情_01详情_02详情_03详情_05详情_06详情_07详情_08详情_09详情_10详情_11详情_12详情_13

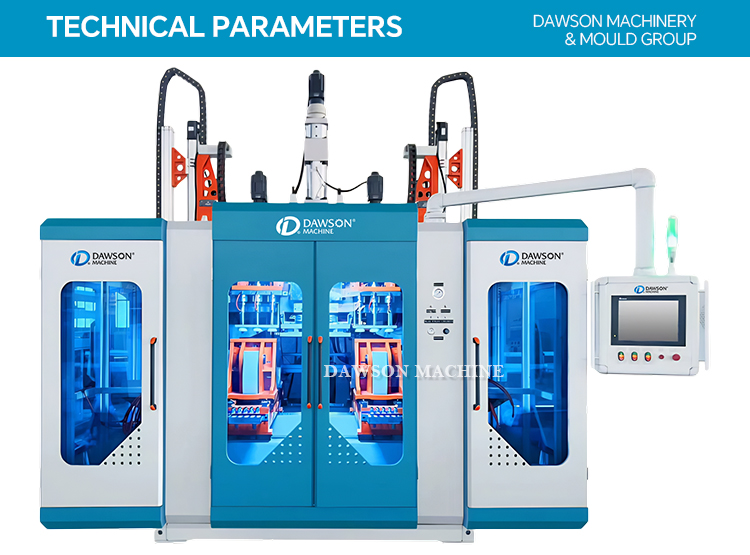

ParameterUNIT
Clamping forceKN220
Blow pin forceKN60
platen opening strokeMM210-620
Max mould sizeMM500(Width)*450(Height)
Mould thickanessMM215-350
Heating zone NumberPART6
MovedistanceMM600
Screw diameterMM80
Hydraulicservomotor powerKW52
Screw LD ratioL/D1:25
Plasticising CapacityKGHR160
Voltage/FrequencyVHZ380V   50HZ
TotalpowerKW116
The average energy consumptionKW/H35
Compressde Air RequiredMPA0.6-0.8


Previous:
Next:
factory supply blow molding machine industrial plastic bottle machine chemical bottle manufacturing machine energy efficient blow molding equipment

Related Products

High-Speed Automatic Blow Molding Machine for 1000ml Household Cleaning Bottle
High-Speed Automatic Blow Molding Machine for 1000ml Household Cleaning Bottle
1L HDPE Cleaning Bottle Making Machine DSB80II Double Station Extrusion Blow Molding Machine
1L HDPE Cleaning Bottle Making Machine DSB80II Double Station Extrusion Blow Molding Machine
High Output Household Cleaning Bottle Machine DSB80II Double Station Extrusion Blowing Molding Machines
High Output Household Cleaning Bottle Machine DSB80II Double Station Extrusion Blowing Molding Machines
Full Electric Double Station Extrusion Blow Molding Machine for 1000ml Detergent and Shampoo Bottles
Full Electric Double Station Extrusion Blow Molding Machine for 1000ml Detergent and Shampoo Bottles
Automatic Double Station Extrusion Blow Molding Machine for 1L Laundry Detergent and Cleaning Bottles
Automatic Double Station Extrusion Blow Molding Machine for 1L Laundry Detergent and Cleaning Bottles
DSB80II 1000ml HDPE Detergent Packaging Bottle Making Machines Double Station Blowing Molding Machines
DSB80II 1000ml HDPE Detergent Packaging Bottle Making Machines Double Station Blowing Molding Machines
Industrial HDPE Wide Mouth Straight-Sided Canister Blow Molding Machine 5-Head Design
Industrial HDPE Wide Mouth Straight-Sided Canister Blow Molding Machine 5-Head Design
High Efficiency Single-Station 5 Head Blow Molding Machine for HDPE Wide Mouth Containers
High Efficiency Single-Station 5 Head Blow Molding Machine for HDPE Wide Mouth Containers
High Output 5-Head HDPE Wide Mouth Canister Blow Molding Machine for Food & Chemical Use
High Output 5-Head HDPE Wide Mouth Canister Blow Molding Machine for Food & Chemical Use
Single Station 5-Head HDPE Wide Mouth Canister Making Blow Molding Machine Extrusion Blow Molding Machines
Single Station 5-Head HDPE Wide Mouth Canister Making Blow Molding Machine Extrusion Blow Molding Machines
Fully Automatic Shampoo Bottle Blow Molding Machine Extrusion Blow Molding Machines
Fully Automatic Shampoo Bottle Blow Molding Machine Extrusion Blow Molding Machines
300ml 500ml Plastic Bottle Making Machine Double Station 4 Die Head Blow Molding Machine
300ml 500ml Plastic Bottle Making Machine Double Station 4 Die Head Blow Molding Machine
Dobule Station HDPE Making Machine Plastic Container Blowing Molding Machine
Double Station HDPE Making Machine Plastic Container Blowing Molding Machine
Automatic HDPE Cosmetic Bottle Shampoo Detergent Bottle Making Machine
Automatic HDPE Cosmetic Bottle Shampoo Detergent Bottle Making Machine

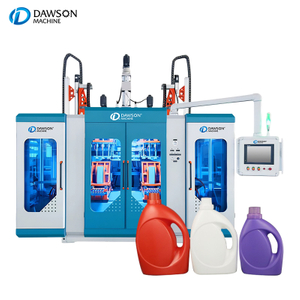

Fully Electric HDPE Detergent And Cleaning Bottles Blow Molding Machines
