Parison formation is the most critical phase in the extrusion blow molding process. Operating facilities know this operational reality firsthand. Defects during this stage directly erode gross margins. They increase scrap rates and cause frustrating cycle time delays.
Resolving parison defects requires a systematic, empirical approach. You cannot rely on mere guesswork. Operators must isolate variables across machinery, tooling, and polymer science. Quick adjustments often mask underlying thermal or mechanical inconsistencies.
This guide provides a definitive troubleshooting framework. You will learn how to identify root causes and implement durable solutions. We also help you evaluate when chronic defects indicate a need for equipment upgrades.
Parison defects typically stem from three distinct origins: thermal inconsistencies, mechanical/tooling misalignment, or material/resin degradation.
Mastering die swell and drawdown requires precise calibration of your extrusion blow molding machine’s temperature profiles and parison programming.
Recurrent issues like melt fracture or hooking often signal the need to evaluate die head condition or update legacy extrusion control systems.
Implementing a standardized troubleshooting matrix reduces downtime and prevents localized fixes from causing secondary defects.
Manufacturers often view parison defects as routine technical errors. However, you must frame these issues as compounding business costs. The Cost of Poor Quality (COPQ) encompasses far more than just wasted resin. It includes increased energy consumption, unnecessary labor hours, and compromised drop-test compliance. Every rejected container represents a complete loss of the utility and machine time invested.
Production leaders frequently slow down cycle times to compensate for poor parison control. This approach creates a false economy. Lowering extrusion speeds might temporarily stabilize a swaying parison. Yet, it drastically reduces your overall throughput. Slower cycles mean fewer parts produced per shift. Your facility sacrifices profitable yield just to maintain minimum quality standards.
You must establish a rigorous evaluation baseline. Achieving consistent parison delivery is the primary success criterion for evaluating any blow molding operation. If a machine cannot repeatedly drop a uniform parison, downstream processes will fail. Mold closing, inflation, and cooling depend entirely on the initial melt integrity. We recommend measuring parison consistency daily. Use this metric as the ultimate indicator of your production health.
Record standard cycle times when parison formation is flawless.
Document precise parison weight and length targets for each mold.
Track energy usage per kilogram of processed resin during optimal runs.
Monitor drop-test failure rates tied directly to wall thickness variations.
Visual Evidence: The parison stretches excessively under its own weight before mold capture. You will notice the tube narrowing at the top and thickening near the bottom.
Primary Causes: Melt temperature frequently runs too high. Overheated resin loses its inherent melt strength. Gravity easily pulls the molten plastic downward. Alternatively, the extrusion speed might be too slow. A slow drop gives gravity more time to act on the suspended polymer. You might also be using a resin formulated for injection molding rather than blow molding. Such materials lack the necessary melt strength for vertical suspension.
What to watch out for: Check your barrel cooling fans. A broken fan can cause localized overheating. This thermal spike ruins melt strength instantly.
Visual Evidence: The extruded tube bows or curls to one side upon exiting the die. It fails to drop perfectly straight, complicating mold capture.
Primary Causes: Misaligned die and mandrel components stand as the most common culprits. Even a fraction of a millimeter creates asymmetric flow. Uneven temperature distribution across the die head also causes curling. Hotter sections flow faster than cooler sections. Asymmetric airflow around the die head or drafts in the factory can push the lightweight parison off-center.
Visual Evidence: You see a rough, scale-like texture on the inner or outer surface of the parison. Sometimes it appears as a frosted or matte finish when it should be glossy.
Primary Causes: The extrusion rate likely exceeds the material's critical shear stress. Pushing polymer too fast through a narrow die gap fractures the melt surface. Low die temperatures also contribute. Cold tooling forces the polymer to stretch and tear as it exits. Improper die geometry, such as sharp transition angles inside the head, aggravates shear stress.
Visual Evidence: Vertical lines run down the length of the parison. You might also notice poor color masterbatch dispersion or distinct unblended swirls.
Primary Causes: Degraded material often builds up on the die lip. This burnt polymer scores the parison as it extrudes. Damaged tooling, including scratches on the mandrel, causes identical vertical lines. Color discrepancies usually point to incompatible carrier resins. If your colorant carrier melts at a vastly different temperature than your base resin, it will not blend properly.

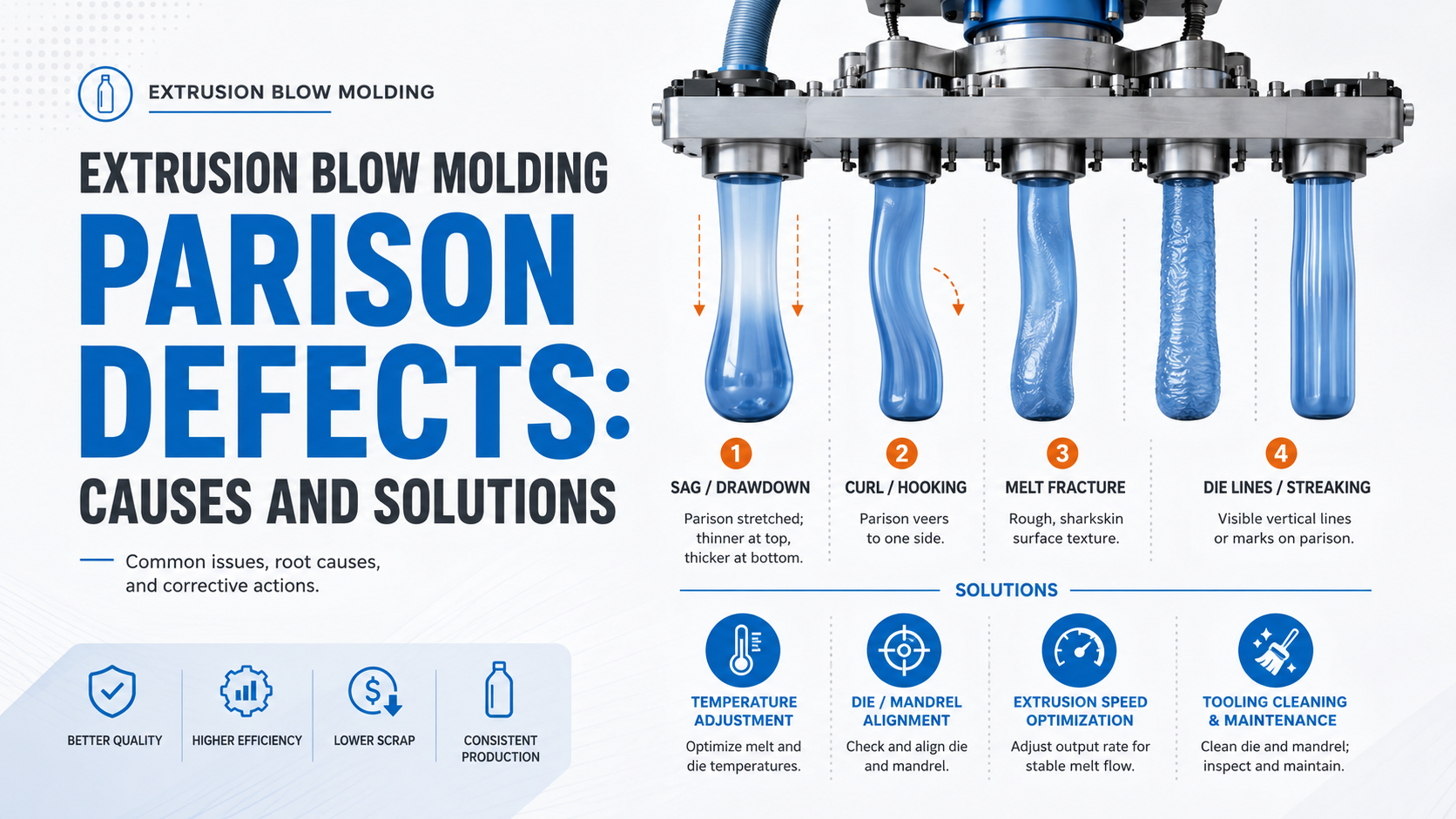

Defect Type | Visual Indicator | Primary Technical Cause | Immediate Action Step |
|---|---|---|---|
Drawdown / Sag | Stretching, top thinning | Excessive melt temperature | Reduce extruder zone temperatures |
Hooking / Curl | Bowing to one side | Tooling misalignment | Re-center die and mandrel |
Melt Fracture | Rough, scaly surface | Critical shear stress exceeded | Raise die temp or slow extrusion |
Die Lines | Vertical scoring | Burnt resin buildup on die lip | Clean tooling with brass instruments |
The physical capabilities of your extrusion blow molding machine dictate the ceiling of your parison quality. You cannot program your way out of severe mechanical wear. Hardware and software must work in absolute harmony. Worn feed throats, degraded screws, and outdated software limit your ability to control the polymer. Recognizing these limitations prevents endless frustration on the factory floor.
Temperature profiling demands precise attention. You must maintain melt integrity without degrading the polymer. Industry standards typically recommend a descending or flat temperature profile from the extruder barrel to the die head. A descending profile prevents excessive shear heating in the metering zone. A flat profile works well for heat-sensitive resins like PVC. You must verify these setpoints using independent pyrometers. Do not rely solely on the machine's control panel if sensors are old.
Parison programming controllers transform good parison drops into perfect ones. Modern Wall Thickness Distribution Systems (WDS) correct localized thinning. Older machines might use simple 25-point profiles. Today, leveraging 100-point or 300-point systems allows operators to manipulate the die gap dynamically. As the parison extrudes, servo-actuators open and close the tooling. This action thickens the plastic exactly where the mold stretches it most. High-resolution WDS saves significant resin weight per bottle.
Tooling maintenance remains non-negotiable. You must emphasize regular die and mandrel inspections. Check for concentricity using precision dial indicators. Even slight wear on the die ring alters flow velocity. Operators should clean tooling only with soft brass implements. Using hard steel tools scratches the polished surfaces. These scratches permanently imprint die lines onto every subsequent parison.
Profile Type | Temperature Trend (Feed to Die) | Best Used For | Key Advantage |
|---|---|---|---|
Descending | Hotter at feed, cooler at die | High-shear materials (e.g., HDPE) | Prevents melt degradation near the die head. |
Flat | Consistent across all zones | Heat-sensitive polymers (e.g., PVC) | Provides uniform thermal history and stability. |
Ascending | Cooler at feed, hotter at die | Rarely recommended in modern blow molding | Can force unmelted pellets into the die head. |
Polymer behavior dictates parison success. Introducing high percentages of regrind fundamentally alters the material. Regrind undergoes multiple heat histories. This degrades the polymer chains, shifting the Melt Flow Index (MFI). A fluctuating MFI directly impacts die swell and drawdown behaviors. If you mix 10% regrind in the morning and 40% in the afternoon, your parison will fluctuate wildly. You must strictly control regrind ratios to maintain dimensional stability.
Moisture contamination destroys parison integrity. Many operators assume polyolefins like HDPE ignore moisture. However, condensation from cold storage introduces surface water. True hygroscopic materials, like PET or Nylon, absorb moisture internally. When wet resins hit the heated extruder barrel, water vaporizes instantly. This causes steam bubbles. These bubbles manifest as severe parison blowouts, structural weak points, and popping sounds at the die lip. You must properly dry hygroscopic materials using desiccant dryers.
Additives and masterbatches complicate shear rates. Slip agents, UV stabilizers, and liquid colorants act as lubricants. They change how the polymer flows against the barrel wall. Sometimes, heavily pigmented resins flow faster than natural resins under the exact same parameters. We strongly recommend standardizing your resin evaluation criteria. Always document baseline behaviors before adjusting machine parameters to accommodate new colorants.
Storing regrind outdoors where humidity levels fluctuate drastically.
Failing to calibrate gravimetric blenders, leading to inconsistent colorant dosing.
Bypassing the hopper dryer to speed up production startups.
Mixing resins with vastly different fractional melt indexes.
When defects arise, panic often leads to random adjustments. You need an isolation framework. This step-by-step logic protects operators from creating secondary defects while fixing primary ones. Follow a rigid sequence. Never adjust multiple variables simultaneously.
Check material first: Verify the regrind ratio, confirm material drying times, and inspect for contamination.
Verify thermal setpoints second: Check actual barrel temperatures against programmed setpoints. Look for failed heater bands or stuck cooling fans.
Inspect mechanical alignment third: Measure die and mandrel concentricity. Check for physical blockages or burnt resin buildup.
Adjust WDS profiling last: Only modify parison programming once you guarantee material, temperature, and mechanics are stable.
You must acknowledge the risk of over-correction. Operators frequently fall into the trap of "chasing the process." They change a temperature setpoint, wait two minutes, and change it again when the parison looks identical. Polymers hold immense thermal mass. An extruder barrel requires at least 15 to 20 minutes to stabilize after a heat adjustment. Making multiple simultaneous adjustments without allowing the machine to stabilize guarantees confusion. You will not know which adjustment actually solved the problem.
Establish clear Bottom of Funnel (BoF) evaluation criteria. You must determine if a defect is a simple process error or a hard equipment limitation. Process errors respond to temperature or speed tweaks. Equipment limitations do not. You hit a ceiling.
When to upgrade: Observe your machinery closely. If legacy accumulator heads cannot maintain concentricity despite repeated physical centering, the mechanical tolerances are gone. Similarly, consider your material layers. If single-layer machines cannot handle the necessary regrind layers without causing surface defects, you have outgrown the equipment. It is time to evaluate modern, multi-layer machinery. Multi-layer configurations allow you to bury imperfect regrind safely in the middle layer, keeping virgin material on the visible outer surfaces.
Parison defects directly threaten your operational profitability. However, they remain entirely solvable through systematic isolation. You must separate variables across the machine, the mold, and the material. Stop relying on isolated guesswork. Adopt an empirical approach that respects polymer science and mechanical realities.
We encourage production leaders to take immediate action. Conduct a comprehensive audit of your current scrap rates. Benchmark your machine's parison programming capabilities against modern standards. Document your thermal profiles and regrind ratios. If consistent troubleshooting fails to improve yield, hardware limitations are likely capping your potential. Consult with equipment manufacturers to determine if retrofits or full machinery upgrades will restore your competitive edge.
A: You control die swell by optimizing the melt temperature and managing the extrusion rate. Hotter melts typically exhibit less swell. Adjusting the L/D (length-to-diameter) ratio of the die tooling also plays a massive role. Longer land lengths give the polymer more time to relax, which significantly reduces the swell effect upon exiting the die.
A: Tearing usually points to a cold melt lacking sufficient stretchability. It also occurs when excessive blow air pressure is deployed too early, shocking the polymer before it touches the mold walls. Additionally, check your mold. A pinch-off area that is too sharp will aggressively cut the plastic rather than properly welding it.
A: Yes. If the regrind mix contains inconsistent particle sizes or varying melt indexes, it creates uneven flow dynamics. These inconsistencies cause thermal variations within the melt stream inside the die head. This asymmetric flow forces the parison to curl or hook to one side as it exits the tooling.
