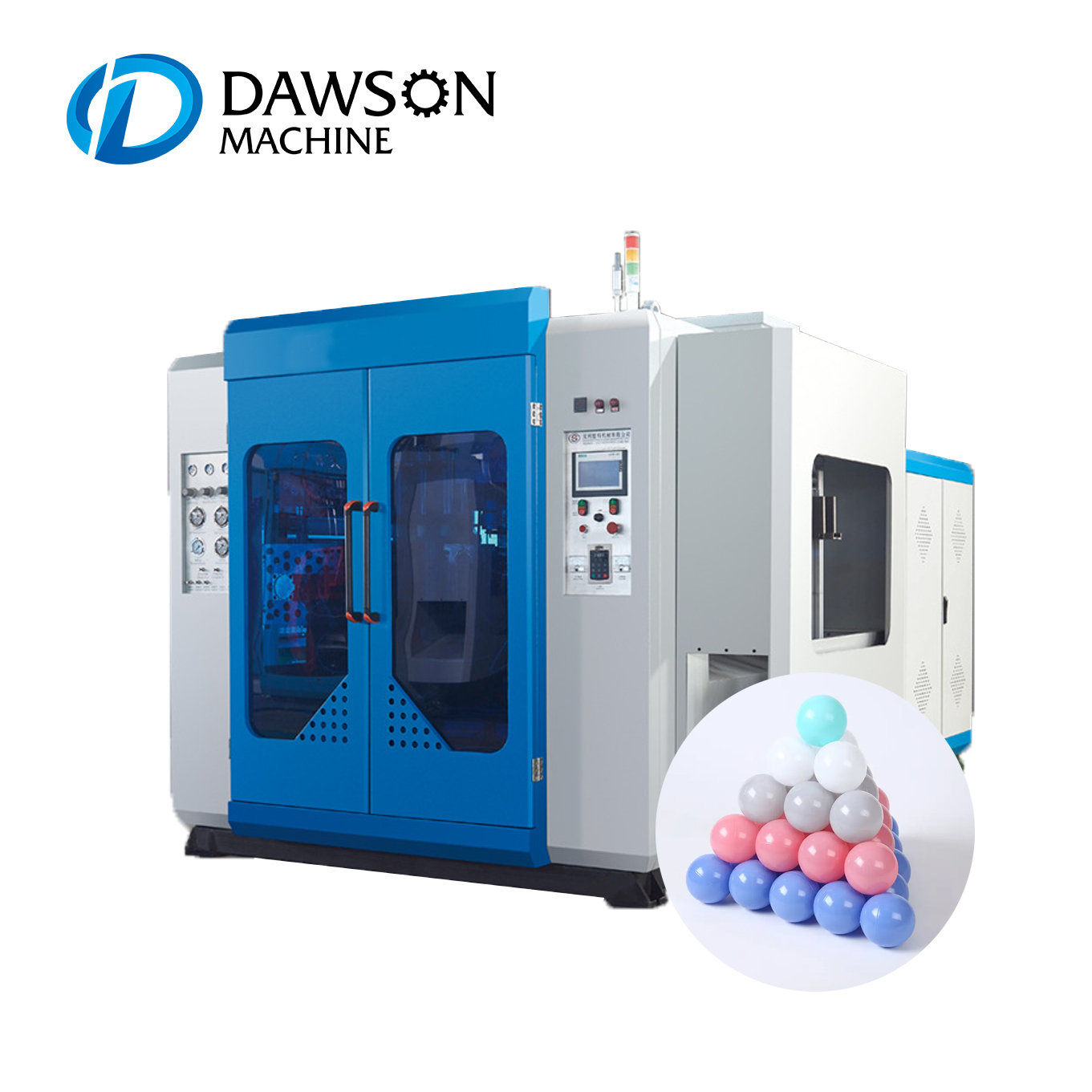

8 cm 10 cm Sea Ball toy Machines Manufacturing Plastic Coloful Soft Balls Automatic Extrusion Blow Molding Machine

Plastic product making machine: blow molding machine can make some balls, bottles, jerrycans, drums, barrel balls. It can make the most of plastic product.
Suitable Material:
Die Head:
Color:
Warranty:
Showroom location:
Automation:
Availability:
Quantity:
  • DSB65/75

  • DAWSON


8 cm 10 cm Sea Ball toy Machines Manufacturing Plastic Coloful Soft Balls Automatic Extrusion Blow Molding Machine Expert


Zhangjiagang Dawson Machinery Co., Ltd. is a well-known enterprise integrating mechanical design, research and development, production, sales and service. It is located in Zhangjiagang, a concentrated industrial zone for blow molding equipment. The company's purpose is to provide customers with better products, better Technical support and more efficient after-sales service.


This machine can produce balls of different sizes. In the case of double head, it can produce balls up to 10cm. If you want to produce larger balls, you can replace the double die head with a single die head.


The company is committed to customizing and providing different models of machinery and equipment for different customer groups, meeting customer needs from multiple perspectives, and providing low-price, high-yield, easy-to-operate models.




              Our Advantage

H852e68c9a3bc424aa6db728fab573a02Z

Lubricants oil bottle attributes

  •  Customized dual alloy wear-resistant screw

  • Multiple die heads and multi-layer technology are mature, with high output and added value

  • Simple function and convenient operation

  • Clear logic on touch screen pages

  • Remote technical control

  • High speed response of the oil circuit, smooth operation

  • Servo system, low energy consumption, low oil temperature, and high accuracy

  • Ceramic heater, power-saving to achieve details


              Machine Parameter



Name Units ABLB65II ABLB75II
Max.product volume L 3.5 8
Screw diameter MM 65 75
Screw drive power KW 18.5 22
Output of HDPE KG/H 75 100
Oil pump drive power KW 7.5 7.5
Clamping force KN 65 80
Max.size of mold MM 320×350 400×430
Template size MM 290×320 380×420
Mold stroke MM 150-500 170-520
Max.die diameter MM 170 170
Size of machine L×W×H 3.9×2.2×2.6 4.2×2.2×2.7
Weight of machine TON 6.5 7.5
