Advanced Engineering & Revolutionary Energy-Saving Technology
Cutting-Edge PET Blow Molding Engineering
The production of large-volume PET bottles, specifically 3-gallon and 4-gallon water jugs, requires a machine that balances raw power with extreme precision. Our Automatic PET Blow Molding Machine is engineered to meet these demands, featuring a robust torque transmission design and a high-speed clamping unit. This advanced engineering ensures that even when blowing containers up to 25 liters, the machine maintains structural integrity and consistent bottle quality. The integration of high-pressure combination valves allows for rapid response times, ensuring that every cycle is optimized for maximum efficiency.
Revolutionary 40% Air Recycle Efficiency

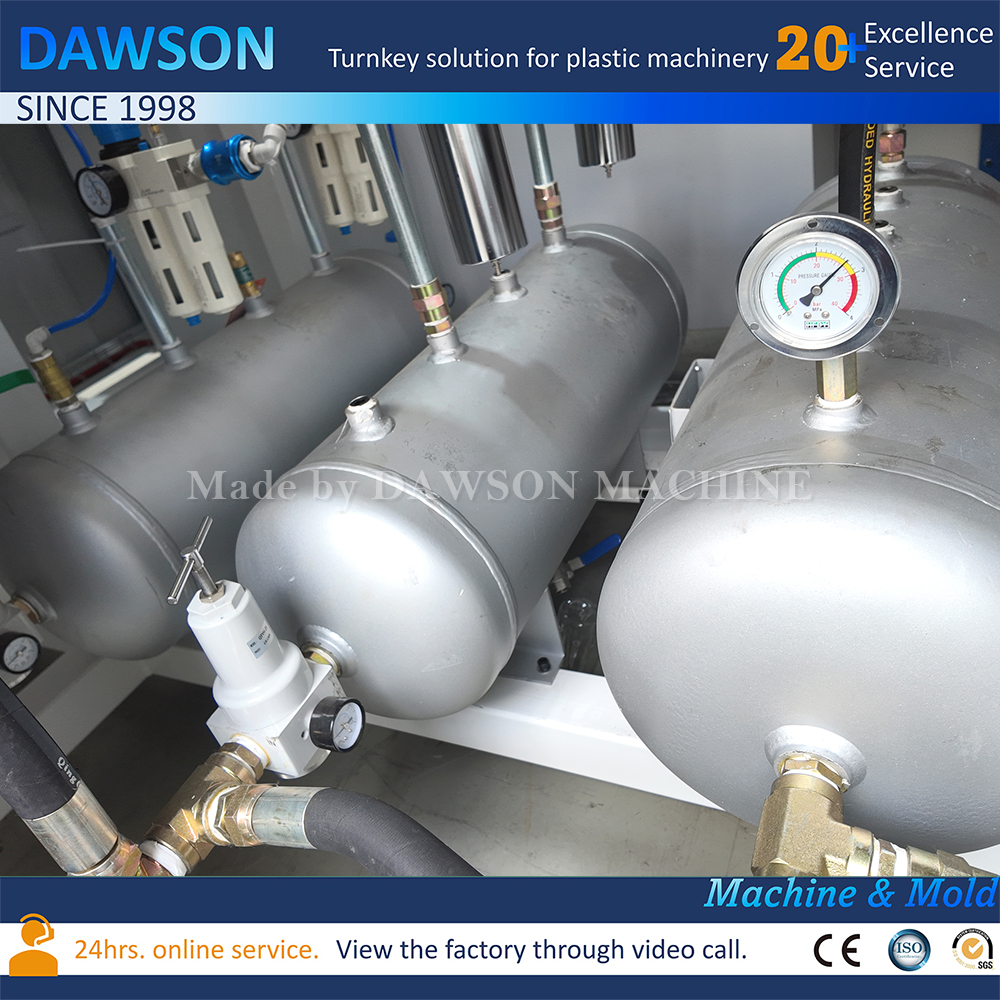

In the competitive world of plastic manufacturing, energy consumption is the silent profit killer. Our machine addresses this challenge head-on with a patented high-pressure air-recycle device. This innovative system captures and reuses the high-pressure air used during the blowing process, achieving an incredible air recycle efficiency of up to 40%. This not only reduces the need for heavy investment in low-pressure equipment but also directly lowers your overall power consumption by at least 15%. It is a sustainable solution that protects both the environment and your bottom line.
Patented Preform Heating System for Maximum Savings
Heating the preform is often the most energy-intensive part of the blow molding process. Our machine features a patented constant rotary heating system that is significantly more efficient than traditional linear heaters. By optimizing the thermal distribution and reducing heat loss, this system saves more than 40% of energy compared to conventional models. The result is a preform that is perfectly conditioned for blowing, leading to a higher yield of high-quality 3-gallon and 4-gallon bottles with minimal material waste.
Intelligent HMI Control and Real-Time Monitoring
Managing a complex production line is made simple with our touch-type color HMI (Human-Machine Interface) system. This intuitive control panel allows operators to monitor every aspect of the machine's performance in real-time. From adjusting heating profiles to fine-tuning clamping speeds, the HMI provides a user-friendly platform for maximizing productivity. This intelligent control system reduces the learning curve for new operators and ensures that your facility maintains peak performance throughout every production shift.

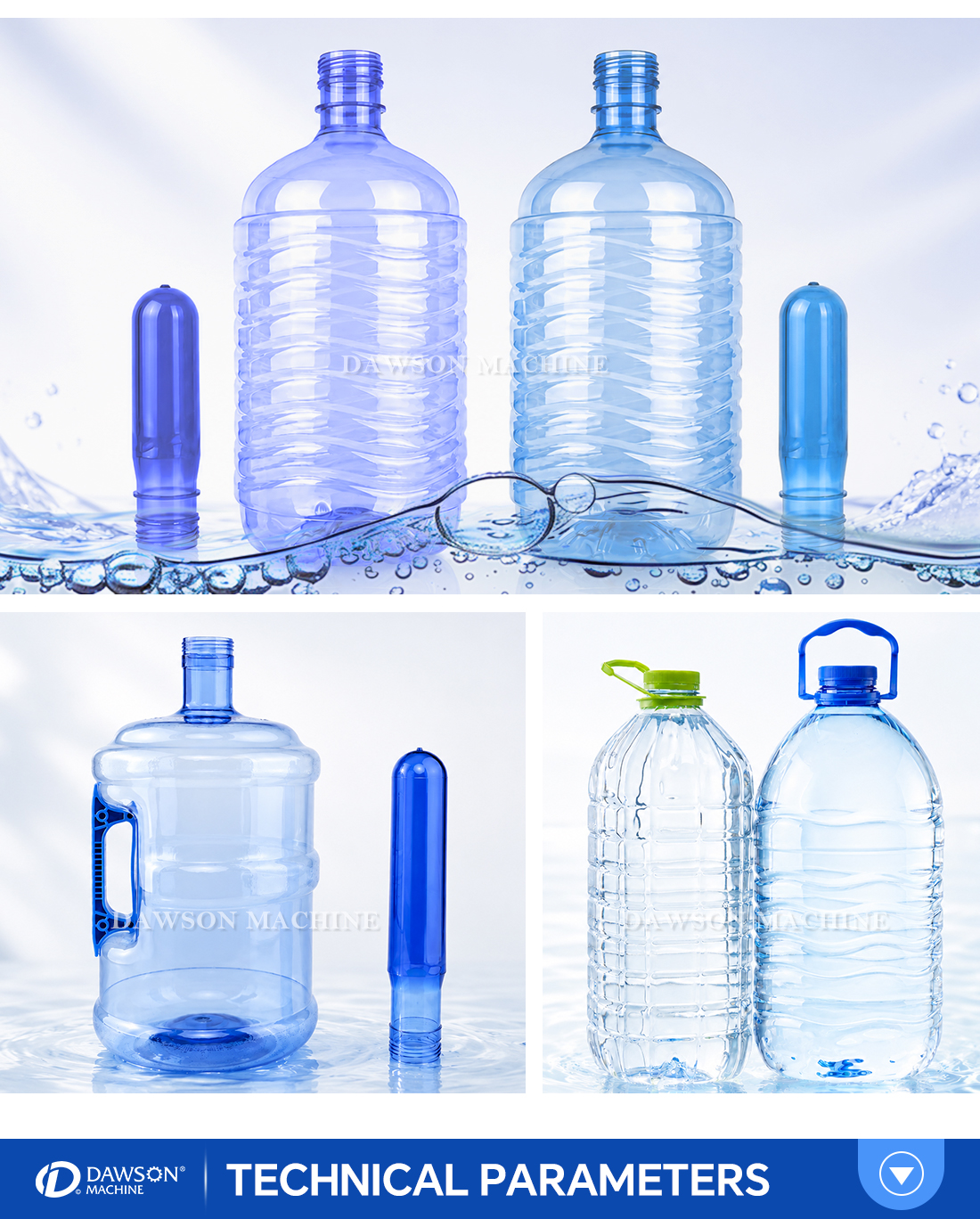

Reliable PET Bottle Solutions for 3 & 4 Gallon Production
Adopt touch-type color HMI system easy to operate can blow maximum 25 liter bottles. Maximum production speed can be 700 bottles/hour. Bottle outlet system is able to add a linking unit and combine with conveyor system to connect to the filling machine, hence reduce bottles secondary pollution and save labors. Adopt tight high pressure combination valves and equipped with high-pressure air-recycle device, air recycle efficiency can be as much as 40%, meanwhile save the investment of low pressure equipment and save power consumption of 15%. The machine main parts consist of torque transmission design, constant rotary heating system and high speed clamping unit, excellent machine layout and patented preform heating system save more than 40% of energy than the traditional one.
| Technical | Parameters | DSA-5L-2 | DSA-20L |
Host Machine Parameter
| Cavity (cavities) | 2 | 1 |
| Clamping Force (KG) | 65000 | 65000 |
| Mold Route (mm) | 260 | 320 |
| Stretching Rod Route (mm) | 350 | 460 |
| Bottom Mold Route (mm) | 50 | 50 |
| Bottle Spacing (mm) | 220 | 300 |
| Bottle Preform Number (pcs) | 80 | 48 |
Products Parameter
| Max Capacity (ml) | 6000 | 25000 |
| Max Bottle Body Height (mm) | 350 | 460 |
| Max Bottle Body Diameter (mm) | 180 | 230 |
| Max Bottle Preform Height (mm) | 200 | 240 |
| Max Bottle Mouth Diameter | 45 | 65 |
| Theoretical Output | Capacity (B/H) | 1500 | 400 |
Electrical Parameter
| Heating Oven Quantity (PCS) | 4*4 | 4*4 |
| Heating Lamp Quantity (PCS) | 4*10 | 4*120 |
| Heating Configuration Power (kw) | 72 | 72 |
| Total Power Capacity (kw) | 82 | 80 |
| Voltage (380V50HZ) | 380V50HZ | 380V50HA |
