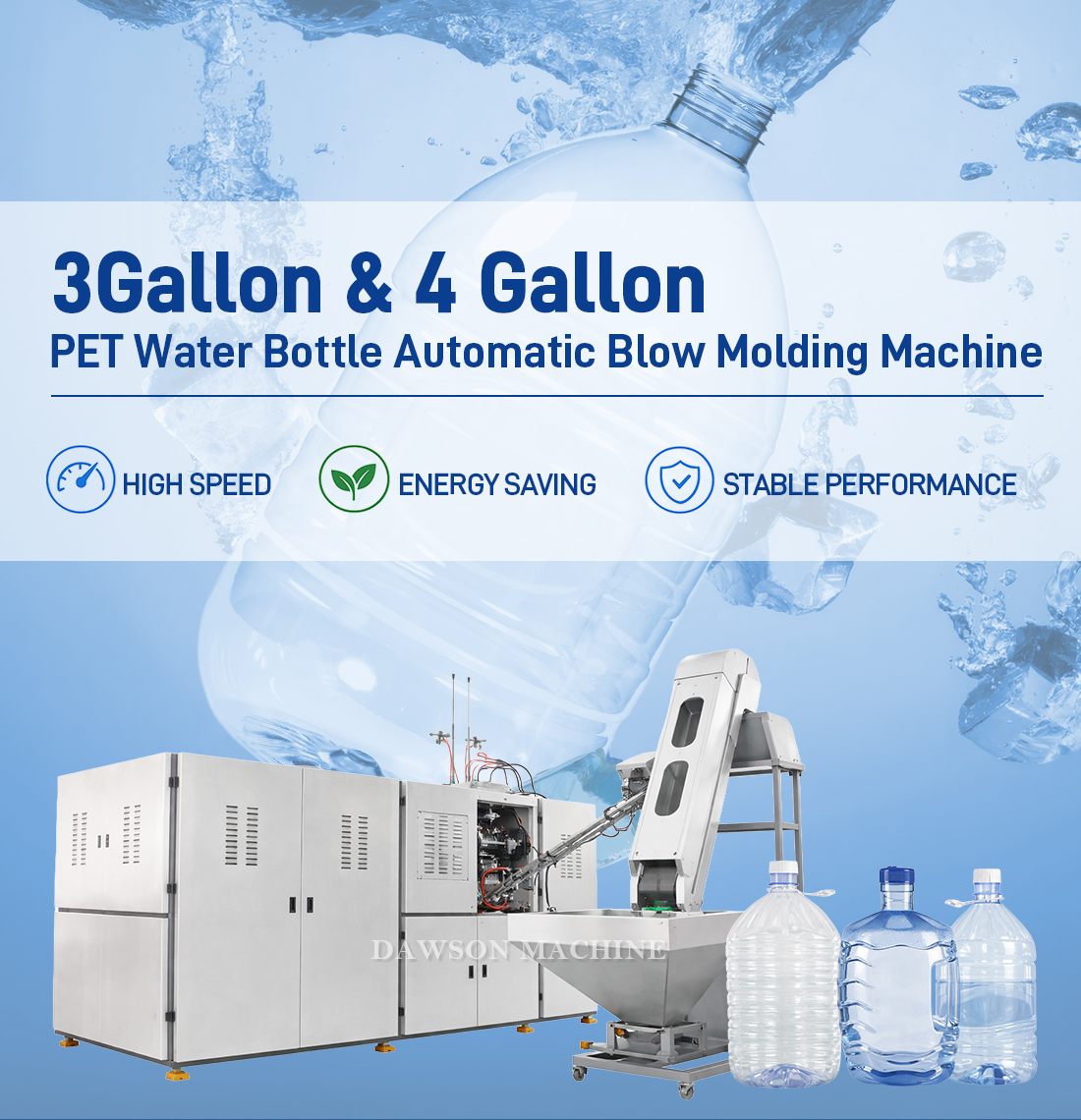

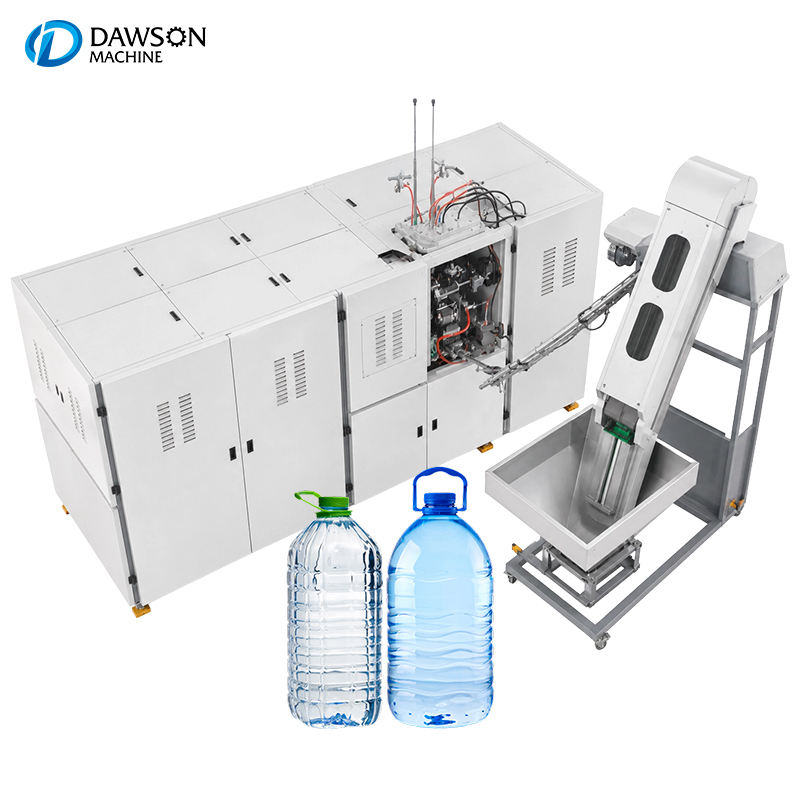

Energy Efficient Automatic 4 Gallon PET Jug Blow Molding Machine for Large Water Container Manufacturers

Machine appearance color:	Customizable
Samples provided:	Provide bottle sample after mold test for confirmation
Manpower required:	1~2 Operator
Engineer service:	Engineers can go to customer
Operating interface language:	Chinese, English and other languages if necessary
Auxiliary equipment:	We help customers to purchase famous brand auxiliary machinery
Other services:	24-hour online consultation (quick reply)
Availability:

Quantity:



Inquire Add to Basket

Brand:
DAWSON

Product Description

Reliable PET Bottle Solutions for 3 & 4 Gallon Production

Adopt touch-type color HMI system easy to operate can blow maximum 25 liter bottles. Maximum production speed can be 700 bottles/hour. Bottle outlet system is able to add a linking unit and combine with conveyor system to connect to the filling machine, hence reduce bottles secondary pollution and save labors. Adopt tight high pressure combination valves and equipped with high-pressure air-recycle device, air recycle efficiency can be as much as 40%, meanwhile save the investment of low pressure equipment and save power consumption of 15%. The machine main parts consist of torque transmission design, constant rotary heating system and high speed clamping unit, excellent machine layout and patented preform heating system save more than 40% of energy than the traditional one.

Technical	Parameters	DSA-5L-2	DSA-20L
Host Machine Parameter	Cavity (cavities)	2	1
	Clamping Force (KG)	65000	65000
	Mold Route (mm)	260	320
	Stretching Rod Route (mm)	350	460
	Bottom Mold Route (mm)	50	50
	Bottle Spacing (mm)	220	300
	Bottle Preform Number (pcs)	80	48
Products Parameter	Max Capacity (ml)	6000	25000
	Max Bottle Body Height (mm)	350	460
	Max Bottle Body Diameter (mm)	180	230
	Max Bottle Preform Height (mm)	200	240
	Max Bottle Mouth Diameter	45	65
Theoretical Output	Capacity (B/H)	1500	400
Electrical Parameter	Heating Oven Quantity (PCS)	4*4	4*4
	Heating Lamp Quantity (PCS)	4*10	4*120
	Heating Configuration Power (kw)	72	72
	Total Power Capacity (kw)	82	80
	Voltage (380V50HZ)	380V50HZ	380V50HA

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery, injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns. The machines from our company carry good quality and effective after-sales service, upon the market, customers from more than 45 countries, we provide complete solution for your plastic industry business, as well as all sorts of technical support & after-sale services!
