Composition, Design, and Key Features of Blow Molding Dies

Blow molding, as a critical process in plastic processing, is widely used in the production of hollow products such as bottles, containers, and fuel tanks. Its core component—the die (also known as the head or die)—directly affects the quality, precision, and production efficiency of the products. This article systematically elaborates on the composition of blow molding dies, common design types, and focuses on analyzing the design differences between dies with and without liquid level lines, as well as with and without wall thickness control. It aims to provide a reference for technical professionals in related fields.

1. Composition of Blow Molding Dies

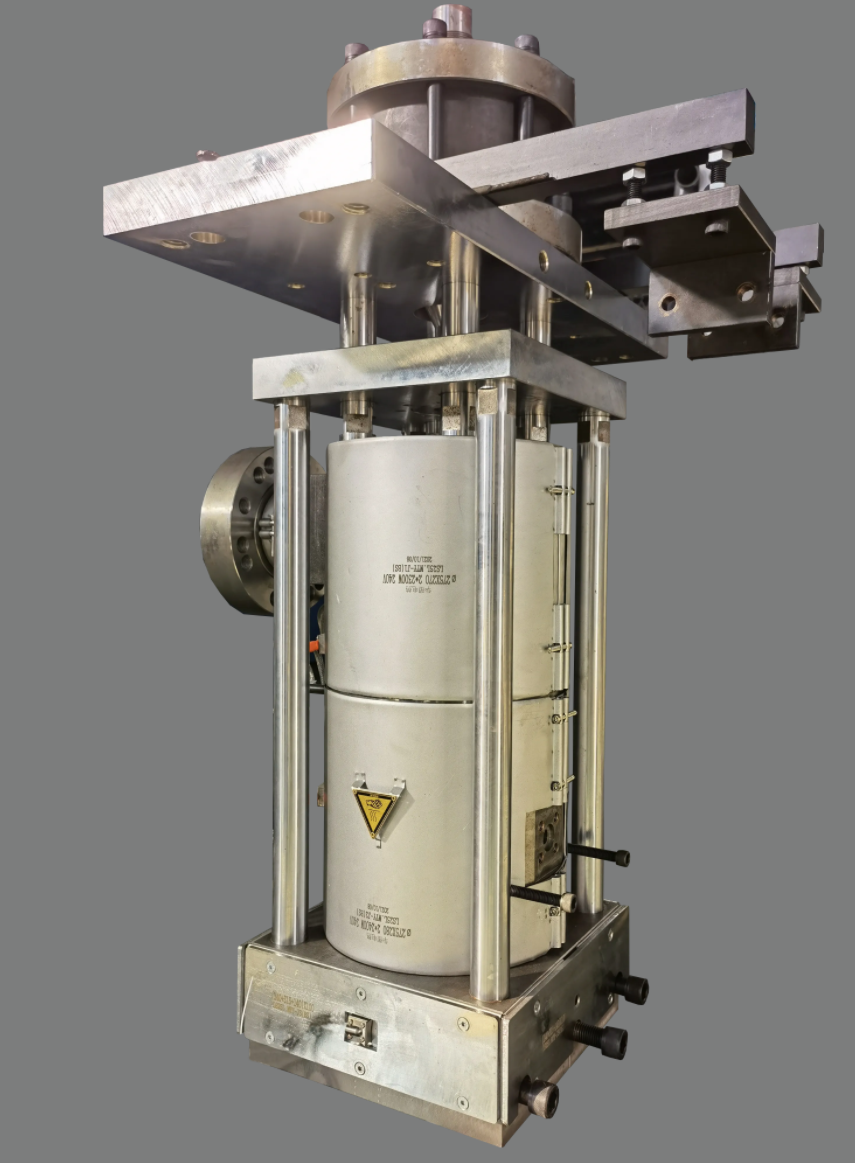

The blow molding die is a key component in extrusion blow molding or injection blow molding. Its primary function is to form molten plastic into a tubular parison and expand it by compressed air to fit the mold cavity, ultimately cooling and shaping it. The die typically consists of the following parts:

1. Body: The main structure of the die, used to support internal components and connect to the extruder or injection machine. It is usually made of high-strength steel to withstand high temperatures and pressures.

2. Spider: Located inside the die, it supports the mandrel and distributes the melt flow. The design of the spider must minimize the generation of weld lines to avoid parison strength deficiencies.

3. Mandrel and Die: The mandrel is the core component of the die, forming an annular flow channel with the die to determine the dimensions and shape of the parison. The mandrel is typically adjustable to control the thickness of the parison.

4. Adjustment Mechanism: Used to real-time adjust the wall thickness distribution of the parison. Common mechanisms include hydraulically or servo-driven choker bars or mandrel tilting systems.

5. Heating System: Typically uses electric heating bands or ceramic heaters to ensure uniform melt temperature and avoid parison defects caused by temperature differences.

6. Connecting Components: Including flanges, bolts, etc., used for fastening and sealing the die to the host machine or mold.

2. Common Designs of Blow Molding Dies

The design of blow molding dies must be selected based on product requirements, material characteristics, and production processes. The main types include:

1. Center-Feed Die: The melt flows into the die from the center, is distributed by the spider, and forms the parison. This design is simple and low-cost but prone to weld lines, making it suitable for ordinary products with low requirements.

2. Side-Feed Die: The melt enters the die from one side, flows around the mandrel through the flow channel, reducing weld lines and improving parison strength. It is suitable for high-performance materials or large products.

3. Spiral Die: The melt is evenly distributed through a spiral flow channel, effectively eliminating weld lines and ensuring pressure balance. The parison quality is high, but the structure is complex and expensive, mostly used in high-end packaging applications.

4. Coextrusion Die: Used for producing multi-layer composite products, combining different materials into a single parison through multiple flow channels. The design must consider the rheological properties and bonding performance of each material layer.

Currently, dies with wall thickness control systems are widely used in industry, especially those with program-controlled servo-hydraulic mechanisms, to achieve precise adjustments in the axial (vertical) and radial (circumferential) directions of the parison.

3. Design Differences: With vs. Without Liquid Level Lines

Liquid level lines refer to visible lines on the parison surface caused by unstable melt flow or uneven temperature distribution, commonly seen in containers for liquids (e.g., bottles). The die design must consider whether to avoid liquid level lines, with specific differences as follows:

· Dies Designed with Liquid Level Lines: Typically used for ordinary products with low surface quality requirements. The design may employ fewer spiders or simple flow channels, making the melt prone to stagnation or uneven shear, resulting in liquid level lines. Such dies are low-cost and easy to maintain but result in poorer product appearance and potentially compromised mechanical properties.

· Dies Designed Without Liquid Level Lines: Suitable for high-end packaging (e.g., cosmetic bottles, food containers) requiring smooth, defect-free surfaces. The design uses spiral flow channels, multi-hole distributors, or other flow-balancing technologies to ensure even melt distribution and avoid flow marks. Additionally, the inner wall of the die requires high polishing, and the heating system must precisely control temperature. Such dies have complex structures and high manufacturing costs but significantly improve product quality.

The key differences lie in the flow channel geometry, temperature control precision, and distributor structure. Dies without liquid level lines optimize fluid dynamics design to reduce differences in melt residence time, thereby eliminating visible defects.

4. Design Differences: With vs. Without Wall Thickness Control

Wall thickness control is a core function of blow molding dies, directly affecting product weight distribution, mechanical properties, and material utilization. The design differences between dies with and without wall thickness control are significant:

· Dies Without Wall Thickness Control: Use a fixed mandrel and die, resulting in a uniformly thick parison. The design is simple and low-cost but has limited applicability, suitable only for products with regular shapes and no eccentricity (e.g., simple round bottles). Without thickness adjustment, products may be locally too thick (wasting material) or too thin (compromising strength).

· Dies With Wall Thickness Control: Use program-controlled systems (e.g., PLC or servo-hydraulics) to real-time adjust the position of the mandrel or choker bar, changing the flow channel gap to achieve variations in parison thickness both axially and radially. For example, edges or corners of products may require increased thickness for strength, while large areas can be thinned to save material. The design must integrate sensors, actuators, and complex flow channels to ensure response speed and precision. Such dies are expensive but significantly optimize product performance and production economics.

The core difference lies in controllability and adaptability. Dies with wall thickness control are suitable for complex-shaped products (e.g., automotive fuel tanks, irregular containers), using "profiled parison" design to compensate for uneven stretching during blow molding and improve product consistency.

5. Conclusion

The design of blow molding dies is a process of balancing multiple factors, involving fluid dynamics, materials engineering, and control technology. Whether a die includes liquid level lines depends on surface quality requirements, while designs without liquid level lines achieve high-quality appearance through flow channel and temperature control optimization. Wall thickness control functionality is a hallmark of modern blow molding technology, enabling adaptability to complex product needs through adjustable mechanisms and improving production efficiency and product performance. In the future, with the development of smart manufacturing, blow molding dies will further integrate real-time monitoring and adaptive control, driving the plastic processing industry toward high precision, low cost, and sustainability.

When selecting or designing dies, companies must comprehensively consider product positioning, material characteristics, and investment budget to achieve the optimal balance between technical and economic efficiency.
