| Blow Molding Type: | |
|---|---|
| Maximum Application Size: | |
| Cooling water pressure: | |
| Clamping force: | |
| Mould Lifespan: | |
| Mold Material: | |
| Language settings: | |
| Quantity: | |

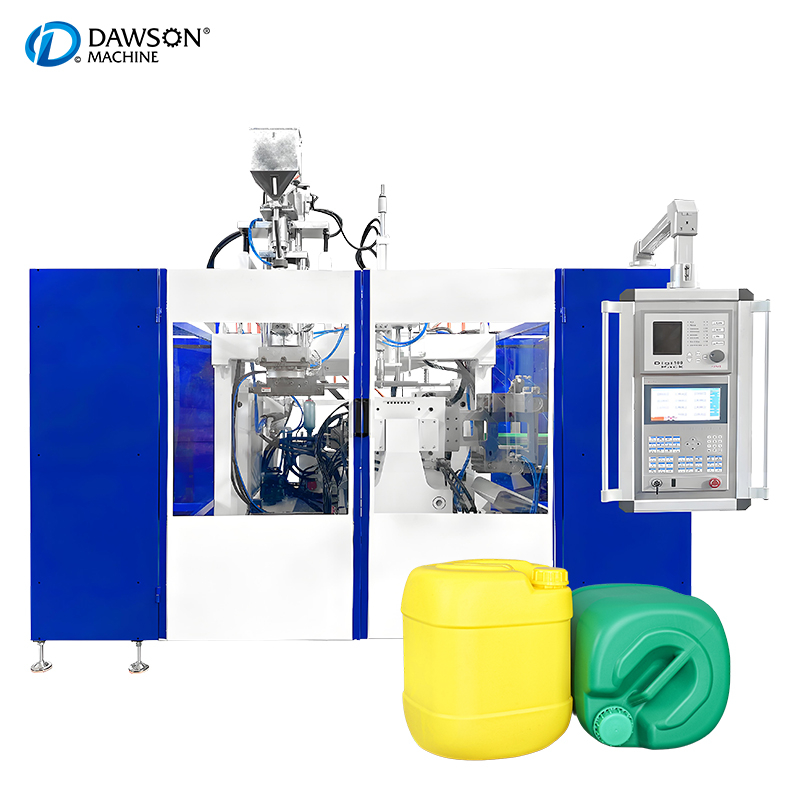

| Basic parameters | Model | DSB80-30L | DSB10011-30L |
| Suitable material | PE,PP,PVC,PS,PETG,etC | ||
| Max volume | 30L | ||
| Output capacity | Around 50 PCS/H | 80-100PCS/H | |
| Size | 3.6x2.8x2.8(M) | 4.8x4x2.8(M) | |
| Weight | 10T | 16T | |
| Plasticizion system | Summarize | High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature | |
| Reducer | Hard finishing、 High intension、 Low noise reducer | ||
| Screw | ф80mm, L/D ratio 28, 120kg/h (HDPE) 37kw | $100mm, L/D ratio 28, 200kg/h (HDPE) 55kw | |
| 38CrMOALA Cooling system available | |||
| Heating Zone | 4 | 5 | |
| Aluminum Heater, Automatic heating | |||
| Heating power | 21KW/H | 25KW/H | |
| Cooling Fan | Separate cooling system for heaters Automatic cooling | ||
Mould material P20#/S136H/Aluminium 7075#
Mould neck and middle parts are separable.
Separate cooling system for mould neck, mould body and bottom.
Min 3 million mould life.
Optional to make interchangable parts of 20L/25L/30L
Mould can be made manual deflashing or auto deflashing.
Independant cooling system for neck area
Optional to add inserts to make customer LOGOs or UN LOGOs
Other jerry cans designs optional for customer to choose
Jerry can cap mould can also be provided
DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
